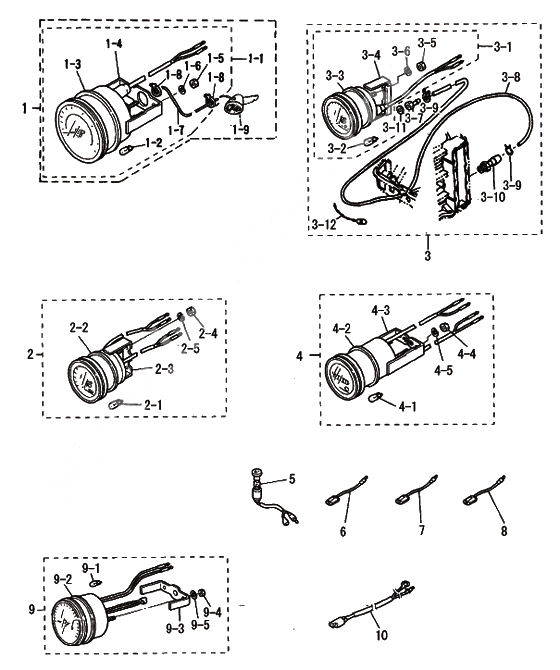

Optional parts (1) для Tohatsu MD50B (AQ) - 2006 года выпуска`
-
№АртикулНазвание
-
13E0-72644-0 Speedometer 75mph KitSpeedometer 75mph Kit
-
13E0-72522-0 Speedometer 50mph KitSpeedometer 50mph Kit
-
1-13E0-72649-0 Speedometer 75mph Kit BSpeedometer 75mph Kit B
-
1-13E0-72648-0 Speedometer 50mph Kit BSpeedometer 50mph Kit B
-
1-23B7-72659-0 Bulb, Meter 12V-1.7WBulb, Meter 12V-1.7W
-
1-33B7-72656-0 Damper, MeterDamper, Meter
-
1-43B7-72661-0 Plate, FittingPlate, Fitting
-
1-5930203-0500 NutNut
-
1-6941303-0500 Spring WasherSpring Washer
-
1-73B7-72650-0 Tube, Speedometer 6000mmTube, Speedometer 6000mm
-
1-83B7-72651-0 Band, SpeedometerBand, Speedometer
-
1-93B7-72643-0 Speedometer SenderSpeedometer Sender
-
23E0-72529-0 Voltmeter Ass'yVoltmeter Ass'y
-
2-13B7-72657-0 Bulb, Meter 12V-1.7WBulb, Meter 12V-1.7W
-
2-23B7-72655-0 Damper, MeterDamper, Meter
-
2-33B7-72662-0 Plate, FittingPlate, Fitting
-
2-4930203-0400 NutNut
-
2-5941303-0400 Spring WasherSpring Washer
-
33E0-72527-0 Water Pressure Meter KitWater Pressure Meter Kit
-
3-13E0-72598-0 Water Pressure Meter Ass'yWater Pressure Meter Ass'y
-
3-10309-01136-0 Pulse NipplePulse Nipple
-
3-11121-33159-0 Gasket 2-8-1Gasket 2-8-1
-
3-12336-76091-0 Band Battery CordBand Battery Cord
-
3-23B7-72657-0 Bulb, Meter 12V-1.7WBulb, Meter 12V-1.7W
-
3-33B7-72655-0 Damper, MeterDamper, Meter
-
3-43B7-72663-0 Plate, FittingPlate, Fitting
-
3-5930203-0500 NutNut
-
3-6941303-0500 Spring WasherSpring Washer
-
3-73B7-72641-0 Nipple, Water Pressure MeterNipple, Water Pressure Meter
-
3-898AB-5-1000 New partNew part
-
3-9338-02215-0 ClipClip
-
43E0-72524-0 Hourmeter Ass'yHourmeter Ass'y
-
4-13B7-72657-0 Bulb, Meter 12V-1.7WBulb, Meter 12V-1.7W
-
4-23B7-72655-0 Damper, MeterDamper, Meter
-
4-33B7-72664-0 Plate FittingPlate Fitting
-
4-4930203-0400 NutNut
-
4-5941303-0400 Spring WasherSpring Washer
-
5353-72521-1 Switch Meter Lamp
FOR P TYPESwitch Meter Lamp
FOR P TYPE -
6353-72546-0 Assist Cord(Red)
FOR P TYPEAssist Cord(Red)
FOR P TYPE -
7353-72547-0 Assist Cord(blue)
FOR P TYPEAssist Cord(blue)
FOR P TYPE -
8353-72548-0 Assist Cord(black)
FOR P TYPEAssist Cord(black)
FOR P TYPE -
93B7-72530-2 Tachometer Ass'yTachometer Ass'y
-
9-13B7-72659-0 Bulb, Meter 12V-1.7W
FOR F TYPEBulb, Meter 12V-1.7W
FOR F TYPE -
9-23B7-72656-0 Damper, Meter
FOR F TYPEDamper, Meter
FOR F TYPE -
9-33B7-72661-0 Plate, Fitting
FOR F TYPEPlate, Fitting
FOR F TYPE -
9-4930203-0500 Nut
FOR F TYPENut
FOR F TYPE -
9-5941303-0500 Spring Washer
FOR F TYPESpring Washer
FOR F TYPE -
103T5-72539-0 Lead Wire, Tachometer
FOR F TYPE L=2000Lead Wire, Tachometer
FOR F TYPE L=2000
