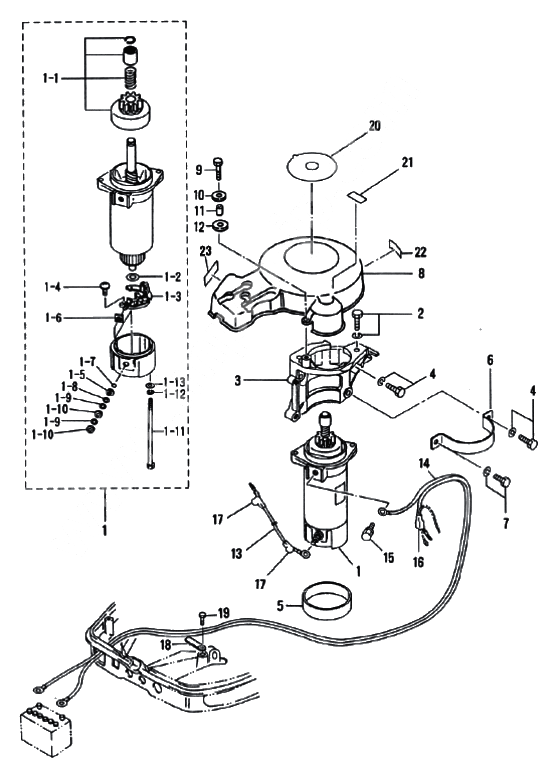

Electric parts (starter motor) для Tohatsu MD50B (AQ) - 2006 года выпуска`
-
№АртикулНазвание
-
13C8-76010-1 Starter Motor Ass'yStarter Motor Ass'y
-
1-13C8-76015-0 Pinion Ass'yPinion Ass'y
-
1-10930203-0600 NutNut
-
1-113C8-75019-0 BoltBolt
-
1-12941321-0500 Spring WasherSpring Washer
-
1-13940221-0500 WasherWasher
-
1-23C8-75015-0 WasherWasher
-
1-33C8-75014-0 Brush Holder Ass'yBrush Holder Ass'y
-
1-4921521-6408 Stud BoltStud Bolt
-
1-53C8-75016-0 BushingBushing
-
1-63C8-75017-0 BushingBushing
-
1-73C8-75018-0 O-RingO-Ring
-
1-8940103-0600 WasherWasher
-
1-9941303-0600 New partNew part
-
2910103-6825 Stud BoltStud Bolt
-
33T5B05101-0 Bracket, Starter MotorBracket, Starter Motor
-
4910103-6825 Stud BoltStud Bolt
-
53C8-76007-0 Rubber Starter MotorRubber Starter Motor
-
63C8-76009-0 Band Starter MotorBand Starter Motor
-
7910103-6820 BoltBolt
-
83T5-06301-0 Cover, Ring GearCover, Ring Gear
-
9910113-0625 BoltBolt
-
103R0-66308-0 WasherWasher
-
11353-76079-0 Collar 6.2-9-9.3Collar 6.2-9-9.3
-
123B7-06305-0 Mount Rubber, 9-16-4.3Mount Rubber, 9-16-4.3
-
133R3-76141-0 STARTER CORD
L=270STARTER CORD
L=270 -
143B7-76120-0 Battery Cord
L=3000Battery Cord
L=3000 -
15910103-6612 BoltBolt
-
163B7-76145-0 Terminal CapTerminal Cap
-
173A3-76145-0 Cap Starter TerminalCap Starter Terminal
-
18309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
19910113-0610 BoltBolt
-
203R0-72181-0 Caution Label BCaution Label B
-
213T5-72186-0 Label, PressureLabel, Pressure
-
223Y9-72026-0 Label, Spark Plug
4 011601XC~Label, Spark Plug
4 011601XC~ -
233T5-72194-0 Label, fuseLabel, fuse
