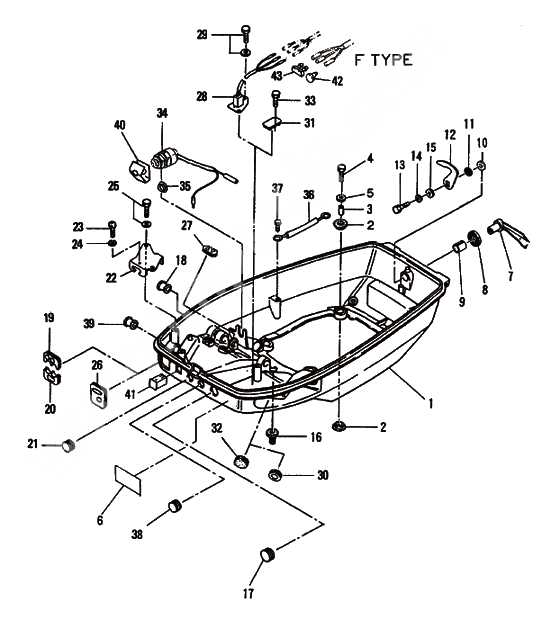

Bottom cowl (motor cover lower) для Tohatsu MD50B (AQ) - 2006 года выпуска`
-
№АртикулНазвание
-
13C8Q67100-0 Lower motor cover d40/50b (amb)
MOTOR COVER (LOWER)Lower motor cover d40/50b (amb)
MOTOR COVER (LOWER) -
2346-67113-0 Mount RubberMount Rubber
-
3346-67114-0 Spacer 6.2-9-15.7Spacer 6.2-9-15.7
-
4910113-0630 BoltBolt
-
5346-67115-0 WasherWasher
-
63T5-72057-0 Lavel, power trim & switch
FOR P TYPELavel, power trim & switch
FOR P TYPE -
73C8Q67141-0 Hook lever (amb)Hook lever (amb)
-
8338-67147-0 New partNew part
-
9369-67105-0 BushingBushing
-
103C8-67146-0 WasherWasher
-
11941403-1400 New partNew part
-
123C8-67142-1 Cover HookCover Hook
-
13910114-0612 BoltBolt
-
14941303-0600 New partNew part
-
153R0-66308-0 WasherWasher
-
16345-66226-0 Grommet, 17-3Grommet, 17-3
-
17345-76092-0 GrommetGrommet
-
183B7-01046-0 PlugPlug
-
193C8-83732-0 Grommet Remote Control Cable
FOR P TYPEGrommet Remote Control Cable
FOR P TYPE -
203C8-76116-1 Grommet Cord
FOR P TYPEGrommet Cord
FOR P TYPE -
21345-67117-0 New partNew part
-
223C8-83820-0 Bracket remote control cable
FOR P TYPEBracket remote control cable
FOR P TYPE -
233C8-83821-0 Stud Bolt
FOR P TYPEStud Bolt
FOR P TYPE -
24941303-0400 Spring Washer
FOR P TYPESpring Washer
FOR P TYPE -
25910113-5616 Bolt
FOR P TYPEBolt
FOR P TYPE -
263T5-67162-0 Grommet, Battery Cord
FOR F TYPEGrommet, Battery Cord
FOR F TYPE -
273C8-63621-0 Grommet throttle wire
FOR F TYPEGrommet throttle wire
FOR F TYPE -
273C8-63624-0 Grommet Throttle Hole
FOR P TYPEGrommet Throttle Hole
FOR P TYPE -
283T5-72613-0 Switch b ass'y, ptt
FOR P TYPESwitch b ass'y, ptt
FOR P TYPE -
29910113-5612 Bolt
FOR P TYPEBolt
FOR P TYPE -
30338-67163-0 Supporting Rubber Fuel PipeSupporting Rubber Fuel Pipe
-
313C8-72619-0 Grommet
FOR F TYPEGrommet
FOR F TYPE -
32345-67117-0 New partNew part
-
33910113-0610 Bolt
FOR F TYPEBolt
FOR F TYPE -
34398-76080-0 Neutral Switch Ass'y
FOR F TYPENeutral Switch Ass'y
FOR F TYPE -
353B7-63731-0 Washer
FOR F TYPEWasher
FOR F TYPE -
363N4-76142-0 Ground cord
L=270Ground cord
L=270 -
37910103-6612 BoltBolt
-
38345-67117-0 New partNew part
-
393B2-67187-0 Grommet Throttle Shaft
FOR P TYPEGrommet Throttle Shaft
FOR P TYPE -
40398-76083-0 Actuator Neutral Switch
FOR F TYPEActuator Neutral Switch
FOR F TYPE -
413T5-67150-0 Cap, Choke KnobCap, Choke Knob
-
423A3-76037-0 Plug B Cable Terminal
FOR F TYPEPlug B Cable Terminal
FOR F TYPE -
43353-76037-0 Plug Cable TerminalPlug Cable Terminal
