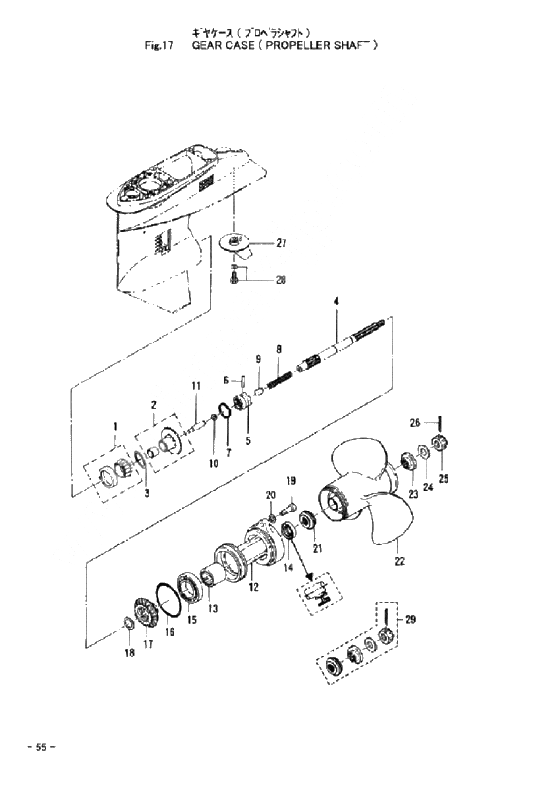

Gear case (propeller shaft) для Tohatsu MD40B - 2006 года выпуска`
-
№АртикулНазвание
-
1345-60215-0 Taper roller bearing, 32007Taper roller bearing, 32007
-
23C8-64010-1 Bevel Gear ABevel Gear A
-
3353-64036-0 Shim, 36-44-0.3Shim, 36-44-0.3
-
3353-64037-0 Shim,36-44-0.15Shim,36-44-0.15
-
3353-64038-0 Shim,36-44-0.1Shim,36-44-0.1
-
43C8-64211-0 Propeller ShaftPropeller Shaft
-
53C8-64215-2 New part
# 038130XC-New part
# 038130XC- -
63C8-64217-0 Clutch PinClutch Pin
-
73C8-64219-1 Snap, Clutch PinSnap, Clutch Pin
-
83C8-64221-0 Spring WasherSpring Washer
-
93C8-64222-0 Spring holder clutchSpring holder clutch
-
10965002-0803 Steel ball, 3/8Steel ball, 3/8
-
113C8-64223-1 Push rod, clutchPush rod, clutch
-
123C8Q60101-0 Housing propeller shaft (amb)Housing propeller shaft (amb)
-
13345-60211-0 Needle Bearing 22-30-30Needle Bearing 22-30-30
-
14334-60223-0 Oil seal, 22-36-10Oil seal, 22-36-10
-
159601-0-6007 Ball bearing, 6007Ball bearing, 6007
-
16345-60103-0 O-RingO-Ring
-
173C8-64030-0 Bevel Gear CBevel Gear C
-
18345-64032-0 WasherWasher
-
193C8-60108-0 Bolt 6-25Bolt 6-25
-
20940113-0600 WasherWasher
-
213C8-64231-0 Thrust holder propellerThrust holder propeller
-
223T5-64523-0 Propeller cs11Propeller cs11
-
22353B64104-0 Prop 70b (11.6 dia. x 12 pitch)
40B StandardProp 70b (11.6 dia. x 12 pitch)
40B Standard -
22353B64105-0 Prop 70b (11.5 dia. x 13 pitch)
50B StandardProp 70b (11.5 dia. x 13 pitch)
50B Standard -
223T5-64529-0 Propeller cs14Propeller cs14
-
223T5-64532-0 Propeller cs15Propeller cs15
-
22348W64108-0 Stop ScrewStop Screw
-
223T5-64518-0 Propeller cs9Propeller cs9
-
23348-64232-0 Stopper PropellerStopper Propeller
-
24345-64124-0 WasherWasher
-
25353-64121-0 Nut PropellerNut Propeller
-
26951503-0325 Split PinSplit Pin
-
273C8-60217-1 Trim TabTrim Tab
-
293T5-87326-0 Propeller Hardwear KitPropeller Hardwear Kit
