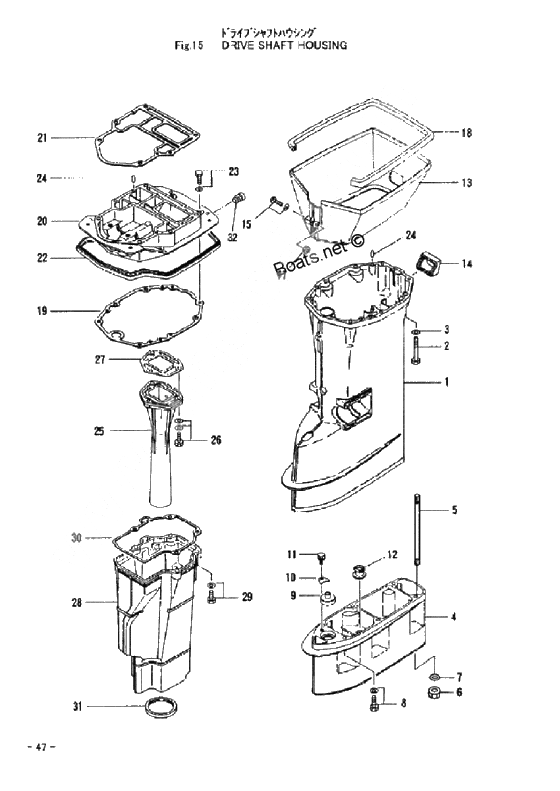

Drive shaft housing для Tohatsu MD40B - 2006 года выпуска`
-
№АртикулНазвание
-
13C8Q61192-0 Drive shaft housing l (amb)
for Transoms L" and "UL""Drive shaft housing l (amb)
for Transoms L" and "UL"" -
3C8Q61192-2 Drive shaft housing l (amb)Drive shaft housing l (amb)
-
13C8Q61191-1 Driveshaft housing s (amb)
for Transom S""Driveshaft housing s (amb)
for Transom S"" -
3C8Q61191-3 Driveshaft housing s (amb)Driveshaft housing s (amb)
-
43B7Q61110-0 Extension housing ul (amb)
for Transom LL""Extension housing ul (amb)
for Transom LL"" -
43C8Q61110-0 Extension housing xl (amb)
for Transom UL""Extension housing xl (amb)
for Transom UL"" -
5346-61111-1 Stud Bolt
for Transom LL""Stud Bolt
for Transom LL"" -
9346-66037-0 Holder Cam Rod
for Transom UL""Holder Cam Rod
for Transom UL"" -
10353-66024-0 Stopper
for Transom UL""Stopper
for Transom UL"" -
11910103-6612 BoltBolt
-
12346-65204-0 Lock Rubber Water Pipe
Water Pipe Locking RubberLock Rubber Water Pipe
Water Pipe Locking Rubber -
133C8Q61210-0 Splash pan (amb)Splash pan (amb)
-
3C8Q61210-1 Splash pan (amb)Splash pan (amb)
-
143C8-61212-0 Grommet Splash PanGrommet Splash Pan
-
17930403-0500 Nylon NutNylon Nut
-
183C8-61213-0 Seal Rubber Splash PanSeal Rubber Splash Pan
-
193C8-61012-0 Gasket drive shaft housingGasket drive shaft housing
-
203T5Q01301-0 Engine base (amb)Engine base (amb)
-
213C8-01303-1 Base gasketBase gasket
-
3C8-01303-4 Base gasketBase gasket
-
223C8-67116-0 Seal Rubber Engine BaseSeal Rubber Engine Base
-
24345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
253E3-02311-0 Exhaust PipeExhaust Pipe
-
263C8-02319-0 BoltBolt
-
273C8-02312-0 Gasket exhaust pipeGasket exhaust pipe
-
283C8-61180-0 Exhaust HousingExhaust Housing
-
293C8-61184-0 BoltBolt
-
303C8-61181-1 Exhaust Housing GasketExhaust Housing Gasket
-
3C8-61181-2 Exhaust Housing GasketExhaust Housing Gasket
-
313C8-61182-0 Grommet exhaust housingGrommet exhaust housing
-
323H6-07257-0 Exhaust PlugExhaust Plug
