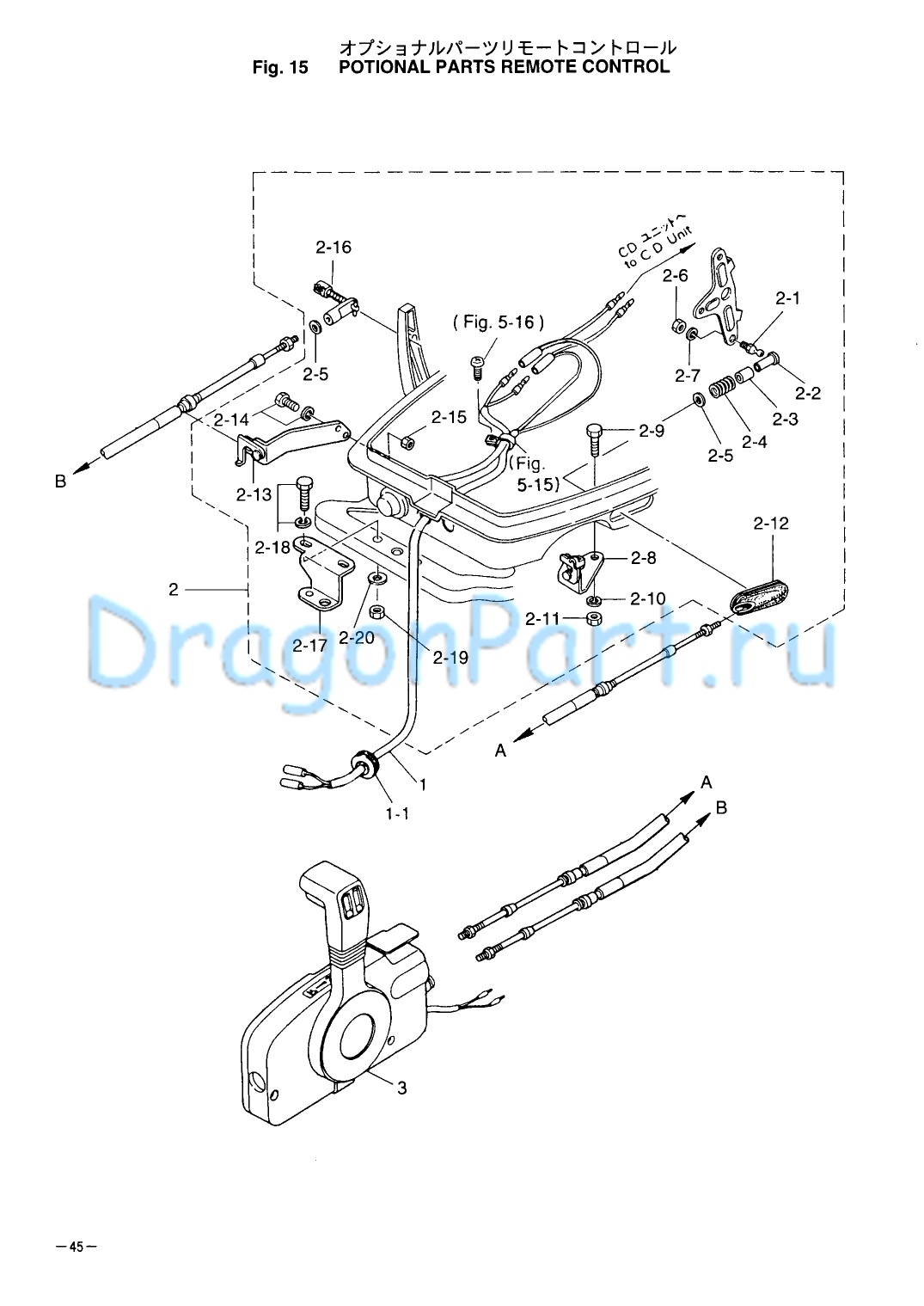

POTIONAL PARTS REMOTE CONTROL для Tohatsu M9.9D2 - 2006 года выпуска`
-
№АртикулНазвание
-
1361-83853-0 R.C. Stop Cord 3.9m (12.8feet)R.C. Stop Cord 3.9m (12.8feet)
-
1361-83858-0 R.C. Stop Cord 5.9m (19.4feet)R.C. Stop Cord 5.9m (19.4feet)
-
1-1345-76023-0 * Stop Cord Grommet* Stop Cord Grommet
-
2398-83880-1 Remote Control Fitting PartsRemote Control Fitting Parts
-
2-1345-83721-0 * Ball Joint* Ball Joint
-
2-23A1-83722-0 * Ball Joint Holder* Ball Joint Holder
-
2-3332-83723-0 * Holder Cap* Holder Cap
-
2-4332-83724-0 * Cap Spring* Cap Spring
-
2-5332-83725-0 * Washer, 5.5-14-1.2* Washer, 5.5-14-1.2
-
2-6930103-0600 * Nut
or 930113-0600* Nut
or 930113-0600 -
2-7941303-0600 * Spring Washer* Spring Washer
-
2-8350-83820-0 * Cable Clip* Cable Clip
-
2-9910103-0518 * Bolt* Bolt
-
2-10941303-0500 * Spring Washer* Spring Washer
-
2-11930103-0500 * Nut* Nut
-
2-12346-83732-0 * Throttle Cable Grommet* Throttle Cable Grommet
-
2-13350-83870-0 * Clutch Cable Clip* Clutch Cable Clip
-
2-14910103-6616 * Bolt* Bolt
-
2-15930103-0600 * Nut
or 930113-0600* Nut
or 930113-0600 -
2-163A1-83710-1 * Cable Joint Assy* Cable Joint Assy
-
2-17346-83830-1 * Steering Hook Plate* Steering Hook Plate
-
2-18910103-6830 * Bolt* Bolt
-
2-19930103-0800 * Nut
or 930113-0800* Nut
or 930113-0800 -
2-20940103-0800 * Washer
or 940113-0800* Washer
or 940113-0800 -
33B7Q84360-1 Remote Control Box (RC5D)
for MF/EF Type UNIQUERemote Control Box (RC5D)
for MF/EF Type UNIQUE -
33B7Q84350-3 Remote Control Box (RC5C)
for EP Type UNIQUERemote Control Box (RC5C)
for EP Type UNIQUE
