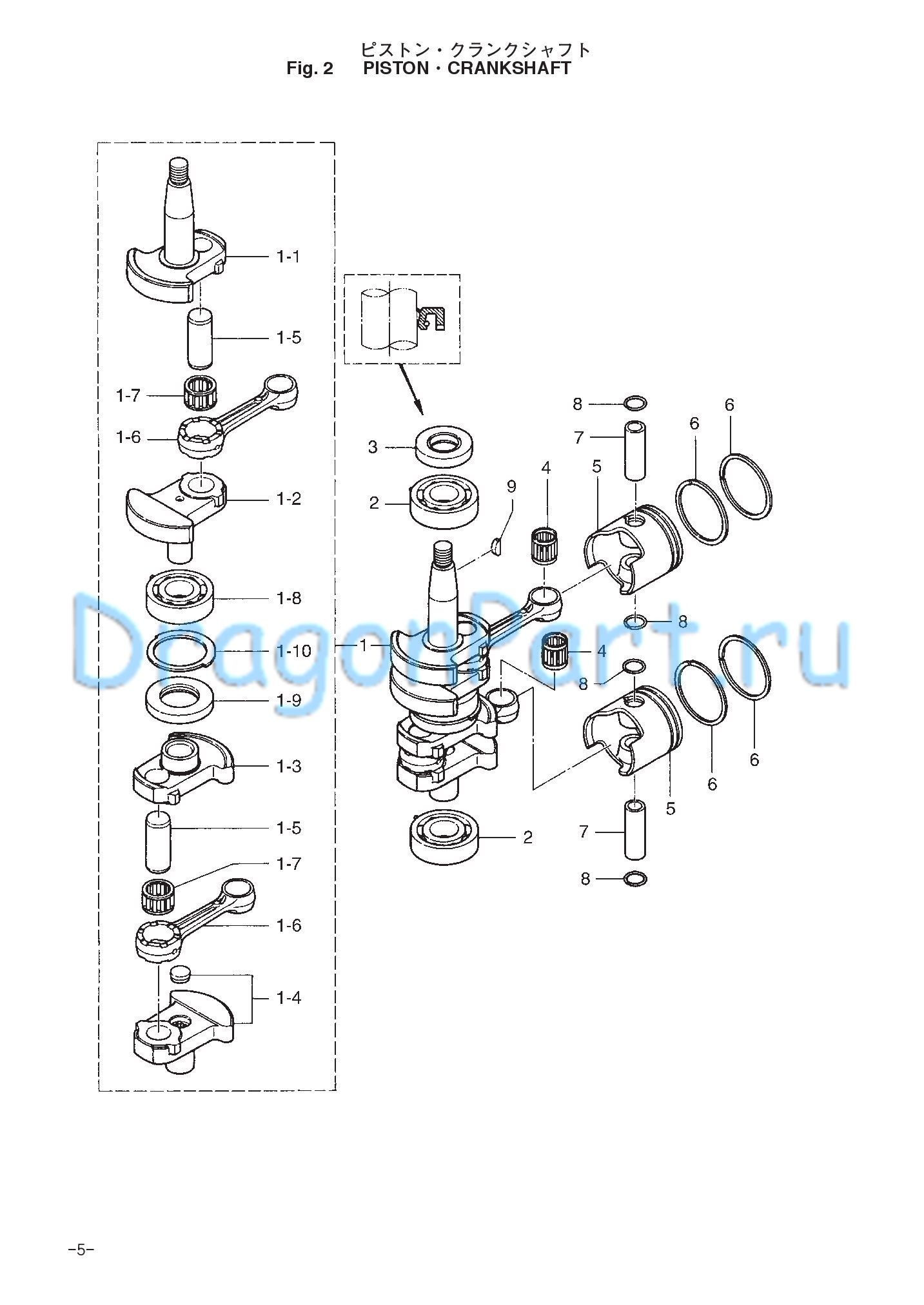

PISTON CRANK SHAFT для Tohatsu M8B - 2006 года выпуска`
-
№АртикулНазвание
-
13B2-00030-1 Crank Shaft Ass’vCrank Shaft Ass’v
-
1-13B2-00031-0 * Crank Shaft “A”* Crank Shaft “A”
-
1-23B2-00032-0 * Crank Shaft “B”* Crank Shaft “B”
-
1-33B2-00033-0 * Crank Shaft “C”* Crank Shaft “C”
-
1-43B2-00034-0 * Crank Shaft “D”* Crank Shaft “D”
-
1-53B2-00061-1 * CrankPin* CrankPin
-
1-63B2-00040-0 * Connecting Rod* Connecting Rod
-
1-73B2-00043-0 * Needle Bearing, 17-23-14* Needle Bearing, 17-23-14
-
1-89603-3-6204 * Ball Bearing, 6204* Ball Bearing, 6204
-
1-93B2-00051-0 * Oil Seal, 25-47-7* Oil Seal, 25-47-7
-
1-10369-00115-0 * Crank shaft Thrust Plate* Crank shaft Thrust Plate
-
29603-3-6204 Ball Bearing, 6204Ball Bearing, 6204
-
3101-00121-0 Oil Seal, 20-35-7Oil Seal, 20-35-7
-
4338-00042-0 Needle Bearing, 14-18-19Needle Bearing, 14-18-19
-
53B2-00001-0 Piston (Std)Piston (Std)
-
53B2-00004-0 Piston (0.5mm O/S)
OptionPiston (0.5mm O/S)
Option -
63B2-00011-0 Piston Ring (Std)Piston Ring (Std)
-
63B2-00014-0 Piston Ring (0.5mm O/S)
OptionPiston Ring (0.5mm O/S)
Option -
73B2-00021-0 Piston PinPiston Pin
-
8350-00024-1 Piston Pin ClipPiston Pin Clip
-
9338-00131-0 Magneto KeyMagneto Key
