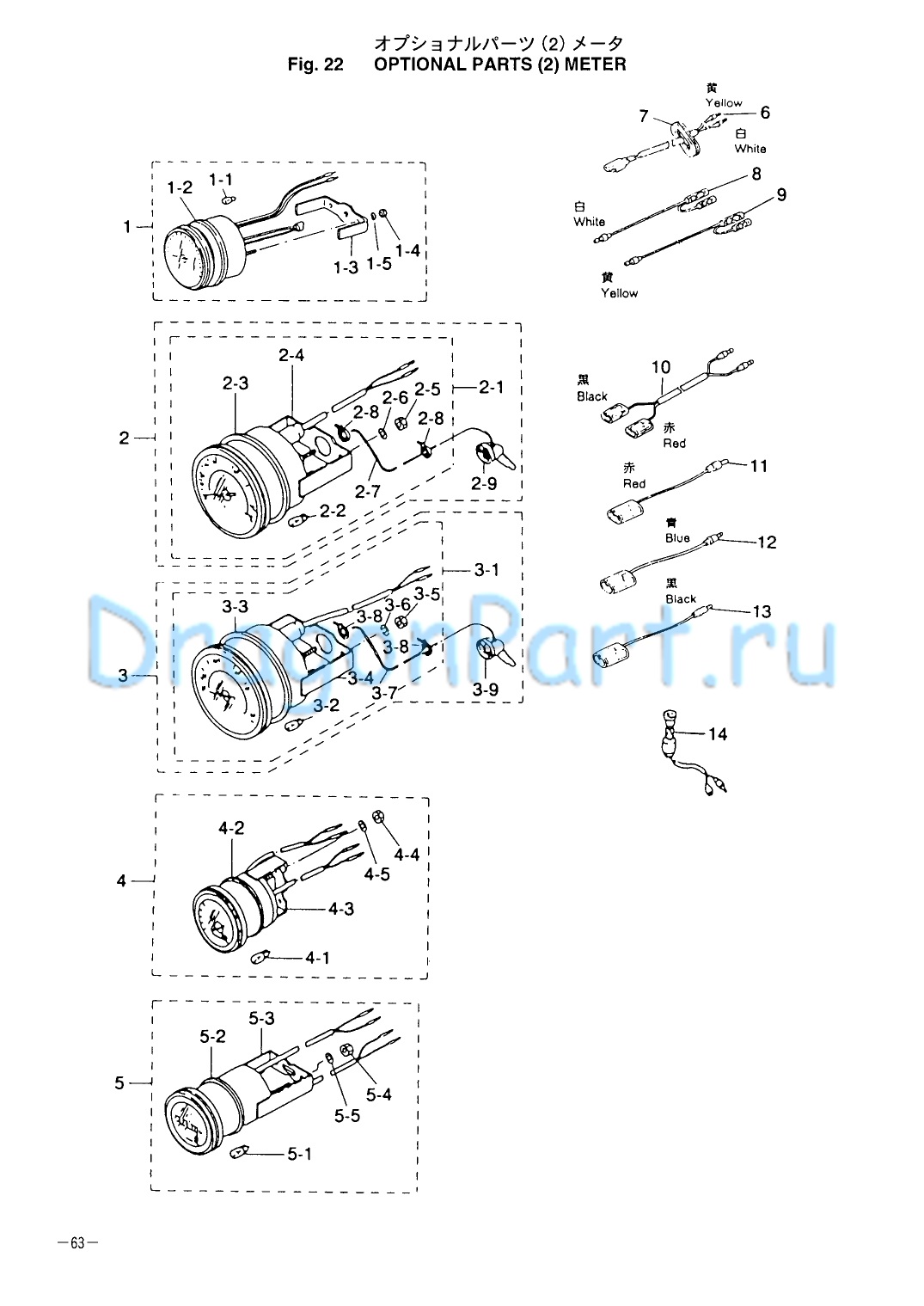

OPTIONAL PARTS (2) METER) для Tohatsu M40C - 2006 года выпуска`
-
№АртикулНазвание
-
13B7-72530-1 Tachometer (with out oil lamp)Tachometer (with out oil lamp)
-
1-13B7-72659-0 * Bulb, Meter 12V-1.7W* Bulb, Meter 12V-1.7W
-
1-23B7-72656-0 * Damper, Meter* Damper, Meter
-
1-33B7-72661-0 * Plate, Fitting* Plate, Fitting
-
1-4930203-0500 * Nut* Nut
-
1-5941303-0500 * Spring Washer* Spring Washer
-
23E0-72644-0 Speedometer 75MPH KitSpeedometer 75MPH Kit
-
2-13E0-72649-0 * Speedometer 75MPH* Speedometer 75MPH
-
2-23B7-72659-0 * Bulb, Meter 12V-1.7W* Bulb, Meter 12V-1.7W
-
2-33B7-72656-0 * Damper, Meter* Damper, Meter
-
2-43B7-72661-0 * Plate, Fitting* Plate, Fitting
-
2-5930203-0500 * Nut* Nut
-
2-6941303-0500 * Spring Washer* Spring Washer
-
2-73B7-72650-0 * Tube, Speedometer* Tube, Speedometer
-
2-83B7-72651-0 * Band, Speedometer* Band, Speedometer
-
2-93B7-72643-0 Speedometer SenderSpeedometer Sender
-
33E0-72522-0 Speedometer 50MPHSpeedometer 50MPH
-
3-13E0-72648-0 * Speedometer 50MPH* Speedometer 50MPH
-
3-23B7-72659-0 * Bulb, Meter 12V~1.7W* Bulb, Meter 12V~1.7W
-
3-33B7-72656-0 * Damper, Meter* Damper, Meter
-
3-43B7-72661-0 * Plate, Fitting* Plate, Fitting
-
3-5930203-0500 * Nut* Nut
-
3-6941303-0500 * Spring Washer* Spring Washer
-
3-73B7-72650-0 * Tube, Speedometer* Tube, Speedometer
-
3-83B7-72651-0 * Band, Speedometer* Band, Speedometer
-
3-93B7-72643-0 Speedometer SenderSpeedometer Sender
-
43E0-72529-0 VoltmeterVoltmeter
-
4-13B7-72657-0 * Bulb, Meter 12V-1.7W* Bulb, Meter 12V-1.7W
-
4-23B7-72655-0 * Damper, Meter* Damper, Meter
-
4-33B7-72662-0 * Plate, Fitting* Plate, Fitting
-
4-4930203-0400 * Nut* Nut
-
'4-5941303-0400 * Spring Washer* Spring Washer
-
53E0-72524-0 Hour-meterHour-meter
-
5-13B7-72657-0 * Bulb, Meter 12V-1.7W* Bulb, Meter 12V-1.7W
-
5-23B7-72655-0 * Damper, Meter* Damper, Meter
-
5-33B7-72664-0 * Plate, Fitting* Plate, Fitting
-
5-4930203-0400 * Nut* Nut
-
5-5941303-0400 * Spring Washer* Spring Washer
-
6361-72539-0 Lead Cable, Tachometer
L二6000Lead Cable, Tachometer
L二6000 -
7345-67169-0 Grommet, CordGrommet, Cord
-
8361-72542-0 Separate Cord, WhiteSeparate Cord, White
-
9361-72543-0 Separate Cord, YellowSeparate Cord, Yellow
-
10353-72537-0 Lead Cable, MeterLead Cable, Meter
-
11353-72546-0 Assist Cord, Red
L=200Assist Cord, Red
L=200 -
12353-72547-0 Assist Cord, Blue
L 二 200Assist Cord, Blue
L 二 200 -
13353-72548-0 Assist Cord, Black
L=200Assist Cord, Black
L=200 -
14353-72521-1 Switch, Meter LampSwitch, Meter Lamp
