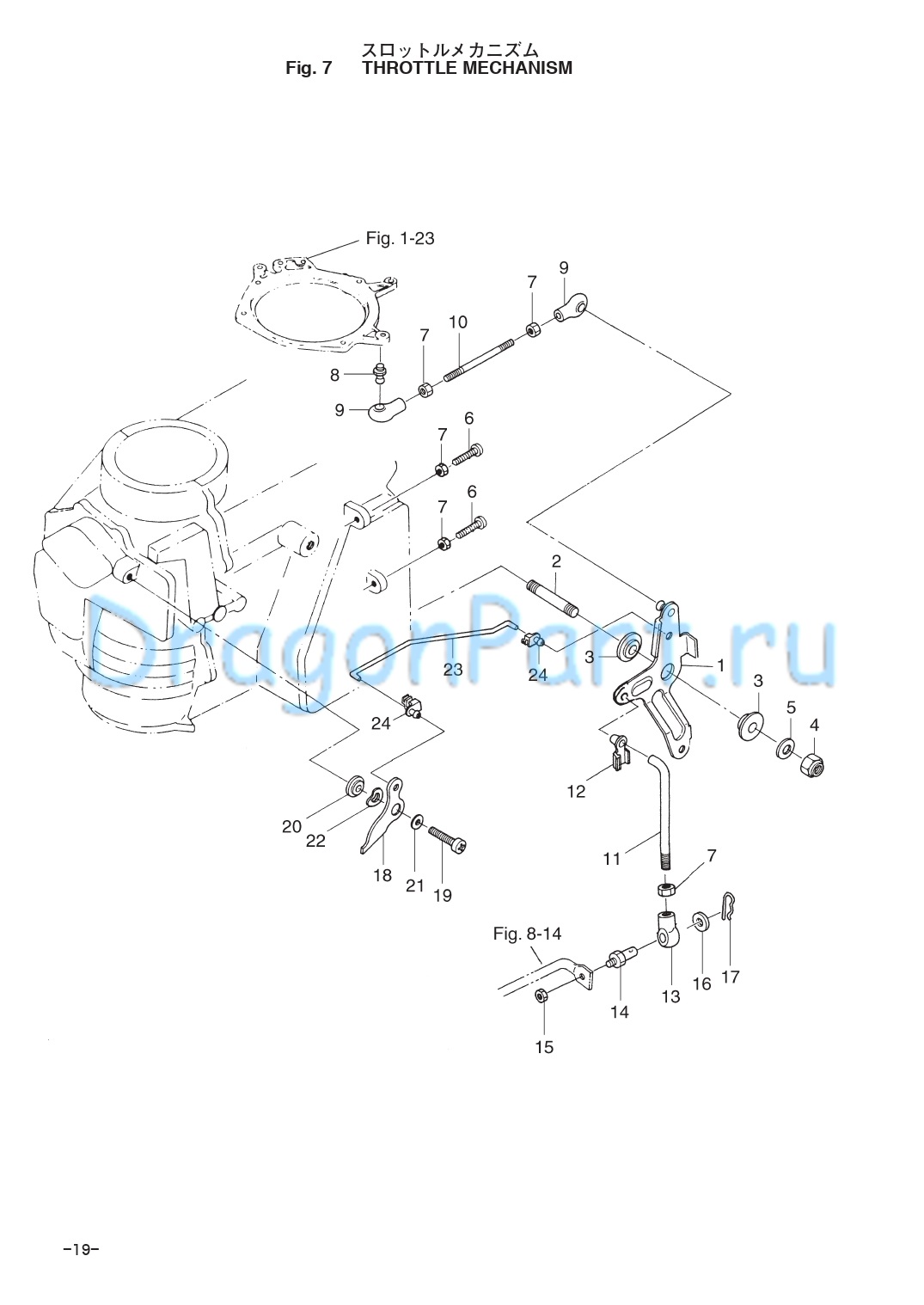

THROTTLE MECHANISM для Tohatsu M30A4 - 2006 года выпуска`
-
№АртикулНазвание
-
13P0-63711-0 Advancer Arm
30A4# 35175〜 25C3 # 50039〜Advancer Arm
30A4# 35175〜 25C3 # 50039〜 -
2915221-0823 Stud BoltStud Bolt
-
3345-63713-0 Bushing, 8-14-4Bushing, 8-14-4
-
4930403-0800 Nylon Nut, 8P-1.25Nylon Nut, 8P-1.25
-
53P0-66233-0 Washer, 8.1-16-1.5
or 334-66233-0Washer, 8.1-16-1.5
or 334-66233-0 -
6921503-0525 ScrewScrew
-
7930103-0500 NutNut
-
8346-05228-1 Ball Joint BBall Joint B
-
93B7-05243-0 Ball Joint Connector C”Ball Joint Connector C”
-
10350-63717-1 Link Rod, 5-50L
30A4# 35175〜 25C3 # 50039〜Link Rod, 5-50L
30A4# 35175〜 25C3 # 50039〜 -
11348-63715-1 Link Rod, 5-75L
30A4# 35175〜 25C3 # 50039〜Link Rod, 5-75L
30A4# 35175〜 25C3 # 50039〜 -
123B7-63733-0 Rod Snap, 5-3Rod Snap, 5-3
-
13346-05234-0 05 Rod Joint05 Rod Joint
-
14353-83728-1 Cable PinCable Pin
-
15930103-0600 NutNut
-
163AA-83719-0 Washer, 8.5-18-1.6
or 353-83719-0Washer, 8.5-18-1.6
or 353-83719-0 -
17951603-0800 Snap Pin, d二8Snap Pin, d二8
-
183P0-63718-0 Throttle Cam
30A4# 35175〜 25C3 # 50039〜Throttle Cam
30A4# 35175〜 25C3 # 50039〜 -
19921503-0616 ScrewScrew
-
20346-63721-0 Bushing, 6.2-16-5Bushing, 6.2-16-5
-
213R0-66308-0 Washer, 6-16-1.5
or 3C8-66308-0Washer, 6-16-1.5
or 3C8-66308-0 -
22941403-1000 Wave Washer, d二10Wave Washer, d二10
-
23346-63716-1 Throttle Link RodThrottle Link Rod
-
24345-05223-1 Rod Snap, 3.5-2Rod Snap, 3.5-2
-
13P0-63711-0 Advancer Arm
30A4# 35175〜 25C3 # 50039〜Advancer Arm
30A4# 35175〜 25C3 # 50039〜 -
2915221-0823 Stud BoltStud Bolt
-
3345-63713-0 Bushing, 8-14-4Bushing, 8-14-4
-
4930403-0800 Nylon Nut, 8P-1.25Nylon Nut, 8P-1.25
-
53P0-66233-0 Washer, 8.1-16-1.5
or 334-66233-0Washer, 8.1-16-1.5
or 334-66233-0 -
6921503-0525 ScrewScrew
-
7930103-0500 NutNut
-
8346-05228-1 Ball Joint BBall Joint B
-
93B7-05243-0 Ball Joint Connector C”Ball Joint Connector C”
-
10350-63717-1 Link Rod, 5-50L
30A4# 35175〜 25C3 # 50039〜Link Rod, 5-50L
30A4# 35175〜 25C3 # 50039〜 -
11348-63715-1 Link Rod, 5-75L
30A4# 35175〜 25C3 # 50039〜Link Rod, 5-75L
30A4# 35175〜 25C3 # 50039〜 -
123B7-63733-0 Rod Snap, 5-3Rod Snap, 5-3
-
13346-05234-0 05 Rod Joint05 Rod Joint
-
14353-83728-1 Cable PinCable Pin
-
15930103-0600 NutNut
-
163AA-83719-0 Washer, 8.5-18-1.6
or 353-83719-0Washer, 8.5-18-1.6
or 353-83719-0 -
17951603-0800 Snap Pin, d二8Snap Pin, d二8
-
183P0-63718-0 Throttle Cam
30A4# 35175〜 25C3 # 50039〜Throttle Cam
30A4# 35175〜 25C3 # 50039〜 -
19921503-0616 ScrewScrew
-
20346-63721-0 Bushing, 6.2-16-5Bushing, 6.2-16-5
-
213R0-66308-0 Washer, 6-16-1.5
or 3C8-66308-0Washer, 6-16-1.5
or 3C8-66308-0 -
22941403-1000 Wave Washer, d二10Wave Washer, d二10
-
23346-63716-1 Throttle Link RodThrottle Link Rod
-
24345-05223-1 Rod Snap, 3.5-2Rod Snap, 3.5-2
