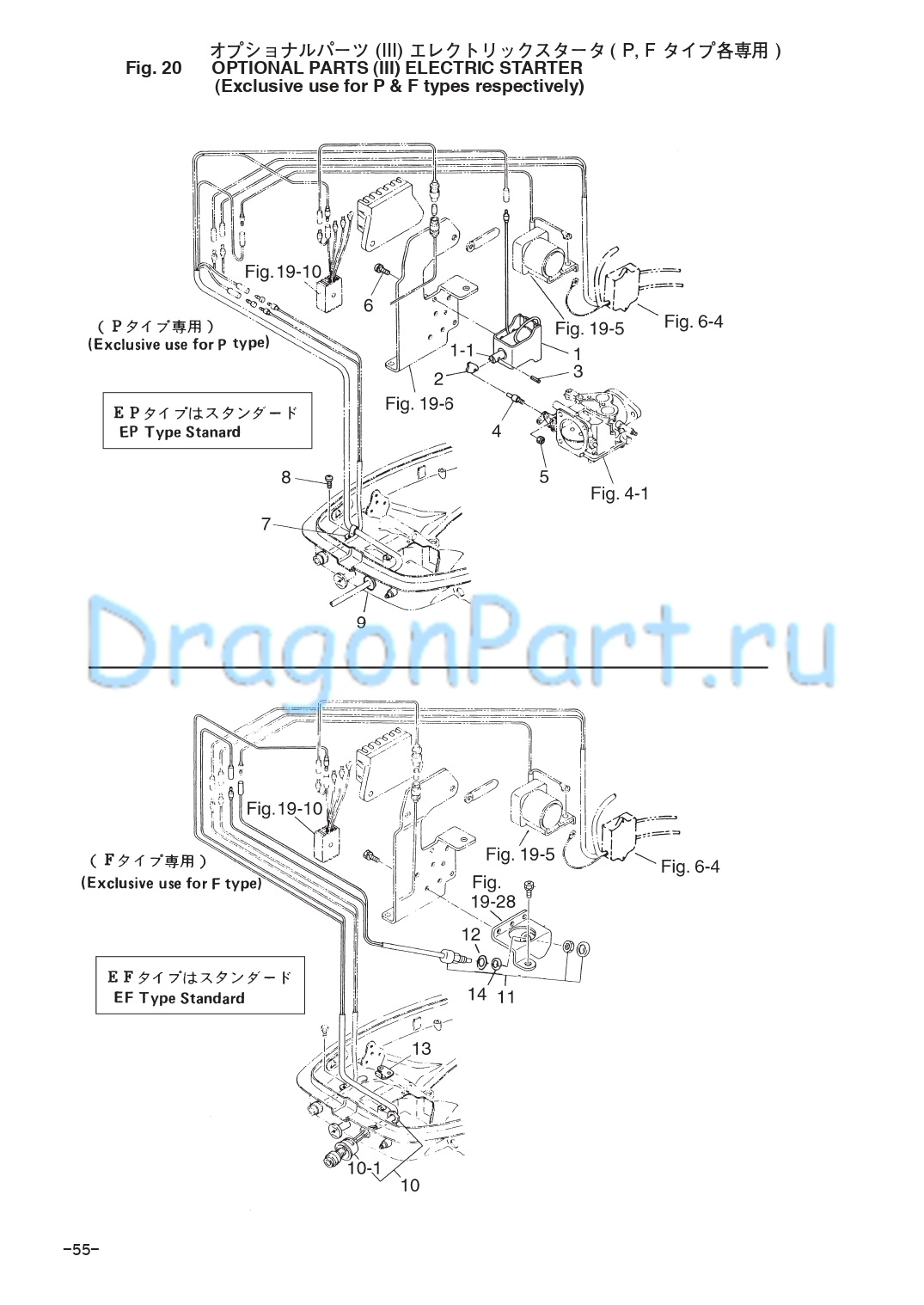

OPTIONAL PARTS (III) ELECTRIC STARTER для Tohatsu M25C3 - 2006 года выпуска`
-
№АртикулНазвание
-
1361-76050-0 Choke SolenoidChoke Solenoid
-
1-1361-76073-0 * Choke Solenoid Plunger* Choke Solenoid Plunger
-
2346-76057-0 Choke Solenoid HookChoke Solenoid Hook
-
3951403-0312 Spring Pin, 3-12Spring Pin, 3-12
-
4346-76072-1 Chock Shaft RodChock Shaft Rod
-
5930403-0400 Nylon Nut, 4P-0.7Nylon Nut, 4P-0.7
-
6921503-6408 ScrewScrew
-
7336-06973-0 Clamp, 6-9.5LClamp, 6-9.5L
-
8921503-0612 Screw
or 921513-0612Screw
or 921513-0612 -
9345-76023-0 Grommet, 22-2.5Grommet, 22-2.5
-
10361-76026-0 Main SwitchMain Switch
-
10-1346-76039-1 * Main Switch Protector* Main Switch Protector
-
11361-76080-0 Neutral SwitchNeutral Switch
-
123B7-63731-0 Washer, 12.5-24-1Washer, 12.5-24-1
-
133A1-76082-0 Neutral Switch Operating Lever
Neutral Switch Plate,Neutral Switch Operating Lever
Neutral Switch Plate, -
143M4-76084-0 Neutral Switch SpacerNeutral Switch Spacer
