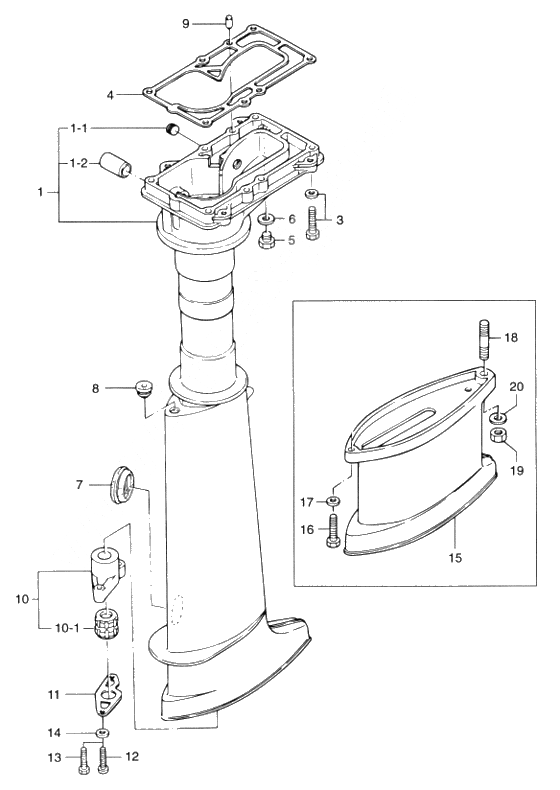

Drive shaft housing для Tohatsu MFS6B - 2005 года выпуска`
-
№АртикулНазвание
-
13H6Q61020-0 Drive shaft housing s (amb)
FOR TRANSOM SDrive shaft housing s (amb)
FOR TRANSOM S -
3H6Q61020-2 Drive shaft housing s (amb)Drive shaft housing s (amb)
-
13H6Q61030-1 Drive shaft housing l (amb)
FOR TRANSOM LDrive shaft housing l (amb)
FOR TRANSOM L -
3H6Q61030-4 Drive shaft housing l (amb)Drive shaft housing l (amb)
-
1-13H6-07257-0 Exhaust PlugExhaust Plug
-
1-2301-61021-0 Bushing Shift LeverBushing Shift Lever
-
3910113-5630 BoltBolt
-
43H6-61012-0 Gasket,Drive Shaft HousingGasket,Drive Shaft Housing
-
5910613-0808 BoltBolt
-
6332-60006-0 Gasket (8.1x15.1)Gasket (8.1x15.1)
-
7369-61016-0 Grommet Drive Shaft HousingGrommet Drive Shaft Housing
-
8369-66043-1 Grommet Cam RodGrommet Cam Rod
-
9345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
10369-64331-2 Drive shaft bushing assy
FOR TRANSOM LDrive shaft bushing assy
FOR TRANSOM L -
103AS-64331-0 Drive shaft bushing assy (amb)
FOR TRANSOM ULDrive shaft bushing assy (amb)
FOR TRANSOM UL -
10-1369-60003-0 Bushing drive shaft
FOR TRANSOM LBushing drive shaft
FOR TRANSOM L -
10-13AS-60003-0 Drive shaft bushing
FOR TRANSOM ULDrive shaft bushing
FOR TRANSOM UL -
11369-64332-0 Stopper drive shaft bushingStopper drive shaft bushing
-
12921513-0510 Stud Bolt
FOR TRANSOM SStud Bolt
FOR TRANSOM S -
133AS-02420-0 Screw
FOR TRANSOM L ULScrew
FOR TRANSOM L UL -
3H6-64333-1 ScrewScrew
-
14940103-0500 WasherWasher
-
15369Q61110-1 Extension housing ul (amb)
FOR TRANSOM ULExtension housing ul (amb)
FOR TRANSOM UL -
16916113-0625 Bolt
FOR TRANSOM ULBolt
FOR TRANSOM UL -
17940113-0600 Washer
FOR TRANSOM ULWasher
FOR TRANSOM UL -
18915213-0825 Stud Bolt
FOR TRANSOM ULStud Bolt
FOR TRANSOM UL -
19930113-0800 Nut
FOR TRANSOM ULNut
FOR TRANSOM UL -
20940113-0800 Washer
FOR TRANSOM ULWasher
FOR TRANSOM UL
