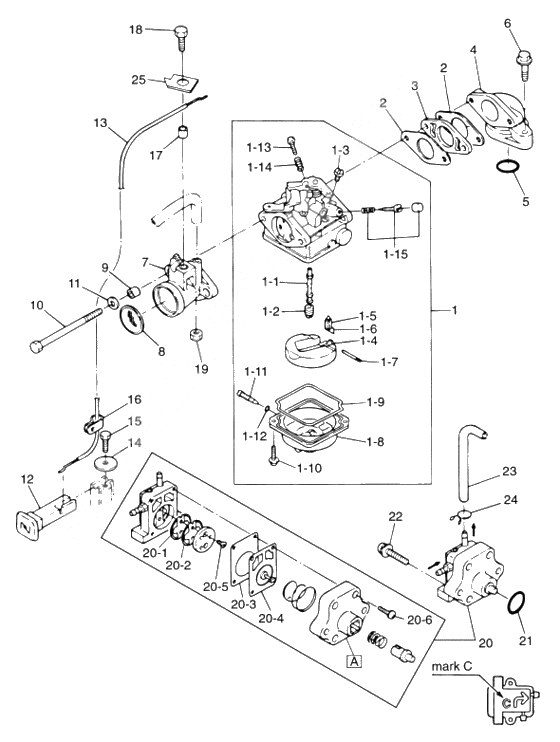

Carburetor & fuel pump для Tohatsu MFS6B - 2005 года выпуска`
-
№АртикулНазвание
-
13AU-03200-0 Carburetor mfs /nsf6b
F6B ONLY #023742XE~ 3AUACarburetor mfs /nsf6b
F6B ONLY #023742XE~ 3AUA -
13R4-03200-0 Carburetor ass'y
F6A2 ONLY ~#020184XE 3R4ACarburetor ass'y
F6A2 ONLY ~#020184XE 3R4A -
1-13AU-03252-0 Main nozzle f6b
F6B ONLY #023742XE~Main nozzle f6b
F6B ONLY #023742XE~ -
1-13R4-03252-0 MAIN NOZZLE(6A)
F6A2 ONLY ~#020184XEMAIN NOZZLE(6A)
F6A2 ONLY ~#020184XE -
1-10922503-6412 Stud BoltStud Bolt
-
1-113H6-03292-0 Drain ScrewDrain Screw
-
1-123H6-03293-0 O-ring,drain ScrewO-ring,drain Screw
-
1-133H6-03265-0 Stop ScrewStop Screw
-
1-143H6-03267-0 Spring,stop ScrewSpring,stop Screw
-
1-153AS-03266-0 Pilot screw set
#023742XE~ 4B/5B/6B~Pilot screw set
#023742XE~ 4B/5B/6B~ -
1-153H6-03266-0 Pilot screw set
~#020184XE ~4A2/5A2/6A2Pilot screw set
~#020184XE ~4A2/5A2/6A2 -
1-23AU-04468-0 Main jet #68 f3.5a/b/6b
F6B ONLY #023742XE~Main jet #68 f3.5a/b/6b
F6B ONLY #023742XE~ -
1-23R4-03251-0 Main jet #75
F6A2 ONLY ~#020184XEMain jet #75
F6A2 ONLY ~#020184XE -
1-33R1-03254-0 Pilot Jet #38Pilot Jet #38
-
1-33R4-03254-0 Pilot jet #45
F6A2 ONLY ~#020184XEPilot jet #45
F6A2 ONLY ~#020184XE -
1-43H6-03231-0 FloatFloat
-
1-53H6-03240-0 Float ValveFloat Valve
-
1-63H6-03244-0 ClipClip
-
1-73H6-03232-0 Aym Pin, FloatAym Pin, Float
-
1-83H6-03221-0 Float ChamberFloat Chamber
-
1-93H6-03222-0 Gasket,float ChamberGasket,float Chamber
-
23H6-02011-0 Gasket, carburetorGasket, carburetor
-
33H6-03952-1 InsulatorInsulator
-
53H6-02104-0 O-RingO-Ring
-
6910124-5625 Bolt
OR 910114-5625Bolt
OR 910114-5625 -
73H6-02411-0 Air SilencerAir Silencer
-
83H6-02603-0 Flam TrapFlam Trap
-
93A0-76079-0 Collar, 6.2-9-7.5Collar, 6.2-9-7.5
-
10916481-0685 BoltBolt
-
11940113-0600 Washer
OR 940103-0600Washer
OR 940103-0600 -
123H6-67151-0 Choke RodChoke Rod
-
133H6-67192-0 Wire,choke linkWire,choke link
-
14346-67115-0 WasherWasher
-
15910113-0612 Bolt
OR 910103-0612Bolt
OR 910103-0612 -
16345-06915-0 Clamp 6.5-14Clamp 6.5-14
-
173H6-76079-0 Collar 6.2-9-7Collar 6.2-9-7
-
18910113-0616 Bolt
OR 910103-0616Bolt
OR 910103-0616 -
19930113-0600 Nut
OR 910103-0600Nut
OR 910103-0600 -
203H6-04000-3 Fuel Pump Ass'y
MARK C #005816XD~Fuel Pump Ass'y
MARK C #005816XD~ -
20-13H6-04014-0 Check Valve
BLACKCheck Valve
BLACK -
20-23H6-04044-0 Check Valve
WHITECheck Valve
WHITE -
20-33H6-04028-0 O-RingO-Ring
-
20-43H6-04005-0 DiaphragmDiaphragm
-
20-5921603-0308 Stud BoltStud Bolt
-
20-6922503-6418 Stud BoltStud Bolt
-
213H6-07422-0 New partNew part
-
22921503-7630 Stud BoltStud Bolt
-
233H6-02204-0 Fuel pipe,4.5l-115Fuel pipe,4.5l-115
-
24338-02215-0 ClipClip
-
253H6-63505-0 Holder, CableHolder, Cable
