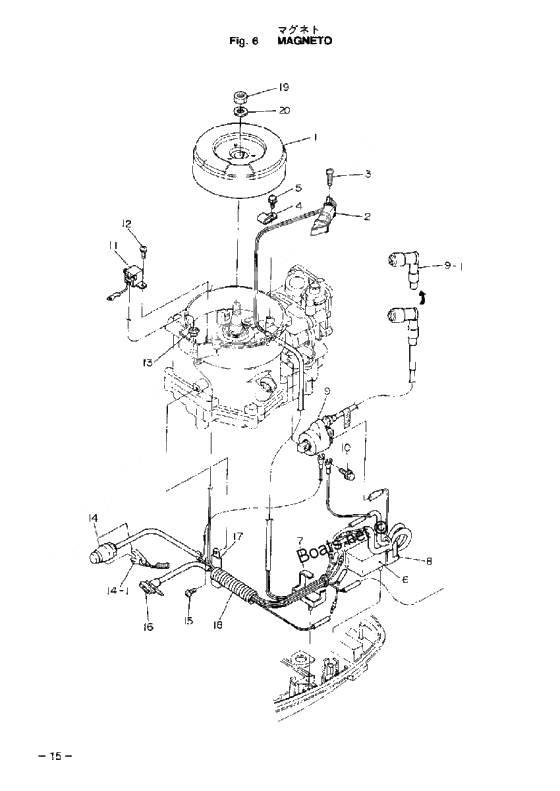

Magneto для Tohatsu MFS5A2 - MFS5B года выпуска`
-
№АртикулНазвание
-
0-13H6-06921-0 Plug capPlug cap
-
3H6-06999-0 Plug capPlug cap
-
13R1-06001-0 Flywheel cup(5a new)
FF51-1Flywheel cup(5a new)
FF51-1 -
23H6-06021-0 Exciter coilExciter coil
-
2940121-1200 WasherWasher
-
3921521-6520 Stud BoltStud Bolt
-
4369-06915-0 ClampClamp
-
5921521-6408 Stud BoltStud Bolt
-
63R1-06060-1 C.d.uunit(5a new)
CU2568C.d.uunit(5a new)
CU2568 -
73H6-06907-0 Damper Rubber BDamper Rubber B
-
83H6-06906-0 Damper rubber aDamper rubber a
-
93H6-06050-0 Ignition CoilIgnition Coil
-
113H6-06908-0 Пульсерная катушка №Пульсерная катушка №
-
12921521-6512 Stud BoltStud Bolt
-
13369-06908-0 Grommet pulser coilGrommet pulser coil
-
143H6-06870-0 Stop switch ass'yStop switch ass'y
-
14-1353-06821-0 Lock, lanyard stop switchLock, lanyard stop switch
-
15921503-0612 Stud BoltStud Bolt
-
163H6-71040-0 Warning lamp ass'yWarning lamp ass'y
-
173T4-06972-0 Плата струбциныПлата струбцины
-
183H6-06133-0 Protector,wire HarnessProtector,wire Harness
-
19369-00132-0 Nut MagnetoNut Magneto
-
20940121-1200 WasherWasher
