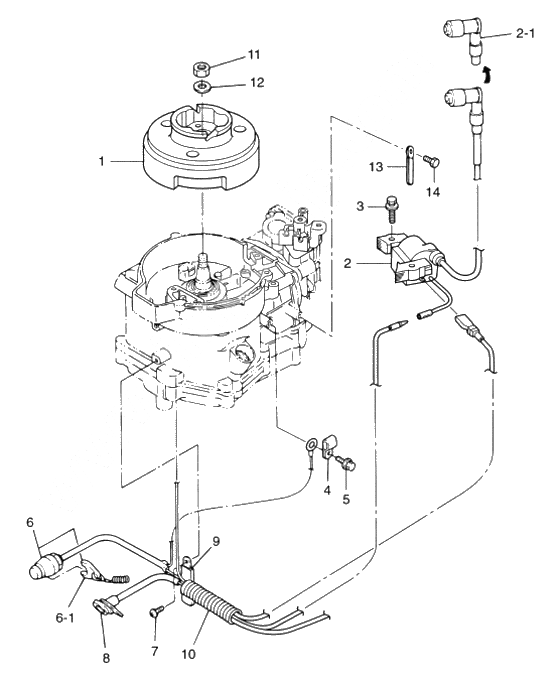

Magneto (new) для Tohatsu MFS4B - 2005 года выпуска`

№

Артикул

Название
1

3AS-06009-0 Flywheel w/o alternator b models
FOR WITH OUT ALTERNATOR F6B/5B/4B # 023742XE~

Flywheel w/o alternator b models
FOR WITH OUT ALTERNATOR F6B/5B/4B # 023742XE~

16 230 ₽
2

3AS-06047-0 Igniter b models
F6B/5B/4B #020184XE~

Igniter b models
F6B/5B/4B #020184XE~

16 530 ₽
3AS-06041-0 Igniter b models

Igniter b models

26 730 ₽
2-1

3H6-06999-0 Plug Cap (Registance)
OLD PART NO. 3H6-06921-0

Plug Cap (Registance)
OLD PART NO. 3H6-06921-0

3 710 ₽
3

910103-5630 Bolt

Bolt

170 ₽
4

345-06915-0 Clamp 6.5-14

Clamp 6.5-14

370 ₽
5

910103-0612 New part

New part

120 ₽
6

3AS-06870-0 Stop switch assy
#020184XE~ F6B/5B/4B

Stop switch assy
#020184XE~ F6B/5B/4B

3 330 ₽
3GR-06870-0 Stop switch assy

Stop switch assy

4 580 ₽
6-1

353-06821-0 Lock, lanyard stop switch

Lock, lanyard stop switch

1 340 ₽
7

921503-0612 Stud Bolt

Stud Bolt

140 ₽
8

3H6-71040-0 Warning lamp ass'y

Warning lamp ass'y

2 180 ₽
9

398-06972-0 Clamp,6.5-67P

Clamp,6.5-67P

200 ₽
10

3H6-06133-0 Protector,wire Harness

Protector,wire Harness

340 ₽
11

369-00132-0 Nut Magneto

Nut Magneto

290 ₽
12

940121-1200 Washer

Washer

230 ₽
13

309-06972-0 Clamp,6.5-47.5P

Clamp,6.5-47.5P

190 ₽
14

910103-5612 Bolt

Bolt

140 ₽
