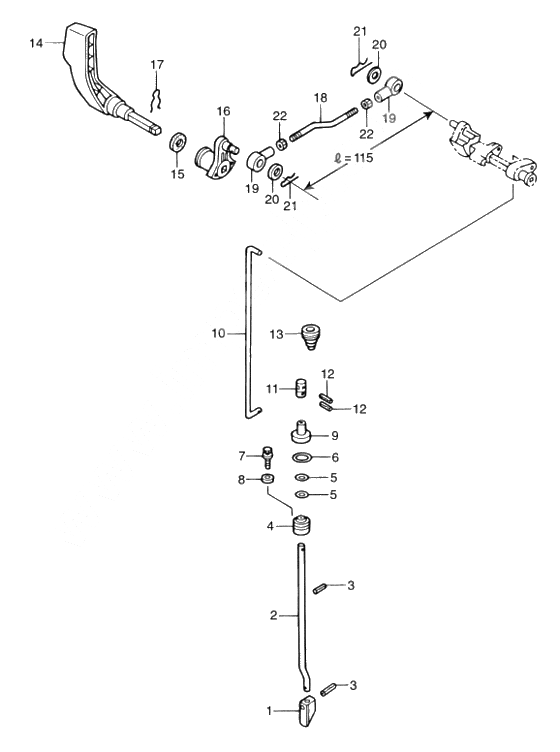

Shift & cam rod для Tohatsu MFS30B - 2005 года выпуска`
-
№АртикулНазвание
-
13AC-66011-0 Clutch CamClutch Cam
-
3AC-66011-1 Clutch CamClutch Cam
-
23R0-66012-0 Cam rod s""
FOR TRANSOM SCam rod s""
FOR TRANSOM S -
23R0-66013-0 Cam rod l""
FOR TRANSOM LCam rod l""
FOR TRANSOM L -
23R0-66014-0 Cam Rod UL""
FOR TRANSOM ULCam Rod UL""
FOR TRANSOM UL -
3951407-0312 Spring WasherSpring Washer
-
43R0-66031-0 Bushing,Cam RodBushing,Cam Rod
-
5332-66021-0 O-RingO-Ring
-
63C8-66032-0 O-RingO-Ring
-
7910113-5612 BoltBolt
-
83R0-66308-0 WasherWasher
-
9346-66037-0 Holder Cam Rod
FOR TRANSOM ULHolder Cam Rod
FOR TRANSOM UL -
103R0-66211-0 Shift RodShift Rod
-
113R0-66241-0 Joint Shift RodJoint Shift Rod
-
12951403-0312 Spring WasherSpring Washer
-
13345-66226-0 Grommet, 17-3
FOR MF & EFGrommet, 17-3
FOR MF & EF -
143R0-66110-0 Shift Lever
FOR MF & EFShift Lever
FOR MF & EF -
15338-67147-0 New part
FOR MF & EFNew part
FOR MF & EF -
163R0-66128-0 Shift Arm B
FOR MF & EFShift Arm B
FOR MF & EF -
17951703-0800 Snap Retainer
FOR MF & EFSnap Retainer
FOR MF & EF -
183R0-66134-0 Rod Shift Lever
FOR MF & EFRod Shift Lever
FOR MF & EF -
193R0-83715-0 Cable Joint
FOR MF & EFCable Joint
FOR MF & EF -
203AA-83719-0 Washer
OR 353-83719-0 FOR MF & EFWasher
OR 353-83719-0 FOR MF & EF -
21951603-0800 R-Pin
FOR MF & EFR-Pin
FOR MF & EF -
22930103-0500 Nut
FOR MF & EFNut
FOR MF & EF
