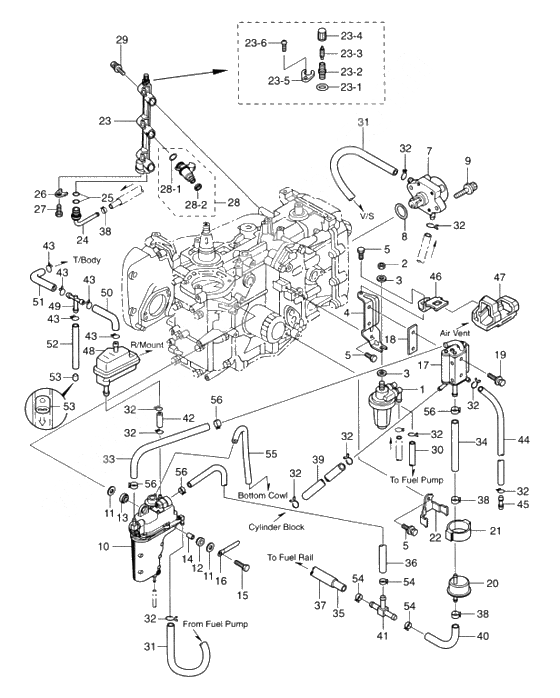

Fuel pump fuel rail & vapor separator для Tohatsu MFS30B - 2005 года выпуска`
-
№АртикулНазвание
-
13AC-02230-0 Fuel Filter Ass'y
SEE DETAILFuel Filter Ass'y
SEE DETAIL -
3AD-02230-0 Fuel Filter Ass'yFuel Filter Ass'y
-
2930113-0800 NutNut
-
3940113-0800 WasherWasher
-
43AC-02239-0 PlatePlate
-
5910113-5616 BoltBolt
-
73H8-04000-1 Fuel Pump Ass'yFuel Pump Ass'y
-
9910113-5625 BoltBolt
-
103AC-10150-0 Vapor separator
SEE DETAILVapor separator
SEE DETAIL -
11346-67115-0 WasherWasher
-
12346-67113-0 Mount RubberMount Rubber
-
133B7-06920-0 Mount Rubber, 8.5-14-2.5Mount Rubber, 8.5-14-2.5
-
14346-67114-0 Spacer 6.2-9-15.7Spacer 6.2-9-15.7
-
15910113-0630 BoltBolt
-
163T4-06972-0 Плата струбциныПлата струбцины
-
173AC-10175-0 Fuel cooler
SEE DETAILFuel cooler
SEE DETAIL -
183AC-10019-0 Gasket fuel coolerGasket fuel cooler
-
19910113-5635 BoltBolt
-
203ACB10143-0 Fuel FilterFuel Filter
-
213AC-10145-0 Rubber mount fuel filterRubber mount fuel filter
-
223AC-10144-0 Band fuel filterBand fuel filter
-
233AC-10201-0 Fuel rail assyFuel rail assy
-
3AC-10200-0 Fuel rail assyFuel rail assy
-
23-13AC-10162-0 O-RingO-Ring
-
23-23AC-77367-0 JointJoint
-
23-33AC-10098-0 Valve assyValve assy
-
23-43AC-10099-0 CapCap
-
23-53AC-10169-0 PlatePlate
-
23-6921503-0410 Stud BoltStud Bolt
-
243AC-10161-0 NippleNipple
-
253T5-10162-0 O-RingO-Ring
-
263T5-10169-0 Plate, NipplePlate, Nipple
-
27910113-5616 BoltBolt
-
283AC-10300-0 Fuel InjectorFuel Injector
-
3AC-10300-1 Fuel InjectorFuel Injector
-
28-13AC-10304-0 O-RingO-Ring
-
28-23AC-10303-0 O-RingO-Ring
-
29910113-5625 BoltBolt
-
3098AB-5-1000 New part
F/FILTER - F/PUMPNew part
F/FILTER - F/PUMP -
3198AB-5-1000 New part
F/PUMP - VAPOR SEPARATORNew part
F/PUMP - VAPOR SEPARATOR -
32338-02215-0 ClipClip
-
333AD-02204-0 Fuel hose
VAPOR SEPARATOR - F/COOLERFuel hose
VAPOR SEPARATOR - F/COOLER -
343AC-02204-0 Fuel hose
F/COOLER - H/P/F/FILTERFuel hose
F/COOLER - H/P/F/FILTER -
353AC-02212-0 Fuel hose
T NIPPLE - FUEL RAILFuel hose
T NIPPLE - FUEL RAIL -
363AD-02211-0 Fuel hose
VAPOR SEPARATOR - T NIPPLEFuel hose
VAPOR SEPARATOR - T NIPPLE -
373AD-06157-0 Hose protector
L=240Hose protector
L=240 -
383AC-09056-0 ClipClip
-
3998AR-50-600 Rubber hose
CYLINDER - F/COOLERRubber hose
CYLINDER - F/COOLER -
403AC-02211-0 Fuel hose
H/P/F/FILTER - T NIPPLEFuel hose
H/P/F/FILTER - T NIPPLE -
413AC-70013-0 T-NippleT-Nipple
-
4298AB-5-1000 New part
AIR VENT - VAPOR SEPARATORNew part
AIR VENT - VAPOR SEPARATOR -
43338-01133-0 ClipClip
-
4498AR-50-600 Rubber hose
FUEL COOLER - WATER NIPPLERubber hose
FUEL COOLER - WATER NIPPLE -
45353-01138-0 Water Nipple
BOTTOM COWLWater Nipple
BOTTOM COWL -
463AC-76174-0 Air vent stayAir vent stay
-
473AC-06302-0 Rubber mount air ventRubber mount air vent
-
483AC-10320-0 Air vent assyAir vent assy
-
493AC-01176-0 T-nipple - not availableT-nipple - not available
-
5098AL-4-1000 Rubber pipe
T NIPPLE - AIR VENTRubber pipe
T NIPPLE - AIR VENT -
5198AL-4-1000 Rubber pipe
T/BODY - T NIPPLERubber pipe
T/BODY - T NIPPLE -
5298AL-4-1000 Rubber pipe
T NIPPLE - FOR OUTLETRubber pipe
T NIPPLE - FOR OUTLET -
53393-01160-0 Check ValveCheck Valve
-
543T5-10086-0 Clamp 21/32Clamp 21/32
-
5598AB-3-1000 Rubber hose
V/SEPARATOR - BOTTOM COWLRubber hose
V/SEPARATOR - BOTTOM COWL -
563AC-10087-0 ClampClamp
