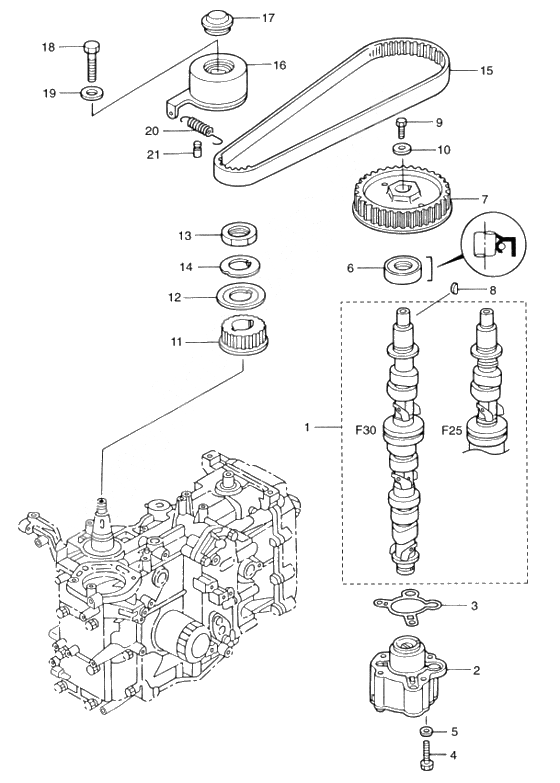

Camshaft & oil pump для Tohatsu MFS30B - 2005 года выпуска`
-
№АртикулНазвание
-
13AC-07010-0 Camshaft
WITH PIN & DECOMPRESSORCamshaft
WITH PIN & DECOMPRESSOR -
3AC-07010-1 CamshaftCamshaft
-
23R0-07600-0 Oil PumpOil Pump
-
33R0-07639-0 O-ring,Oil Pump OuterO-ring,Oil Pump Outer
-
4910114-0645 BoltBolt
-
5940113-0600 WasherWasher
-
63H8-07025-0 Oil Seal,18-35-8Oil Seal,18-35-8
-
73H8-10062-2 Driven Pulley
CAMSHAFT PULLEY (BLACK)Driven Pulley
CAMSHAFT PULLEY (BLACK) -
8309-00131-0 Key, MagnetoKey, Magneto
-
93AA-60108-0 Pre-Coated BoltPre-Coated Bolt
-
103H8-10066-0 WasherWasher
-
113R0-10060-0 Drive Puley
TIMING PULLEYDrive Puley
TIMING PULLEY -
123R0-10063-0 PlatePlate
-
133R0-10068-0 NutNut
-
143R0-10069-0 Lock WasherLock Washer
-
153R0-10061-0 Timing BeltTiming Belt
-
163R0-10070-0 Tensioner,timing beltTensioner,timing belt
-
173R0-10074-0 Covcer,tensionerCovcer,tensioner
-
18910113-1040 BoltBolt
-
19940113-1000 WasherWasher
-
203R0-10075-0 Spring,tensionerSpring,tensioner
-
213R0-10077-0 Hook,spring tensionerHook,spring tensioner
