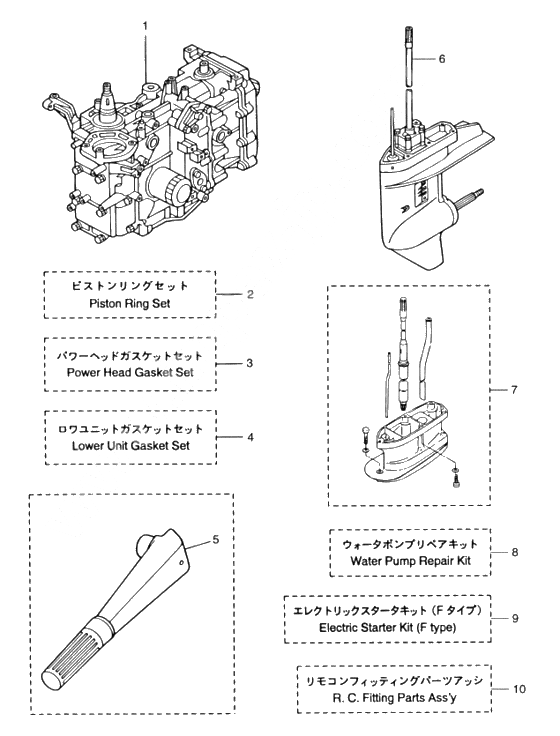

Assembly kit для Tohatsu MFS30B - 2005 года выпуска`
-
№АртикулНазвание
-
13ACB87100-0 Fully dressed short block-f30bFully dressed short block-f30b
-
23AC-87123-0 Piston ring setPiston ring set
-
23AC-00011-0 Top ringTop ring
-
23AC-00012-0 2-nd ring2-nd ring
-
23AC-00013-0 3-d ring3-d ring
-
33AC-87121-0 Power Head Gasket SetPower Head Gasket Set
-
3AC-87121-1 Power Head Gasket SetPower Head Gasket Set
-
33AC-01005-0 O-RingO-Ring
-
33R0-01024-0 Gasket,head CoverGasket,head Cover
-
33R0-07422-0 New part
FILLER CAPNew part
FILLER CAP -
3346-01032-0 New partNew part
-
33R3-01144-0 O-RingO-Ring
-
33R0-00122-0 Oil Seal,38-50-8
UPPEROil Seal,38-50-8
UPPER -
33R0-00121-0 Oil Seal.30-50-8
LOWEROil Seal.30-50-8
LOWER -
33AC-02012-0 O-Ring
INSULATORO-Ring
INSULATOR -
33AC-10104-0 Gasket throttle bodyGasket throttle body
-
33R0-07639-0 O-ring,Oil Pump OuterO-ring,Oil Pump Outer
-
33H8-07025-0 Oil Seal,18-35-8
CAMSHAFTOil Seal,18-35-8
CAMSHAFT -
33R0-01303-0 Gasket,Engine BaseGasket,Engine Base
-
3346-01215-0 New part
DRIVE SHAFTNew part
DRIVE SHAFT -
33R0-61012-0 Gasket,Drive Shaft HousingGasket,Drive Shaft Housing
-
43R0-87321-0 Lower Unit Gasket SetLower Unit Gasket Set
-
4332-60006-0 Gasket (8.1x15.1)
OIL PLUGGasket (8.1x15.1)
OIL PLUG -
4332-60103-0 O-Ring
PROPELLER SHAFTO-Ring
PROPELLER SHAFT -
4346-60111-0 Oil seal, 18-28-8
PROPELLER SHAFTOil seal, 18-28-8
PROPELLER SHAFT -
4346-65013-0 Oil' seal, 17-30-9
PUMP CASE LOWEROil' seal, 17-30-9
PUMP CASE LOWER -
4336-62415-0 O-Ring
PUMP CASE LOWERO-Ring
PUMP CASE LOWER -
4332-66021-0 O-Ring
CAM RODO-Ring
CAM ROD -
43C8-66032-0 O-Ring
CAM ROD BUSHINGO-Ring
CAM ROD BUSHING -
43R0-65018-0 Gasket,Pump CaseGasket,Pump Case
-
4348-65029-1 Gasket, pump guide plateGasket, pump guide plate
-
53ACQ63003-0 Tiller handle assy (amb)
FOR MF & EFTiller handle assy (amb)
FOR MF & EF -
3ACQ63005-0 Tiller handle assy (amb)Tiller handle assy (amb)
-
63ACQ87301-0 Lower unit assy *s*
FOR TRANSOM SLower unit assy *s*
FOR TRANSOM S -
63ACQ87302-0 Lower unit assy l (f25/30b)
FOR TRANSOM LLower unit assy l (f25/30b)
FOR TRANSOM L -
3AEQ87302-4 Lower unit assy l (f25/30b)Lower unit assy l (f25/30b)
-
73R0Q87314-0 Extension housing kit ul
FOR TRANSOM ULExtension housing kit ul
FOR TRANSOM UL -
7346Q61110-5 Extension housing ul
FIG. 13-17Extension housing ul
FIG. 13-17 -
7916113-0835 Bolt
FIG. 13-18Bolt
FIG. 13-18 -
7916113-0845 Bolt
FIG. 13-19Bolt
FIG. 13-19 -
73P0-66233-0 New part
FIG. 13-20New part
FIG. 13-20 -
7346-64303-5 Drive Shaft UL
FIG. 15-1Drive Shaft UL
FIG. 15-1 -
73R0-65120-0 Water PipeUL""
FIG. 15-37Water PipeUL""
FIG. 15-37 -
73R0-66014-0 Cam Rod UL""
FIG. 16-2Cam Rod UL""
FIG. 16-2 -
7951407-0312 Spring Washer
FIG. 16-3Spring Washer
FIG. 16-3 -
7346-66037-0 Holder Cam Rod
FIG. 16-9Holder Cam Rod
FIG. 16-9 -
83R0-87322-0 ウォ-タ-ポンプリペアキットウォ-タ-ポンプリペアキット
-
8345-65021-0 Крыльчатка водной помпыКрыльчатка водной помпы
-
8332-65022-0 Key, pump impellerKey, pump impeller
-
83R0-65011-0 Liner,Pump CaseLiner,Pump Case
-
83R0-65025-0 Guide Plate,Water PumpGuide Plate,Water Pump
-
83R0-65018-0 Gasket,Pump CaseGasket,Pump Case
-
8348-65029-1 Gasket, pump guide plateGasket, pump guide plate
-
93AC-76300-0 Electric starter kit f-typeElectric starter kit f-type
-
3AD-76300-1 Electric starter kit f-typeElectric starter kit f-type
-
93C8-76010-1 Starter Motor Ass'y
FIG. 9-35Starter Motor Ass'y
FIG. 9-35 -
9910103-5830 Bolt
FIG. 9-36Bolt
FIG. 9-36 -
93R0-76009-0 Band,Starter Motor
FIG. 9-37Band,Starter Motor
FIG. 9-37 -
93C8-76007-0 Rubber Starter Motor
FIG. 9-38Rubber Starter Motor
FIG. 9-38 -
9910113-5820 Bolt
FIG. 9-39 FOR BANDBolt
FIG. 9-39 FOR BAND -
93AC-76066-0 Fuse cable
FIG. 9-31Fuse cable
FIG. 9-31 -
93A3-76037-0 Plug B Cable Terminal
FIG. 9-48Plug B Cable Terminal
FIG. 9-48 -
93AC-76065-0 Rectifier (rs27-55) f25/30b
FIG. 9-32Rectifier (rs27-55) f25/30b
FIG. 9-32 -
9910103-5625 Bolt
FIG. 9-33 FOR RECTIFIERBolt
FIG. 9-33 FOR RECTIFIER -
93H8-76040-0 Starter Solenoid
FIG. 9-41 WITH BOLT (910103-5610 X 2)Starter Solenoid
FIG. 9-41 WITH BOLT (910103-5610 X 2) -
93V1-76120-1 Battery Cord
FIG. 9-43 L=2500Battery Cord
FIG. 9-43 L=2500 -
9910103-5612 Bolt
FIG. 9-40 FOR BATTERY CABLE (-)Bolt
FIG. 9-40 FOR BATTERY CABLE (-) -
93AA-76145-0 Terminal Cap
FIG. 9-44Terminal Cap
FIG. 9-44 -
93R3-76141-0 STARTER CORD
FIG. 9-45 L=270STARTER CORD
FIG. 9-45 L=270 -
93Y1-76145-0 Terminal Cap
FIG. 9-46Terminal Cap
FIG. 9-46 -
93Y0-76145-0 Terminal Cap
FIG. 9-47Terminal Cap
FIG. 9-47 -
93AA-76026-0 Main Switch
FIG. 9-55 OR 3B2-76026-1Main Switch
FIG. 9-55 OR 3B2-76026-1 -
9361-76080-0 Нейтральный переключатель
FIG. 9-56Нейтральный переключатель
FIG. 9-56 -
9398-76083-0 Actuator Neutral Switch
FIG. 9-57Actuator Neutral Switch
FIG. 9-57 -
103AC-83880-0 Remote Control Fitting PartsRemote Control Fitting Parts
-
3AC-83880-2 Remote Control Fitting PartsRemote Control Fitting Parts
-
103AC-66122-0 Shift arm (remote control)
FIG. 17-16Shift arm (remote control)
FIG. 17-16 -
10910113-5620 Bolt
FIG. 17-17 OR 910103-5620Bolt
FIG. 17-17 OR 910103-5620 -
103R0-66308-0 Washer
FIG. 17-18 OR 3C8-66308-0Washer
FIG. 17-18 OR 3C8-66308-0 -
10353-76079-0 Collar 6.2-9-9.3
FIG. 17-19Collar 6.2-9-9.3
FIG. 17-19 -
103C8-63733-0 Rod Snap 5-3
FIG. 17-20Rod Snap 5-3
FIG. 17-20 -
103R0-63709-0 Link Rod
FIG. 17-21Link Rod
FIG. 17-21 -
103R0-83715-0 Cable Joint
FIG. 17-22 LINK 4.5-40.5Cable Joint
FIG. 17-22 LINK 4.5-40.5 -
10930103-0500 Nut
FIG. 17-23Nut
FIG. 17-23 -
103B7-83715-1 Cable Joint
FIG. 17-24Cable Joint
FIG. 17-24 -
3B7-83715-2 Cable JointCable Joint
-
103AA-83719-0 Washer
FIG. 17-25 OR 353-83719-0Washer
FIG. 17-25 OR 353-83719-0 -
10951603-0800 R-Pin
FIG. 17-26R-Pin
FIG. 17-26 -
103R0-66126-0 Bracket,Shift Arm
FIG. 17-27Bracket,Shift Arm
FIG. 17-27 -
10910113-5616 Bolt
FIG. 17-28 OR 910103-5616Bolt
FIG. 17-28 OR 910103-5616 -
103R0-83820-0 Bracket,Cable
FIG. 17-29Bracket,Cable
FIG. 17-29 -
103R0-83830-0 Steetring Hook Plate
FIG. 17-33Steetring Hook Plate
FIG. 17-33 -
10910113-1030 Bolt
FIG. 17-34Bolt
FIG. 17-34 -
910103-1030 BoltBolt
-
10940113-1000 Washer
FIG. 17-35Washer
FIG. 17-35 -
103R0-83732-0 Grommet,control Cable
FIG. 22-22Grommet,control Cable
FIG. 22-22 -
103B7-01046-0 Plug
FIG. 22-29Plug
FIG. 22-29
