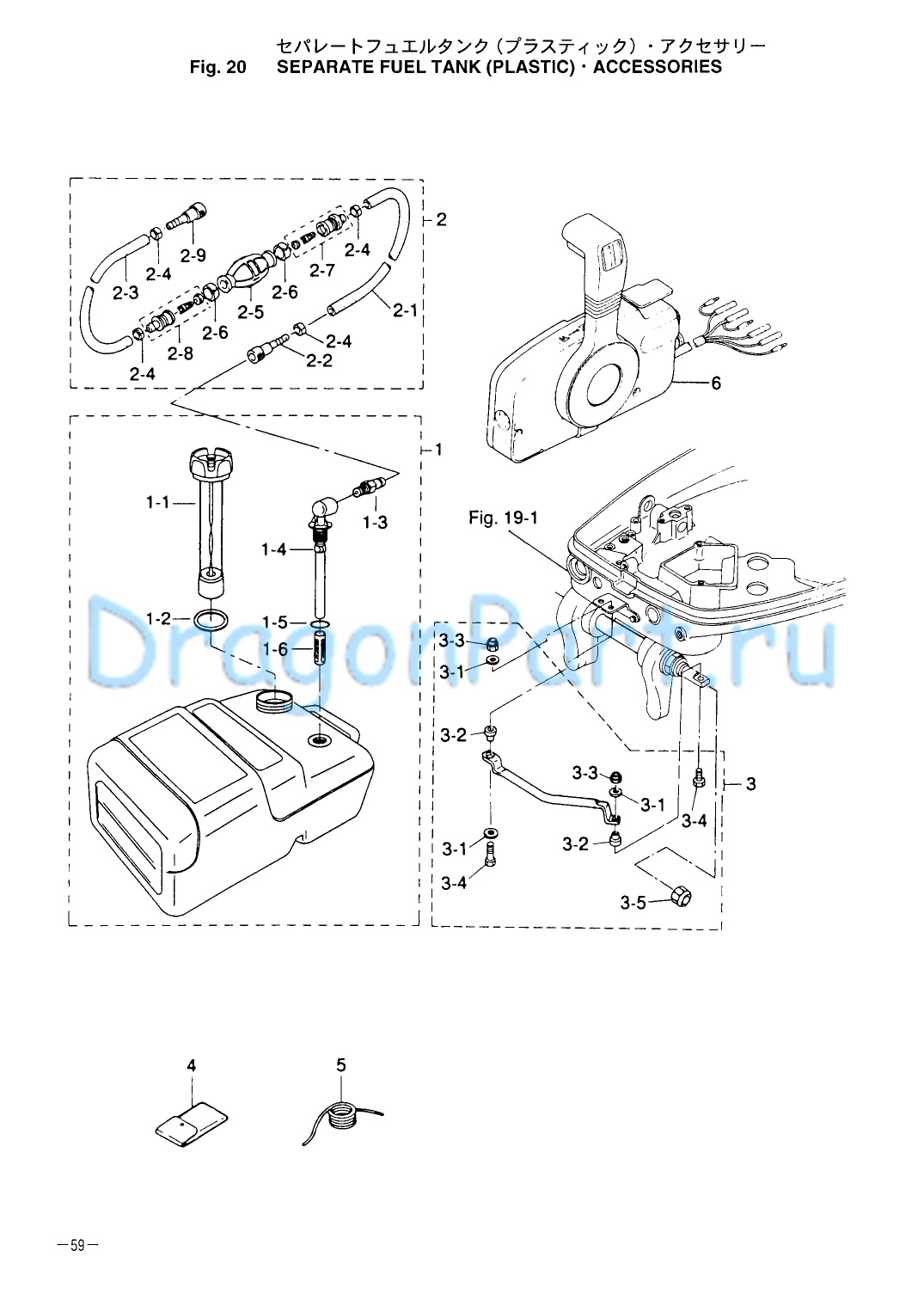

SEPARATE FUEL TANK (PLASTIC) ACCESSORIES для Tohatsu M40C - 2005 года выпуска`
-
№АртикулНазвание
-
13C7-70177-0 Fuel Tank (25L)
UNIQUEFuel Tank (25L)
UNIQUE -
1-13C7-70050-0 * Fuel Gauge Vented Cap* Fuel Gauge Vented Cap
-
1-23C7-70021-0 * Cap Gasket* Cap Gasket
-
1-33E0-70270-0 * Male Quick Connector* Male Quick Connector
-
1-43C7-70155-0 * Elbow Tubing and Clamp Ass'v* Elbow Tubing and Clamp Ass'v
-
1-53C7-70199-0 * O-Ring* O-Ring
-
1-63C7-70113-0 * Filter* Filter
-
23B7-70200-3 Primer Bulb Ass'vPrimer Bulb Ass'v
-
2-198AB-7-1600 * Fuel Pipe* Fuel Pipe
-
2-23B2-70281-0 * Fuel Connector (Tank side, Female)* Fuel Connector (Tank side, Female)
-
2-398AB-7-0700 * Fuel Pipe* Fuel Pipe
-
2-4332-70201-0 * Clamp* Clamp
-
2-53C7-70211-0 * Primer Bulb* Primer Bulb
-
2-63C7-70217-0 * Clamp* Clamp
-
2-73C7-70220-1 * Joint "A" Ass'v IN* Joint "A" Ass'v IN
-
2-83C7-70224-1 * Joint “A" Ass'v OUT* Joint “A" Ass'v OUT
-
2-93B2-70250-1 * Fuel Connector (Engine side, Female)* Fuel Connector (Engine side, Female)
-
3361-84905-1 Drag Link “B” Assy
for "EP" TypeDrag Link “B” Assy
for "EP" Type -
3-1353-84916-0 * Washer, 9.6-18-2* Washer, 9.6-18-2
-
3-2361-84914-0 * Spacer, Drag Link* Spacer, Drag Link
-
3-3353-84918-0 * Nylon Nut, 3/8* Nylon Nut, 3/8
-
3-4353-84917-0 * Bolt, 3/8-45* Bolt, 3/8-45
-
3-53F3-84908-0 * Seal Ring, Drag Link* Seal Ring, Drag Link
-
43C8-72100-1 ToolTool
-
53B7-72201-0 Rope
¢67600Rope
¢67600 -
63B7-84360-0 Remote Control Box (RC5D)
for “MF/EF” Type UNIQUERemote Control Box (RC5D)
for “MF/EF” Type UNIQUE -
63B7-84350-2 Remote Control Box (RC5C)
for "EP" Type UNIQUERemote Control Box (RC5C)
for "EP" Type UNIQUE
Все узлы модели:
- CYLINDER CRANK CASE
- PISTON CRANK SHAFT
- INLET REED VALVE
- CARBURETOR
- FUEL PUMP
- THROTTLE MECHANISM
- TILLER HANDLE
- MAGNETO
- ELECTRIC STARTER (STARTER MOTOR)
- ELECTRIC STARTER (EXCLUSIVE USE FOR EP TYPE)
- RECOIL STARTER
- STARTER LOCK
- DRIVE SHAFT HOUSING
- GEAR CASE (DRIVE SHAFT)
- GEAR CASE( PROPELLER SHAFT)
- SHIFT
- BRACKET
- REVERSE LOCK
- MOTOR COVER
- • SEPARATE FUEL TANK (PLASTIC) ACCESSORIES
- OPTIONAL PARTS (1) REMOTE CONTROL (P TYPE)
- OPTIONAL PARTS (2) METER)
- OPTIONAL PARTS (3) ACCESSORIES
- ASSEMBLY KIT
