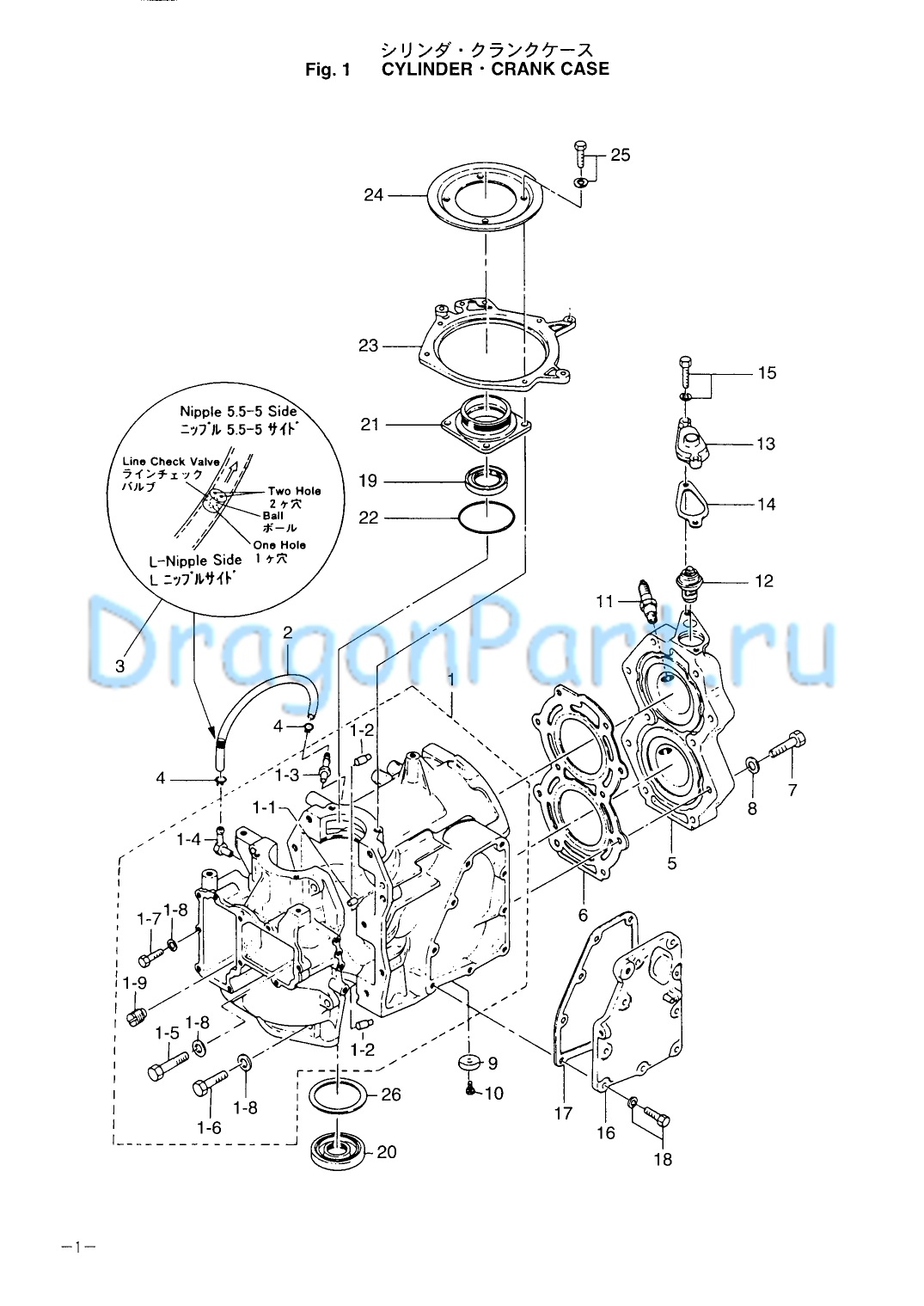

CYLINDER CRANK CASE для Tohatsu M40C - 2005 года выпуска`
-
№АртикулНазвание
-
1361B01100-2 Cylinder-Crank Case
# 98033〜Cylinder-Crank Case
# 98033〜 -
1-1345-01111-0 * Knock, 6-12* Knock, 6-12
-
1-2345-00117-0 * Knock, Main Bearing* Knock, Main Bearing
-
1-3393-01131-0 * Nipple, 5.5-5
# 98033〜* Nipple, 5.5-5
# 98033〜 -
1-4393-01137-0 * L~Nipple (New)
# 98033〜* L~Nipple (New)
# 98033〜 -
1-43B2-01160-0 * Check Valve Nipple (Old)
98032* Check Valve Nipple (Old)
98032 -
1-5916129-0850 * Bolt* Bolt
-
1-6916124-0840 * Bolt* Bolt
-
1-7916114-0835 * Bolt* Bolt
-
1-8940121-0800 * Washer* Washer
-
1-9345-01150-1 * Check Valve Ass'y* Check Valve Ass'y
-
298AL-4-0230 Lubrication Pipe
# 98033〜Lubrication Pipe
# 98033〜 -
3393-01160-0 Line Check Valve
# 98033〜Line Check Valve
# 98033〜 -
43T5-01133-0 Clip, 6 8
# 98033〜Clip, 6 8
# 98033〜 -
5361B01001-1 Cylinder Head
# 94364〜Cylinder Head
# 94364〜 -
6345-01005-0 Gasket, Cylinder HeadGasket, Cylinder Head
-
7916119-0845 BoltBolt
-
8345-01015-0 Washer, 8.57 9.5-3.2Washer, 8.57 9.5-3.2
-
9338-60218-2 AnodeAnode
-
10910103-0616 BoltBolt
-
119701-1-1005 Spark Plug
NGK B7HS-10Spark Plug
NGK B7HS-10 -
119701-1-1015 Spark Plug ( with Resistance)
NGK BR7HS-10Spark Plug ( with Resistance)
NGK BR7HS-10 -
12345-01030-0 ThermostatThermostat
-
133H6B01031-0 Cap, Thermostat
# 96838〜Cap, Thermostat
# 96838〜 -
14346-01032-0 Gasket, Thermostat CapGasket, Thermostat Cap
-
15910114-5630 Bolt
# 96838〜Bolt
# 96838〜 -
16345B02301-2 Exhaust CoverExhaust Cover
-
17345-02305-0 Gasket, Exhaust CoverGasket, Exhaust Cover
-
18910114-5620 BoltBolt
-
19126-00121-0 Oil Seal, 30-45-8Oil Seal, 30-45-8
-
20345-00122-0 Oil Seal, 25-5570Oil Seal, 25-5570
-
21345-01401-0 Magneto BaseMagneto Base
-
22338-01403-0 O-Ring, 2-55.5O-Ring, 2-55.5
-
23353-63723-1 Set RingSet Ring
-
24346-63722-2 Guide PlateGuide Plate
-
25910121-6620 BoltBolt
-
26345-00125-0 Retainer, 50-60-1.6Retainer, 50-60-1.6
