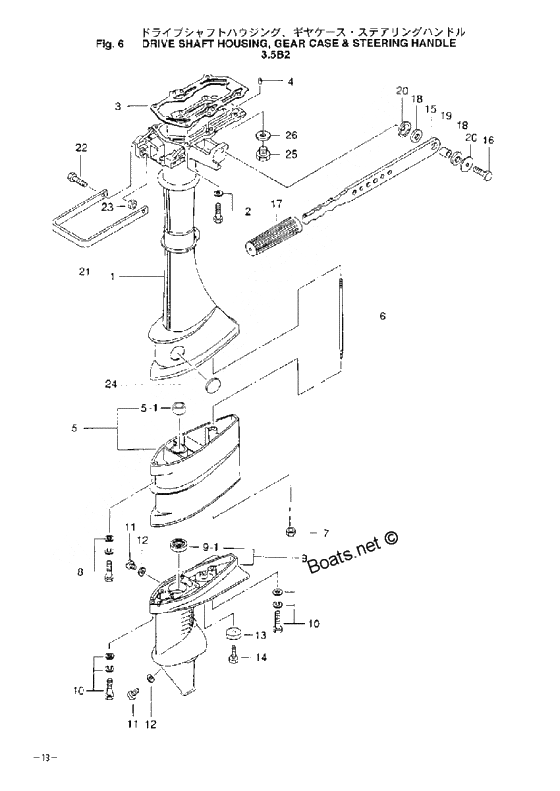

Drive shaft housing, gear case & steering handle для Tohatsu M3.5B2 - 2005 года выпуска`
-
№АртикулНазвание
-
13F0S61020-1 Drive shaft housing sDrive shaft housing s
-
3309-61012-1 Gasket drive shaft housingGasket drive shaft housing
-
4345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
53F0S61102-1 Extension housing l ass'y
SG for Transom LExtension housing l ass'y
SG for Transom L -
5-1369-60003-0 Bushing drive shaftBushing drive shaft
-
63F0-61101-0 Stud bolt, 6-171
for Transom LStud bolt, 6-171
for Transom L -
7930103-0600 NutNut
-
9-19601-0-6000 Ball BearingBall Bearing
-
11332-60005-1 Oil plugOil plug
-
332-60005-2 Oil plugOil plug
-
12332-60006-0 Gasket (8.1x15.1)Gasket (8.1x15.1)
-
13338-60218-2 New partNew part
-
14910103-0616 BoltBolt
-
15309S63011-0 Рулевой рычаг и кабельРулевой рычаг и кабель
-
16910103-0830 New part
or 910113-0830New part
or 910113-0830 -
17309-63012-0 Grip steering handleGrip steering handle
-
18309-63024-0 Damper rubber steering handleDamper rubber steering handle
-
19309-63025-0 Spacer 8.4-12-14.2Spacer 8.4-12-14.2
-
20345-67115-0 Washer lower cover rubber mountWasher lower cover rubber mount
-
213F0S67521-0 Carrying HandleCarrying Handle
-
22910103-0625 BoltBolt
-
24369-61016-0 Grommet Drive Shaft HousingGrommet Drive Shaft Housing
Все узлы модели:
- CYLINDER CRANK CASE ASS`Y
- DRIVE SHAFT HOUSING GEAR CASER AND STEERING HANDLE
- GEAR CASE(DRIVE SHAFT)
- GEAR CASE(PROPELLER SHAFT)
- MOTOR COVER INTEGRAL FUEL TANK
- OPTIONAL PARTS ACCESSORIES
- PISTON CRANK SHAFT
- STERN BRACKET SWIVEL BRACKET
- Accessories
- Assembly kit
- Carburetor
- Clylinder-crank case assy
- • Drive shaft housing, gear case & steering handle
- Gear case (drive shaft)
- Gear case (propeller shaft)
- Magneto
- Motor cover & integral fuel tank
- Piston & crank shaft
- Recoil starter
- Shift
- Stern bracket, swivel bracket
