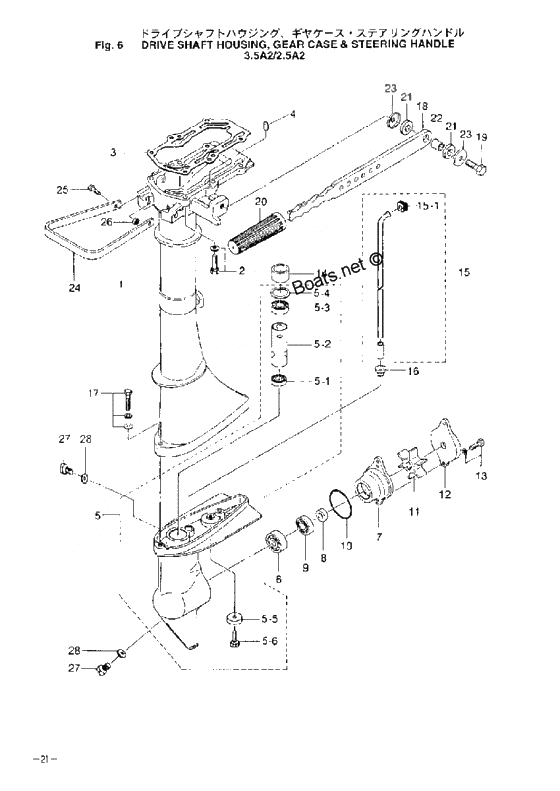

Drive shaft housing, gear case & steering handle для Tohatsu M3.5A2 - 2005 года выпуска`
-
№АртикулНазвание
-
1309S61020-2 Drive shaft housing s
for Transom SDrive shaft housing s
for Transom S -
1309S61030-2 Deive shaft housing l
for Transom LDeive shaft housing l
for Transom L -
3309-61012-1 Gasket drive shaft housingGasket drive shaft housing
-
4345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
5309S60000-2 Gear case ass'yGear case ass'y
-
5-19601-0-6000 Ball BearingBall Bearing
-
5-2309-64321-0 Spacer, drive shaft bearingSpacer, drive shaft bearing
-
5-39601-0-6001 Ball BearingBall Bearing
-
5-4945002-2800 C-RingC-Ring
-
5-5338-60218-2 New partNew part
-
5-6910103-0616 BoltBolt
-
69601-0-6300 Ball BearingBall Bearing
-
7309S65010-1 Water Pump CaseWater Pump Case
-
8309-60111-0 Oil Seal 12-24-8Oil Seal 12-24-8
-
10309-65015-0 O-RingO-Ring
-
11309-65021-1 Крыльчатка водной помпыКрыльчатка водной помпы
-
12309S60101-1 Head gear caseHead gear case
-
14309-60223-0 Oil SealOil Seal
-
15309-65110-0 Water tube l
for Transom LWater tube l
for Transom L -
15309-65100-0 Water tube s
for Transom SWater tube s
for Transom S -
15-1309-65031-1 Water tube grommet upperWater tube grommet upper
-
16309-65032-0 Water Tube Grommet LowerWater Tube Grommet Lower
-
18309S63011-0 Рулевой рычаг и кабельРулевой рычаг и кабель
-
19910103-0830 New part
or 910113-0830New part
or 910113-0830 -
20309-63012-0 Grip steering handleGrip steering handle
-
21309-63024-0 Damper rubber steering handleDamper rubber steering handle
-
22309-63025-0 Spacer 8.4-12-14.2Spacer 8.4-12-14.2
-
23345-67115-0 Washer lower cover rubber mountWasher lower cover rubber mount
-
24309S67521-0 Carrying HandleCarrying Handle
-
25910103-0625 BoltBolt
-
26930103-0600 NutNut
-
27332-60005-1 Oil plugOil plug
-
332-60005-2 Oil plugOil plug
-
28332-60006-0 Gasket (8.1x15.1)Gasket (8.1x15.1)
