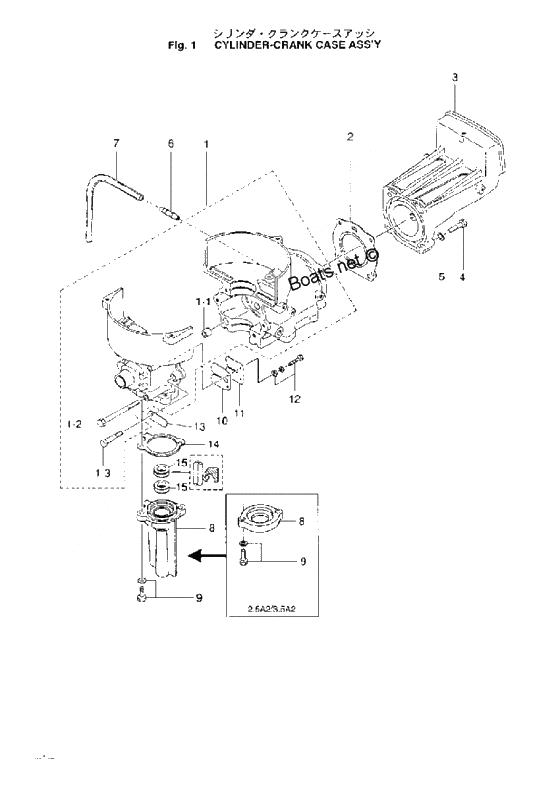

Clylinder-crank case assy для Tohatsu M3.5A2 - 2005 года выпуска`
-
№АртикулНазвание
-
1309B01100-3 Cylinder crank case ass'yCylinder crank case ass'y
-
1345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
2309-01005-1 Gasket, Cyl. HeadGasket, Cyl. Head
-
309-01005-2 Gasket, Cyl. HeadGasket, Cyl. Head
-
2916124-0665 BoltBolt
-
3309B01001-2 Головка цилиндров
2.5A2 #90713-Головка цилиндров
2.5A2 #90713- -
3910124-0630 BoltBolt
-
5940121-0600 WasherWasher
-
6393-01131-0 Drain nippleDrain nipple
-
79807-3-0150 Drain pipe
тИЕ3 - тИЕ7 - 150mmDrain pipe
тИЕ3 - тИЕ7 - 150mm -
98AB-301000 Drain pipeDrain pipe
-
8309-01210-1 Crank case headCrank case head
-
9910103-5618 BoltBolt
-
10309-02111-0 Floato Valve AssyFloato Valve Assy
-
11309-02113-0 Стопорный клапанСтопорный клапан
-
12921521-7412 Stud BoltStud Bolt
-
13309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
