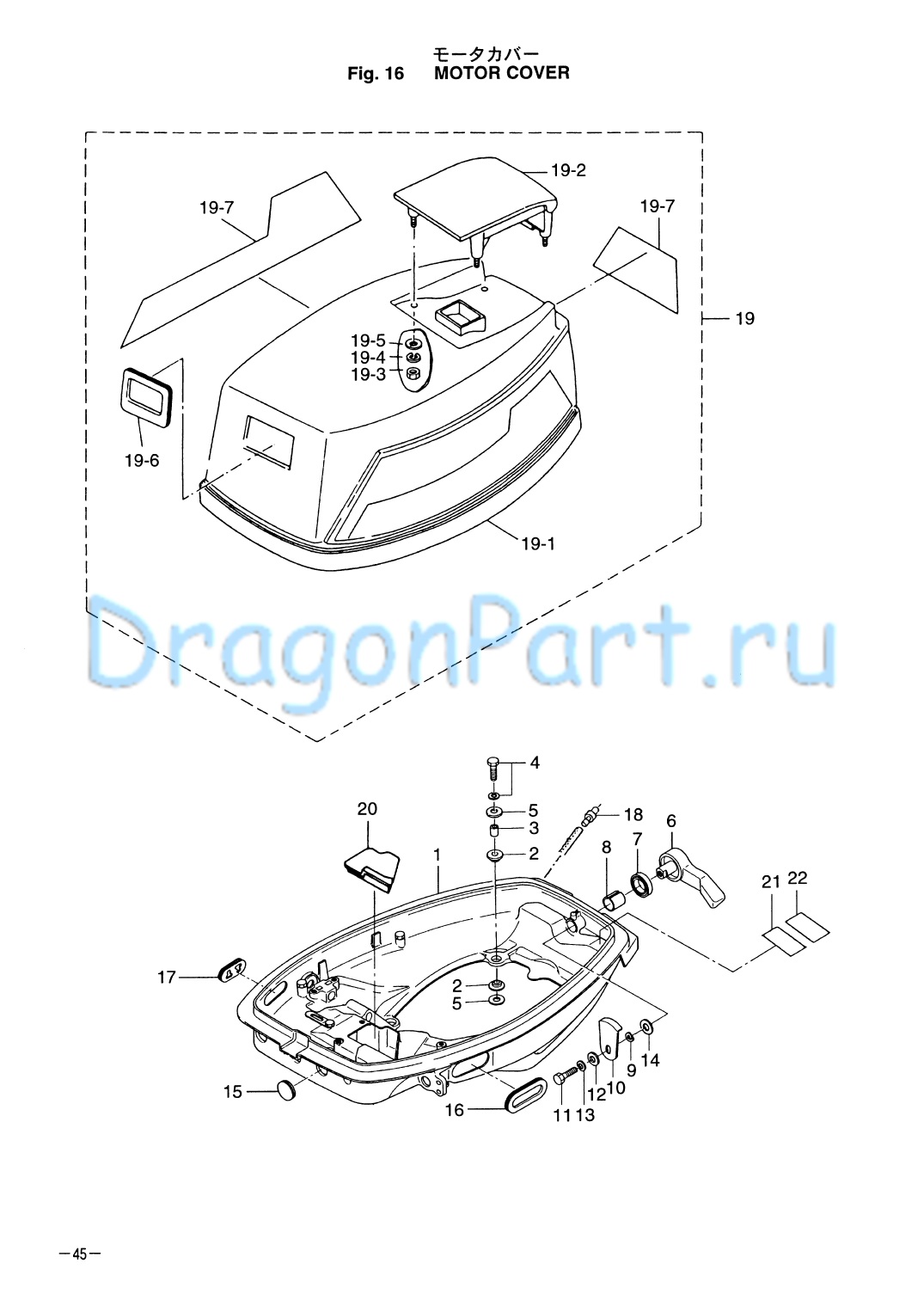

MOTOR COVER для Tohatsu M30A4 - 2005 года выпуска`
-
№АртикулНазвание
-
1346S67100-3 Motor Cover Lower
30A3 # 33577〜 25c2 # 46214-Motor Cover Lower
30A3 # 33577〜 25c2 # 46214- -
2346-67113-0 Mount RubberMount Rubber
-
3346-67114-0 Spacer, 6.2-9-15.7Spacer, 6.2-9-15.7
-
4910113-0630 BoltBolt
-
5346-67115-0 Washer, 6.5-21 TWasher, 6.5-21 T
-
6338S67141-0 Hook Lever
30A3 # 33577〜 25c2 # 46214-Hook Lever
30A3 # 33577〜 25c2 # 46214- -
7338-67147-0 Seal Ring, Hook Lever
30A3 # 33577-25c2 # 46214-Seal Ring, Hook Lever
30A3 # 33577-25c2 # 46214- -
8350-67105-0 Bushing, 14-16.5-17.7
30A3 # 33577〜 25c2 # 46214-Bushing, 14-16.5-17.7
30A3 # 33577〜 25c2 # 46214- -
9941403-1400 Wave Washer, d=14Wave Washer, d=14
-
10345-67142-1 Cover HookCover Hook
-
11910103-0612 BoltBolt
-
123R0-66308-0 Washer, 6-16-1.5Washer, 6-16-1.5
-
13941303-0600 Spring WasherSpring Washer
-
143C8-67146-0 Washer. 14-22-1Washer. 14-22-1
-
15345-67161-0 Grommet, 22-3Grommet, 22-3
-
16346-67165-0 Grommet "B , Motor Cover LowerGrommet "B , Motor Cover Lower
-
17353-67162-0 Grommet, Battery CableGrommet, Battery Cable
-
18353-01138-0 Water NippleWater Nipple
-
193P0S67500-0 Motor Cover Upper
30A4#36105 〜，25C3#52799 〜 UNIQUEMotor Cover Upper
30A4#36105 〜，25C3#52799 〜 UNIQUE -
19-13F3-67501-0 * Seal Rubber, Motor Cover Upper* Seal Rubber, Motor Cover Upper
-
19-2349S67521-0 * Tilt Handle* Tilt Handle
-
19-3930103-0600 * Nut
or 930113-0600* Nut
or 930113-0600 -
19-4941303-0600 * Spring Washer* Spring Washer
-
19-5309-70016-0 * Washer, 6.5-16~2* Washer, 6.5-16~2
-
19-6344-67503-0 * Seal Rubber, Starter* Seal Rubber, Starter
-
19-73P1S87801-0 * Decal Set
30A4#36105 〜 UNIQUE* Decal Set
30A4#36105 〜 UNIQUE -
20346-67161-0 Grommet D”，Motor Cover Lower
OptionGrommet D”，Motor Cover Lower
Option -
21332-72025-0 Label, Spark PlugLabel, Spark Plug
-
22361-72026-0 Label, Spark Plug (Resistance)Label, Spark Plug (Resistance)
