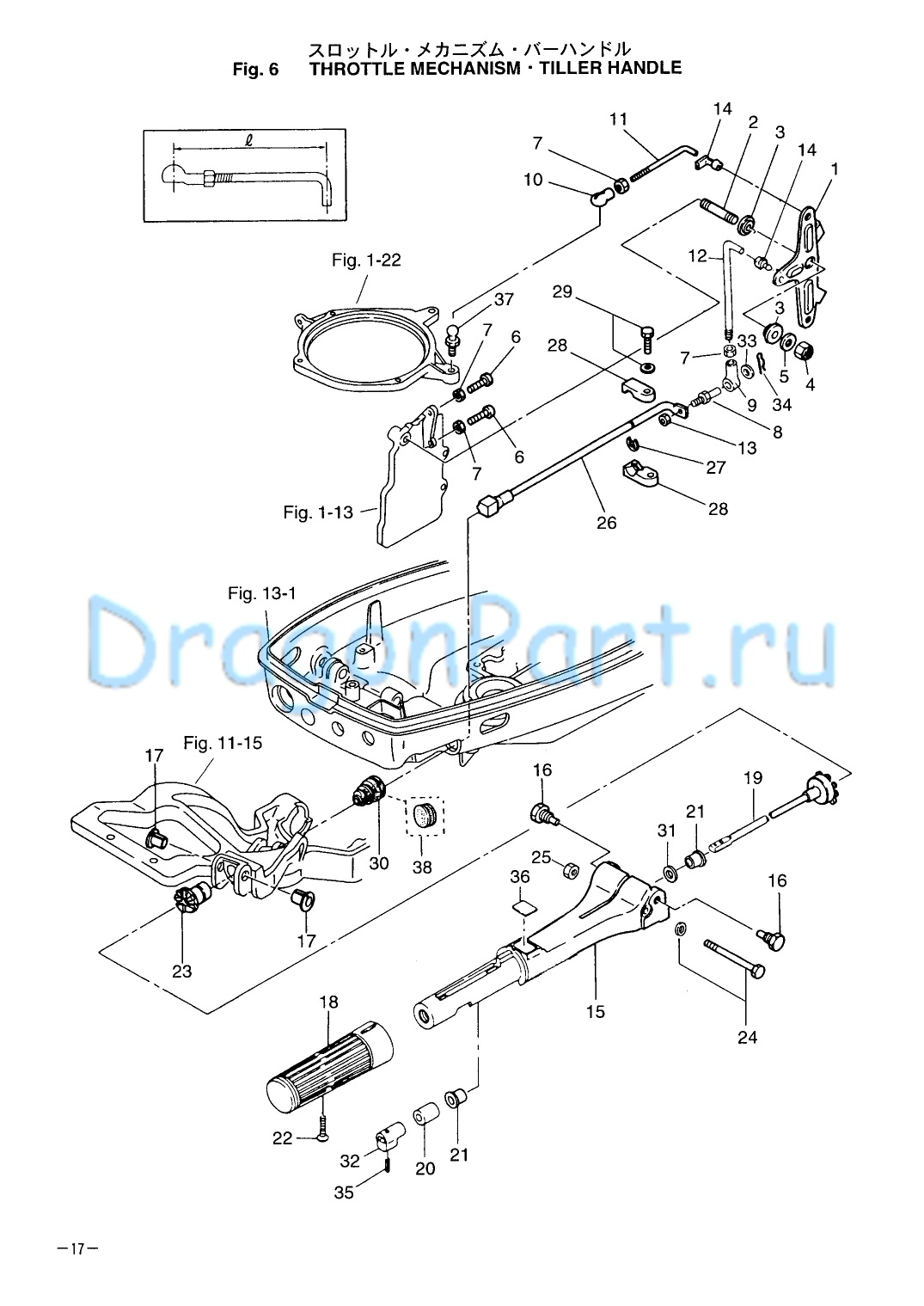

THROTTLE MECHANISM TILLER HANDLE для Tohatsu M18E2 - 2005 года выпуска`
-
№АртикулНазвание
-
1350-63711-1 Advancer ArmAdvancer Arm
-
2915221-0823 Stud BoltStud Bolt
-
3345-63713-0 Bushing, 8-14-4Bushing, 8-14-4
-
4930406-0800 Nylon Nut, 8P-1.25Nylon Nut, 8P-1.25
-
53P0-66233-0 Washer, 8.1-16-1.5
or 334-66233-0Washer, 8.1-16-1.5
or 334-66233-0 -
6921506-0525 ScrewScrew
-
7930106-0500 NutNut
-
8353-83728-0 Cable PinCable Pin
-
9346-05234-0 6 5 Rod Joint6 5 Rod Joint
-
103B7-05243-0 Cap “C”，Ball JointCap “C”，Ball Joint
-
11350-63715-0 Link Rod, 5-60L
I 二 73Link Rod, 5-60L
I 二 73 -
12398-63717-0 Link Rod, 5-65L
18E2/15D2 I二78 9.9D2 I 二 75Link Rod, 5-65L
18E2/15D2 I二78 9.9D2 I 二 75 -
13930106-0600 NutNut
-
14345-05224-0 Rod Snap, 5~2.5Rod Snap, 5~2.5
-
15398S63011-0 Steering HandleSteering Handle
-
16346-63201-1 BoltBolt
-
17345-63207-0 Collar, 9.8-12-7.5Collar, 9.8-12-7.5
-
18398-63012-0 GripGrip
-
19398-63041-0 Throttle Shaft "A"Throttle Shaft "A"
-
20345-63048-0 Rubber, Throttle Shaft "A”Rubber, Throttle Shaft "A”
-
21350-63046-0 Bushing, 8.4-10-11Bushing, 8.4-10-11
-
22921803-0525 ScrewScrew
-
23350-63064-0 Universal PinionUniversal Pinion
-
24910103-5675 Bolt
or 910113-5675Bolt
or 910113-5675 -
25930403-0600 Nylon Nut, 6P-1.0Nylon Nut, 6P-1.0
-
26350-63061-1 Throttle Shaft "B"Throttle Shaft "B"
-
27945303-0600 E-Ring, d-6E-Ring, d-6
-
28350-63063-0 Supporter, Throttle ShaftSupporter, Throttle Shaft
-
29910103-7630 Bolt
or 910113-7630Bolt
or 910113-7630 -
30345-66226-0 Grommet, Throttle ShaftGrommet, Throttle Shaft
-
31941403-1000 Wave Washer, d二10Wave Washer, d二10
-
32398-63053-0 Spacer, Throttle ShaftSpacer, Throttle Shaft
-
33353-83719-0 Washer, 8.5-18~1.6Washer, 8.5-18~1.6
-
34951603-0800 R-Pin, d=8R-Pin, d=8
-
35951403-0310 Spring Pin, 3-10Spring Pin, 3-10
-
36369-72019-1 Label, ThrottleLabel, Throttle
-
37346-05228-0 Ball Joint “B”Ball Joint “B”
-
38345-67117-0 Grommet,17_2.7
for Remote ControlGrommet,17_2.7
for Remote Control
