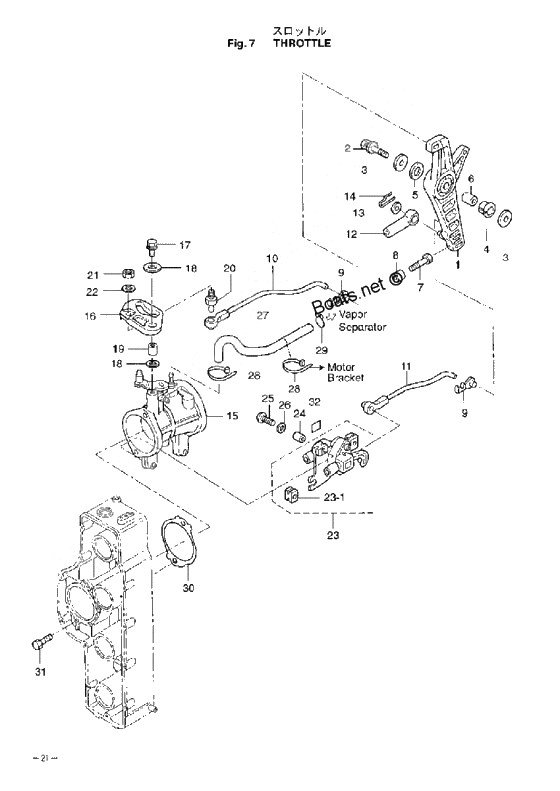

Throttle для Tohatsu M115A2 - 2005 года выпуска`
-
№АртикулНазвание
-
13B7B63711-3 Advancer ArmAdvancer Arm
-
2910103-6835 BoltBolt
-
33B7-63730-0 WasherWasher
-
43B7-63713-0 BushingBushing
-
53B7-63731-0 WasherWasher
-
63B7-63732-0 Collar, 8.4-12-17Collar, 8.4-12-17
-
7910103-0612 New partNew part
-
83T1-76079-0 CollarCollar
-
93B7-63733-0 Rod Snap, 5-3Rod Snap, 5-3
-
103T9-63702-1 Throttle link rod
Old Part No. 3T9-63716-0Throttle link rod
Old Part No. 3T9-63716-0 -
3T9-63702-2 Throttle link rodThrottle link rod
-
113T9-10109-1 Tps linkTps link
-
3T9-10109-0 Tps linkTps link
-
123B7-83715-1 Cable JointCable Joint
-
3B7-83715-2 Cable JointCable Joint
-
133AA-83719-0 Washer
or 353-83719-0Washer
or 353-83719-0 -
14951603-0800 R-PinR-Pin
-
153T1-10100-0 Throttle bodyThrottle body
-
163T1-63718-0 Throttle CamThrottle Cam
-
17910103-6625 BoltBolt
-
18346-67115-0 WasherWasher
-
193H6-63619-1 Collar, BracketCollar, Bracket
-
20346-05228-1 Ball JointBall Joint
-
21930203-0600 NutNut
-
22940103-0600 WasherWasher
-
233T5-10110-0 TPS Ass'yTPS Ass'y
-
23-13T5-10107-0 Mount RubberMount Rubber
-
243T5-10128-0 Collar, 4.2-6-10.5Collar, 4.2-6-10.5
-
25921503-6420 Stud BoltStud Bolt
-
263T5-10129-0 WasherWasher
-
283T5-84398-0 Band Lead Wire 104Band Lead Wire 104
-
29338-01133-0 ClipClip
-
303T1-10104-0 Gasket throttle bodyGasket throttle body
-
313T1-60108-0 Bolt 8-25 pre-coatedBolt 8-25 pre-coated
-
323T5-72195-0 Lavel, TPSLavel, TPS
