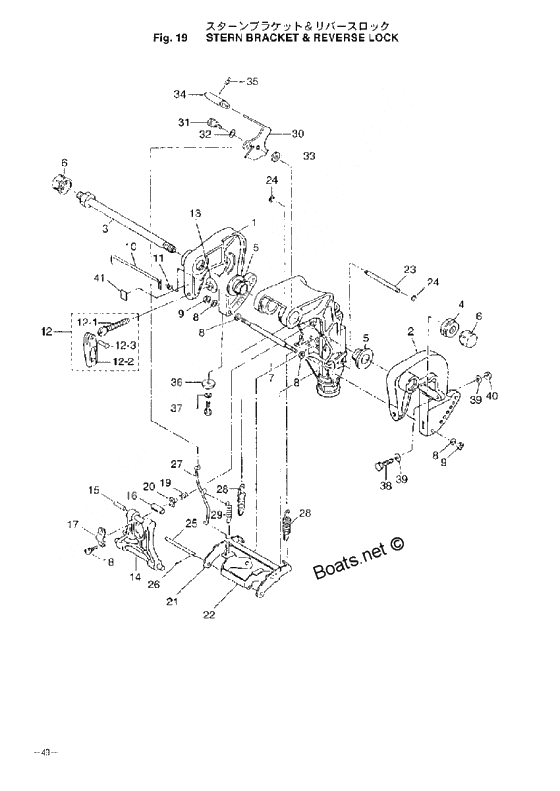

Bracket & reverse lock для Tohatsu MFS9.9B2 - 2004 года выпуска`
-
№АртикулНазвание
-
13G2S62112-0 Stern braket r
StarboardStern braket r
Starboard -
23G2S62113-0 Stern braket l
PortStern braket l
Port -
3346-62191-0 Bracket Bolt Ass'yBracket Bolt Ass'y
-
4346-62124-0 Bracket Nut(Nylon)Bracket Nut(Nylon)
-
5349-62126-0 Bushing, Bracket BoltBushing, Bracket Bolt
-
6346-62127-0 Cap,Bracket Bolt
MF & EFCap,Bracket Bolt
MF & EF -
7350-62117-1 Distance PieceDistance Piece
-
8940113-0600 WasherWasher
-
10350-62121-1 Thrust RodThrust Rod
-
11369-62122-2 Spring Thrust RodSpring Thrust Rod
-
12398S62100-0 Clamp Screw Ass'yClamp Screw Ass'y
-
12-1398-62103-0 Винт струбциныВинт струбцины
-
12-33C8-62104-1 Rivet3-22Rivet3-22
-
13332-62101-0 Pad clamp screwPad clamp screw
-
143G2S62431-0 Tilt Stopper Ass'yTilt Stopper Ass'y
-
15951403-0535 Spring WasherSpring Washer
-
16350-62437-0 Bushing Tilt StopperBushing Tilt Stopper
-
17350-62439-1 Set Plate Tilt StopperSet Plate Tilt Stopper
-
193C8-62421-1 Spring Friction PlateSpring Friction Plate
-
20346-62438-0 Set PieceSet Piece
-
213G2-66351-0 Reverse LockReverse Lock
-
223G2-66313-1 Arm reverse lockArm reverse lock
-
233G2-66319-1 Shaft reverse lock aShaft reverse lock a
-
24945303-0600 E-RingE-Ring
-
253G2-66321-0 Rod reverse lock aRod reverse lock a
-
26951503-0212 Split PinSplit Pin
-
273G2-66312-0 Link reverse lock aLink reverse lock a
-
283G2-66331-0 Spring, reverse lockSpring, reverse lock
-
29350-66315-0 Spring reverse lockSpring reverse lock
-
303G2-66311-0 Lever reverse lockLever reverse lock
-
313V9-05254-0 Shoulder bolt 6-8Shoulder bolt 6-8
-
32941403-0800 WasherWasher
-
333C8-66308-0 New partNew part
-
34346-66333-0 GripGrip
-
35346-66334-0 StopperStopper
-
36338-60218-2 New partNew part
-
413H8-72049-0 LabeLabe
