Drive shaft housing для Tohatsu MFS9.8A2 - 2004 года выпуска`

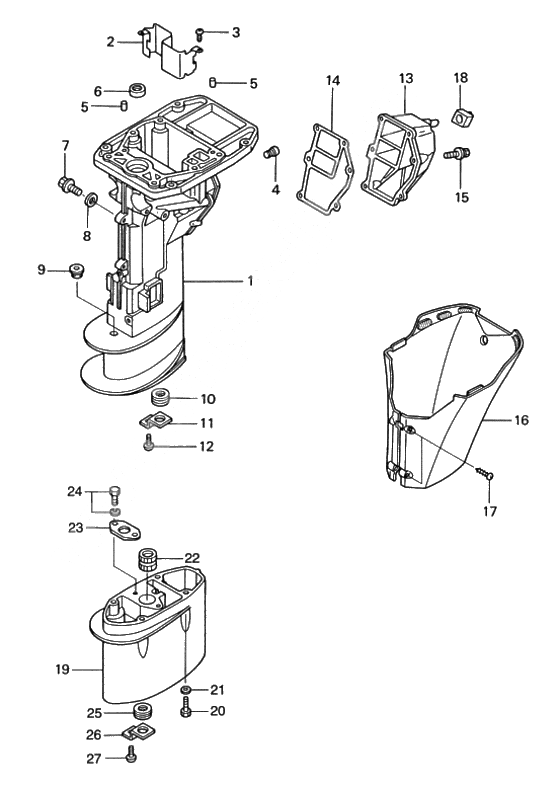

![](/wa-data/public/shop/sheme/tohatsu/5258779acee6b20f76740fb493dbed68.png)
-
№АртикулНазвание
-
13V1S61020-0 Drive shaft housing ass'y (s)
SHORTDrive shaft housing ass'y (s)
SHORT -
13V1S61030-0 Deive shaft housing ass'y(l)
LONGDeive shaft housing ass'y(l)
LONG -
23V1-07440-0 Guide PlateGuide Plate
-
3921503-6510 Stud BoltStud Bolt
-
43H6-07257-0 Exhaust PlugExhaust Plug
-
5345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
63B2-01215-0 Oil seal 12-28-5Oil seal 12-28-5
-
73R3-07405-1 Bolt, DrainBolt, Drain
-
83R3-07406-0 WasherWasher
-
9369-66043-1 Grommet Cam RodGrommet Cam Rod
-
103V1-65204-0 Rubber Mount,13-2.5
FOR TRANSOM S LRubber Mount,13-2.5
FOR TRANSOM S L -
113V1-65203-0 Lock Plate
FOR TRANSOM S LLock Plate
FOR TRANSOM S L -
12921513-0510 Stud Bolt
FOR TRANSOM S LStud Bolt
FOR TRANSOM S L -
133V1-61208-0 Cover,Idol PortCover,Idol Port
-
143V1-61220-0 Gasket,Idle PortGasket,Idle Port
-
15910113-5620 BoltBolt
-
163V1S61225-0 ApronApron
-
173F3-02423-0 Screw 5-30Screw 5-30
-
183V1-61212-0 Grommet,Idle PortGrommet,Idle Port
-
193B2S61110-2 Extension housing ul
FOR TRANSOM ULExtension housing ul
FOR TRANSOM UL -
20916184-0635 Bolt
# 028479XC~ / FOR TRANSOM ULBolt
# 028479XC~ / FOR TRANSOM UL -
21940113-0600 Washer
# 028479XC~ / FOR TRANSOM ULWasher
# 028479XC~ / FOR TRANSOM UL -
223B2-60003-1 Bushing Drive Shaft Housing
FOR TRANSOM ULBushing Drive Shaft Housing
FOR TRANSOM UL -
233V1-64332-0 Stopoer,Bushing
FOR TRANSOM ULStopoer,Bushing
FOR TRANSOM UL -
24910113-5612 Bolt
FOR TRANSOM ULBolt
FOR TRANSOM UL -
253V1-65204-0 Rubber Mount,13-2.5
FOR TRANSOM ULRubber Mount,13-2.5
FOR TRANSOM UL -
263V1-65203-0 Lock Plate
FOR TRANSOM ULLock Plate
FOR TRANSOM UL -
27921513-0510 Stud Bolt
FOR TRANSOM ULStud Bolt
FOR TRANSOM UL
