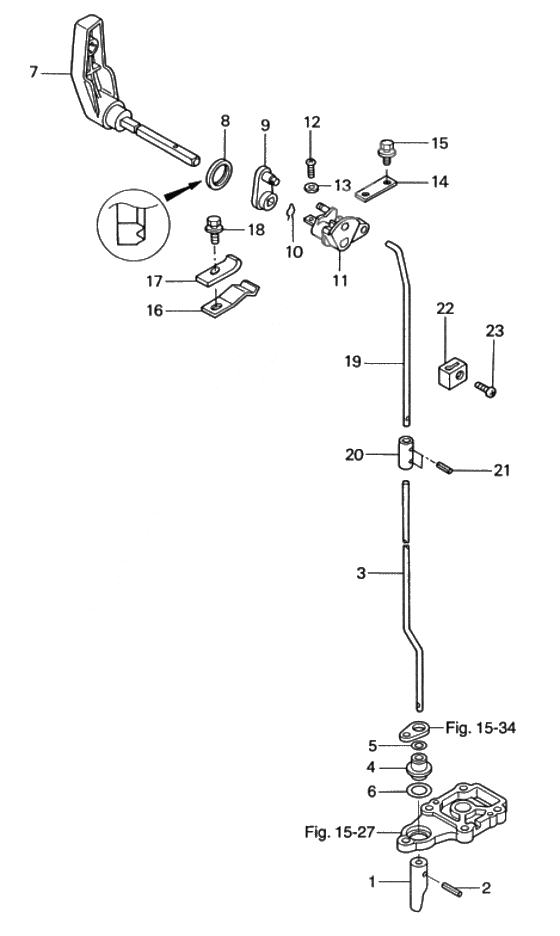

Shift для Tohatsu MFS8A2 - 2004 года выпуска`
-
№АртикулНазвание
-
1369-66011-0 Clutch CamClutch Cam
-
2951407-0310 Spring WasherSpring Washer
-
33V1-66012-0 Cam Rod (S)
FOR TRANSOM SCam Rod (S)
FOR TRANSOM S -
33V1-66013-0 Cam rod (l)
FOR TRANSOM LCam rod (l)
FOR TRANSOM L -
33V1-66014-0 Cam Rod(UL)
FOR TRANSOM ULCam Rod(UL)
FOR TRANSOM UL -
4369-66031-0 Bushing Cam RodBushing Cam Rod
-
5369-66021-1 O?????2.5-4.9O?????2.5-4.9
-
6332-66032-0 O?????2.4-15.4O?????2.4-15.4
-
73V1-66110-0 Shift LeverShift Lever
-
83V1-66187-0 Seal Ring 23-29-3.7Seal Ring 23-29-3.7
-
93V1-66129-0 Shift Lever(EP)Shift Lever(EP)
-
10951703-0800 Snap RetainerSnap Retainer
-
113V1-66225-0 Shift Rod LeverShift Rod Lever
-
12921503-0414 Stud BoltStud Bolt
-
13940103-0400 WasherWasher
-
143V1-66145-0 Holder,Shift Lever ShaftHolder,Shift Lever Shaft
-
15910113-5612 BoltBolt
-
163B2-66113-0 Stopper, shift leverStopper, shift lever
-
173C8-66116-0 Plate Shift LeverPlate Shift Lever
-
18910113-5612 BoltBolt
-
193V1-66211-0 Shift RodShift Rod
-
203V1-66241-0 Joint Shift RodJoint Shift Rod
-
21951403-0310 New partNew part
-
223V1-66302-0 Joint,rverse lock linkJoint,rverse lock link
-
23921513-0612 Stud BoltStud Bolt
