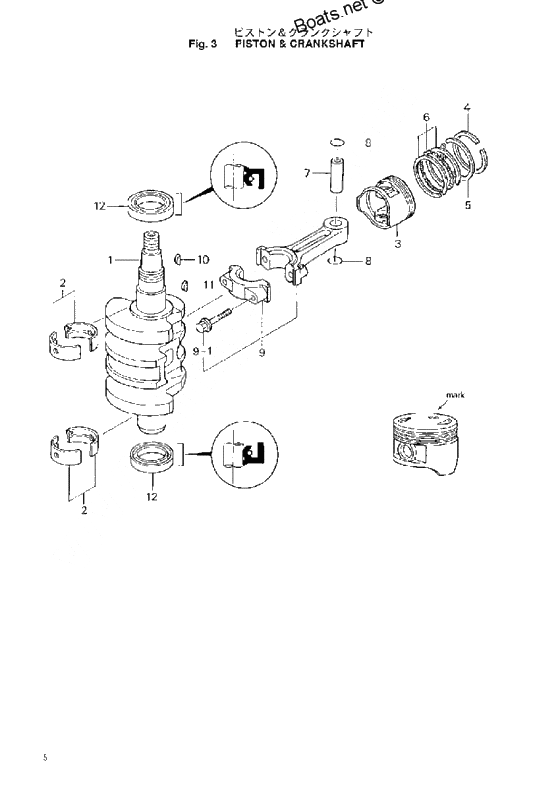

Piston & crank shaft для Tohatsu MFS9.8A - MFS8A2 года выпуска`

№

Артикул

Название
1

3V1-00030-0 Crankshaft Ass'y

Crankshaft Ass'y

31 540 ₽
2

3V1-07407-0 Bearing(Black)
T=1.5 -0.006

Bearing(Black)
T=1.5 -0.006

1 230 ₽
2

3V1-07408-0 Bearring(brown)
T=1.5 -0.006 -0.012

Bearring(brown)
T=1.5 -0.006 -0.012

1 160 ₽
3

3V1-00001-0 Piston

Piston

6 090 ₽
3

3V1-00004-0 Piston 0.5mm o/s
Option

Piston 0.5mm o/s
Option

6 890 ₽
4

3V1-00014-0 Piston Ring 0.5mm O/S
Option

Piston Ring 0.5mm O/S
Option

1 600 ₽
4

3V1-00011-0 Piston Ring TOP

Piston Ring TOP

1 540 ₽
5

3V1-00012-0 Piston Ring 2nd

Piston Ring 2nd

1 470 ₽
5

3V1-00015-0 Piston Ring 2nd (0.5mm O/S)
Option

Piston Ring 2nd (0.5mm O/S)
Option

1 470 ₽
6

3V1-00013-0 Piston Ring Oil

Piston Ring Oil

1 710 ₽
6

3V1-00016-0 Piston Ring Oil 0.5mm O/S
Option

Piston Ring Oil 0.5mm O/S
Option

1 540 ₽
7

332-00021-0 Палец поршня

Палец поршня

1 540 ₽
8

350-00024-1 Clip piston pin

Clip piston pin

320 ₽
9

3V1-00040-0 Connecting Rod

Connecting Rod

13 750 ₽
9-1

3H6-00059-0 Bolt, Connecting Rod

Bolt, Connecting Rod

880 ₽
10

3T5-10131-0 Key, Drive Pulley

Key, Drive Pulley

480 ₽
11

3T5-00131-0 Key, Drive Pulley

Key, Drive Pulley

190 ₽
12

3V1-00121-0 Oil Seal 30-45-8

Oil Seal 30-45-8

2 030 ₽
