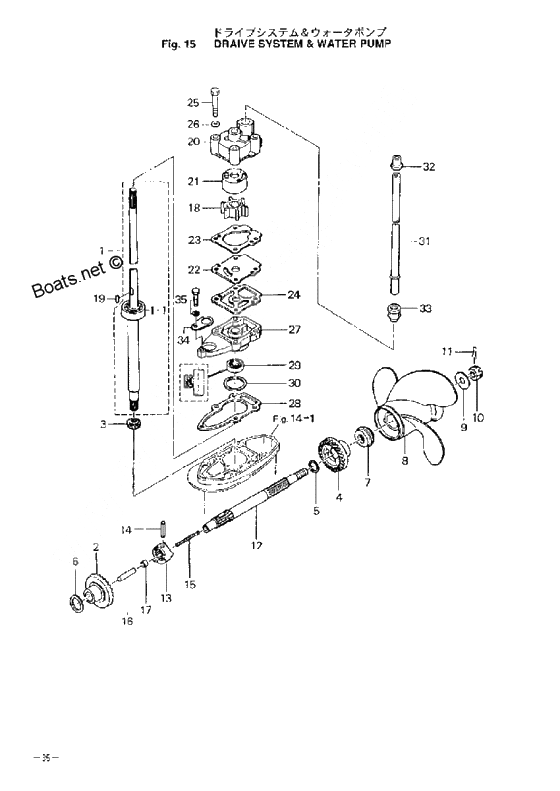

Drive system & water pump для Tohatsu MFS8A - 2004 года выпуска`

№

Артикул

Название
1

3B2-64301-0 Driveshaft
for Transom S""

Driveshaft
for Transom S""

9 180 ₽
3B2-64306-1 Driveshaft

Driveshaft

16 540 ₽
1

3B2-64302-0 Drive shaft l
for Transom L""

Drive shaft l
for Transom L""

9 630 ₽
1

3B2-64303-0 Drive Shaft UL
for Transom UL""

Drive Shaft UL
for Transom UL""

10 520 ₽
3B2-64303-1 Drive Shaft UL

Drive Shaft UL

11 060 ₽
1-1

9601-0-6301 Ball Bearing

Ball Bearing

2 000 ₽
2

3B2-64010-0 Bevel Gear A

Bevel Gear A

9 540 ₽
3

3B2-64020-0 Bevel Gear B

Bevel Gear B

2 130 ₽
4

3B2-64030-0 Bevel Gear C

Bevel Gear C

9 270 ₽
5

369-64032-0 Washer

Washer

630 ₽
6

369-64014-0 Shim 21-28-0.1

Shim 21-28-0.1

660 ₽
6

369-64015-0 Shim 21-28-0.15

Shim 21-28-0.15

660 ₽
7

3B2-64230-1 Thrust holder ass'y

Thrust holder ass'y

1 060 ₽
8

3B2W64514-0 Propller 7
8A STD L" and "UL""

Propller 7
8A STD L" and "UL""

12 330 ₽
8

3B2-64515-0 Prop 8 & 9.8 hp (8.5 dia. x 8.0 pitch)

Prop 8 & 9.8 hp (8.5 dia. x 8.0 pitch)

12 330 ₽
3B2B64515-1 Prop 8 & 9.8 hp (8.5 dia. x 8.0 pitch)

Prop 8 & 9.8 hp (8.5 dia. x 8.0 pitch)

25 770 ₽
8

3B2-64517-0 Propeller (8.5), 3 x 8.9 x 8.3
9.8A STD L", "UL" and 8A STD "S""

Propeller (8.5), 3 x 8.9 x 8.3
9.8A STD L", "UL" and 8A STD "S""

12 330 ₽
8

3B2-64518-0 Prop 8 & 9.8 hp (8.5 dia x 9.5 pitch) - no longer available
9.8A STD S""

Prop 8 & 9.8 hp (8.5 dia x 9.5 pitch) - no longer available
9.8A STD S""

11 960 ₽
3B2B64519-1 Prop 8 & 9.8 hp (8.5 dia x 9.5 pitch) - no longer available

Prop 8 & 9.8 hp (8.5 dia x 9.5 pitch) - no longer available

9 990 ₽
8

3B2-64513-0 Prop 8 & 9.8 hp (8.9 dia x 7 pitch) black

Prop 8 & 9.8 hp (8.9 dia x 7 pitch) black

12 180 ₽
3B2B64514-0 Prop 8 & 9.8 hp (8.9 dia x 7 pitch) black

Prop 8 & 9.8 hp (8.9 dia x 7 pitch) black

12 940 ₽
9

369-64124-0 Washer

Washer

840 ₽
10

369-64121-0 Nut Propeller

Nut Propeller

1 230 ₽
11

951503-0318 New part

New part

240 ₽
12

3V1-64211-0 Propeller Shaft

Propeller Shaft

11 420 ₽
13

3B2-64215-0 Clutch

Clutch

6 070 ₽
14

301-64217-0 Pin Clutch

Pin Clutch

260 ₽
15

3V1-64221-0 Spring,Clutch

Spring,Clutch

540 ₽
16

369-64223-0 Push Rod Clutch

Push Rod Clutch

1 220 ₽
17

3B2-64222-0 Spring Holder, Clutch

Spring Holder, Clutch

750 ₽
18

3B2-65021-1 Крыльчатка водной помпы

Крыльчатка водной помпы

3 080 ₽
19

3B2-65022-0 New part

New part

560 ₽
20

3B2-65016-0 Water Pump Case

Water Pump Case

3 500 ₽
21

3B2-65011-0 New part

New part

1 290 ₽
22

3B2-65025-0 Guide Plate Water Pump

Guide Plate Water Pump

570 ₽
24

3B2-65029-0 New part

New part

180 ₽
26

940113-0600 Washer

Washer

140 ₽
27

3B2-65017-0 Water pump case lower

Water pump case lower

2 030 ₽
28

3B2-65020-0 Gasket Water Pump Case Lower

Gasket Water Pump Case Lower

720 ₽
29

309-60111-0 Oil Seal 12-24-8

Oil Seal 12-24-8

1 010 ₽
30

3B2-64023-0 Gap liner ,28-36.8
T=0.1, 0.15, 0.3

Gap liner ,28-36.8
T=0.1, 0.15, 0.3

110 ₽
31

3V1-65120-0 Труба водная
for Transom UL""

Труба водная
for Transom UL""

1 900 ₽
31

3V1-65100-0 Труба водная
for Transom S""

Труба водная
for Transom S""

1 250 ₽
31

3V1-65110-0 Труба водная
for Transom L""

Труба водная
for Transom L""

1 570 ₽
32

3V1-65206-0 Seal Upper,water Pipe

Seal Upper,water Pipe

190 ₽
33

331-65014-0 Lock ring coolibg water pipe

Lock ring coolibg water pipe

320 ₽
34

369-66033-0 Stopper Cam Rod Bushing

Stopper Cam Rod Bushing

360 ₽
