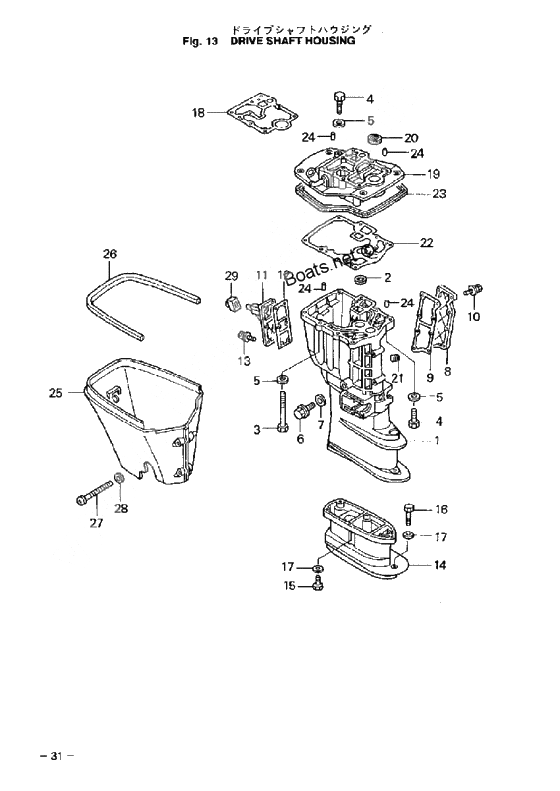

Drive shaft housing для Tohatsu MFS30A - 2004 года выпуска`
-
№АртикулНазвание
-
13R0S61191-0 Drive shaft housing s
ShortDrive shaft housing s
Short -
13R0S61192-0 Drive shaft housing l
LongDrive shaft housing l
Long -
23R0-65207-0 Plate,Water PipePlate,Water Pipe
-
33B7-61017-2 Bolt, 8-105Bolt, 8-105
-
43R0-61017-0 Bolt 8-40Bolt 8-40
-
63R3-07405-1 Bolt, DrainBolt, Drain
-
73R3-07406-0 WasherWasher
-
83R0S61028-0 Cover,drainCover,drain
-
93R0-61029-0 Gascket,Drain CoverGascket,Drain Cover
-
113R0S61208-0 Cover,idle portCover,idle port
-
123R0-61207-0 Gasket,Idole PortGasket,Idole Port
-
14346S61110-5 Extension housing ulExtension housing ul
-
173P0-66233-0 New partNew part
-
183R0-01303-0 Gasket,Engine BaseGasket,Engine Base
-
193R0S01301-0 Engine base
With NippleEngine base
With Nipple -
213H6-07257-0 Exhaust PlugExhaust Plug
-
223R0-61012-0 Gasket,Drive Shaft HousingGasket,Drive Shaft Housing
-
233R0-67116-0 Seal Rubber,Engine BaseSeal Rubber,Engine Base
-
24345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
253R0S61210-0 ApronApron
-
263R0-61213-0 Seal Rubber,ApronSeal Rubber,Apron
-
273R0-61217-0 Tapping Screw,6-60Tapping Screw,6-60
-
28940113-0600 WasherWasher
-
293R0-61212-0 Grommet,ApronGrommet,Apron
Все узлы модели:
- Assembly kit
- Camshaft & oil pump
- Carburetor
- Cylinder head
- Cylinder
- Drive shaft & water pump
- • Drive shaft housing
- Electric parts
- Gas assist, power trim & tilt
- Gear case
- Intake manifold & fuel body
- Intank valve & exhaust valve
- Lower motor cover
- Magneto
- Optional parts, accessories
- Piston & crank shaft
- Power trim & tilt, motor cover lower
- Recoil starter
- Separate fuel tank
- Shift & cam rod
- Shift
- Starter motor
- Steering handle, tiller handle
- Stern bracket & reverse lock
- Swivel bracket
- Upper motor cover
