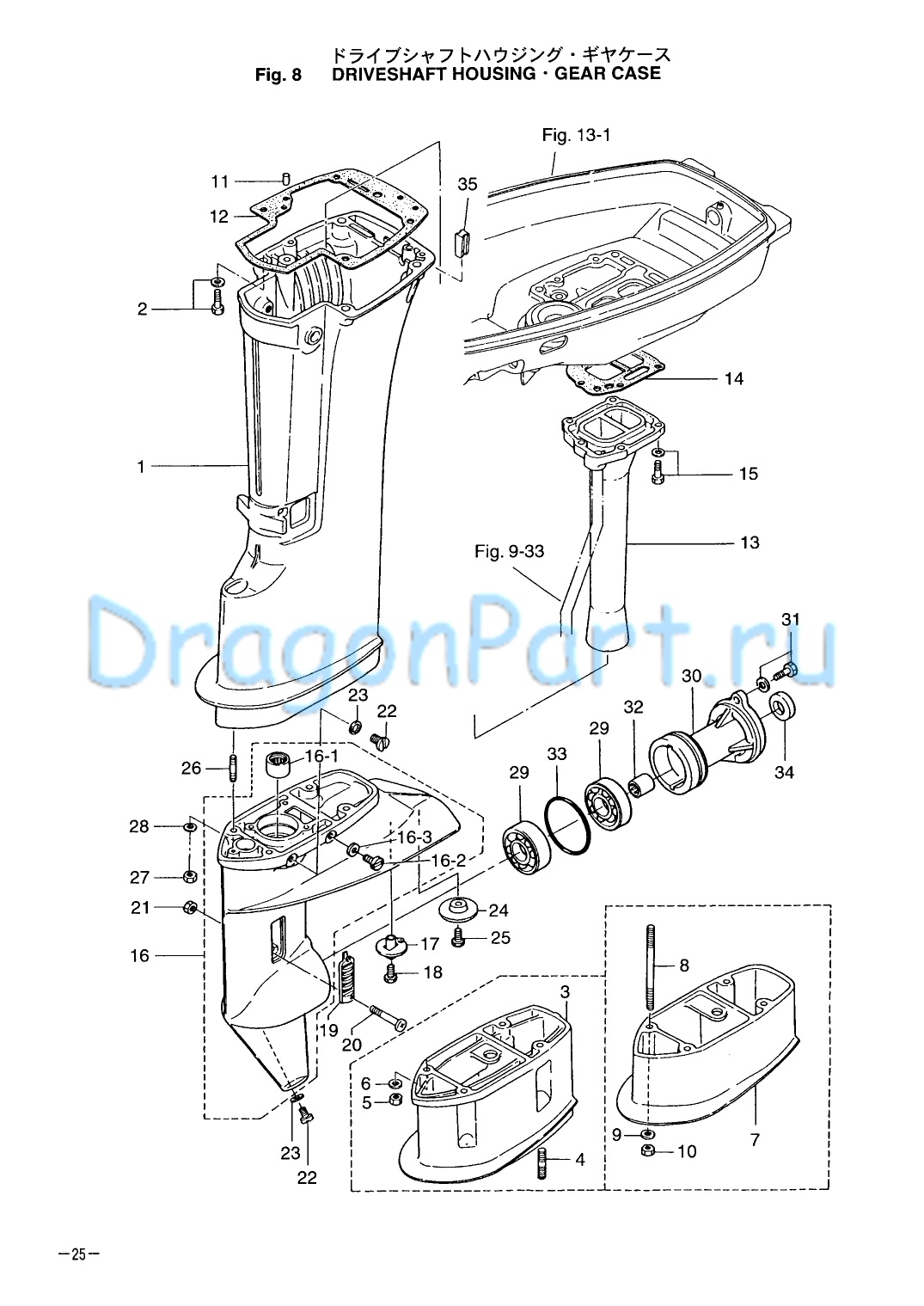

DRIVESHAFT HOUSING GEAR CASE для Tohatsu M9.9D2 - 2004 года выпуска`
-
№АртикулНазвание
-
1350S61020-3 Drive Shaft Housing "S"
for Transom "S"Drive Shaft Housing "S"
for Transom "S" -
1350S61030-3 Drive Shaft Housing "L"
for Transom "L", "UL"Drive Shaft Housing "L"
for Transom "L", "UL" -
2910113-5845 BoltBolt
-
3350S61110-0 Extension Housing "UL"
for Transom "UL"Extension Housing "UL"
for Transom "UL" -
4915313-0825 Stud Bolt
for Transom "UL"Stud Bolt
for Transom "UL" -
5930113-0800 NutNut
-
63P0-66233-0 Washer, 8.1-16-1.5Washer, 8.1-16-1.5
-
7350S61120-0 “ Extension Housing "LL"
for Transom "LL"“ Extension Housing "LL"
for Transom "LL" -
8915313-8100 Stud Bolt
for Transom "LL"Stud Bolt
for Transom "LL" -
93P0-66233-0 Washer, 8.1-16-1.5Washer, 8.1-16-1.5
-
10930113-0800 NutNut
-
11345-01111-0 Knock, 6-12Knock, 6-12
-
12350-61012-1 Gasket, Drive Shaft HousingGasket, Drive Shaft Housing
-
13362-02311-0 Exhaust PipeExhaust Pipe
-
14362-02312-0 Gasket, Exhaust PipeGasket, Exhaust Pipe
-
15910103-5625 Bolt
or 910113-5625Bolt
or 910113-5625 -
16398S60000-0 Gear CaseGear Case
-
16-1350-60211-0 * Needle Bearing,16~24~20* Needle Bearing,16~24~20
-
16-2332-60005-2 * Water Plug* Water Plug
-
16-3332-60006-0 * Gasket, 8.1-15-1* Gasket, 8.1-15-1
-
17369-60206-0 Sub Water StrainerSub Water Strainer
-
18921813-0620 Screw
or 921803-0620Screw
or 921803-0620 -
19362-60206-0 Water StrainerWater Strainer
-
20921513-0430 Screw
or 921503-0430Screw
or 921503-0430 -
21930406-0400 Nylon Nut, 4P-0.7Nylon Nut, 4P-0.7
-
22332-60005-2 Oil PlugOil Plug
-
23332-60006-0 Gasket, 8.1 T 5-1Gasket, 8.1 T 5-1
-
243V9-60218-0 AnodeAnode
-
25910113-0616 Bolt
or 910103-0616Bolt
or 910103-0616 -
26915313-0825 Stud BoltStud Bolt
-
27930113-0800 NutNut
-
283P0-66233-0 Washer, 8.1-16T.5Washer, 8.1-16T.5
-
299601-0-6205 Ball Bearing, 6205Ball Bearing, 6205
-
30362S60101-0 Housing, Propeller ShaftHousing, Propeller Shaft
-
31910113-5625 BoltBolt
-
32362-60211-0 Needle Bearing, 17-24-20Needle Bearing, 17-24-20
-
33121-32071-0 O-Ring, 2.4-59.6O-Ring, 2.4-59.6
-
34346-65013-0 Oil Seal, 17-30-9Oil Seal, 17-30-9
-
35398-61207-0 Grommet, Idle PortGrommet, Idle Port
