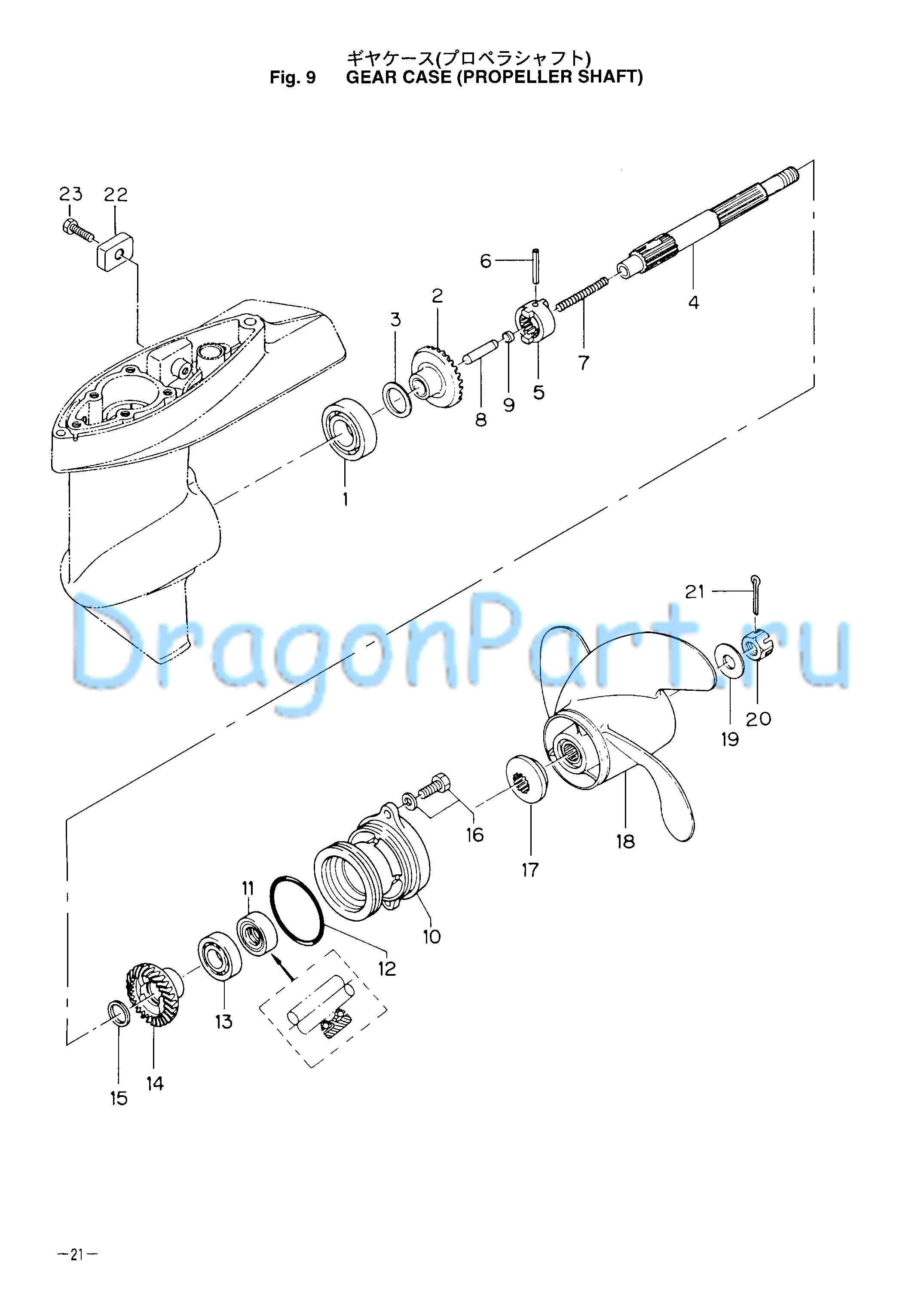

GEAR CASE (PROPELLER SHAFT) для Tohatsu M4C - 2004 года выпуска`
-
№АртикулНазвание
-
19601-0-6004 Ball Beari ng, 6004Ball Beari ng, 6004
-
2369-64010-2 Bevel Gear "A"Bevel Gear "A"
-
3369-64014-0 Shim, 21-28-0.1Shim, 21-28-0.1
-
3369-64015-0 Shim, 21-28-0.15Shim, 21-28-0.15
-
4369-64211-1 Propeller ShaftPropeller Shaft
-
5301-64215-1 ClutchClutch
-
6301-64217-0 Spring Pin, 3.5-28Spring Pin, 3.5-28
-
7393-64221-0 Spring, ClutchSpring, Clutch
-
8369-64223-0 Push Rod, ClutchPush Rod, Clutch
-
9369-64222-0 Spring Holder, ClutchSpring Holder, Clutch
-
10369S60101-1 Housing, Prooeller ShaftHousing, Prooeller Shaft
-
11369-60111-0 Oil Seal 15-28-10Oil Seal 15-28-10
-
12345-65015-0 0-Ring, 3.2-470-Ring, 3.2-47
-
139601-0-6002 Ball Bearing, 6002Ball Bearing, 6002
-
14369-64030-2 Bevel Gear C"Bevel Gear C"
-
15369-64032-0 Washer, 15.2-19-1.9Washer, 15.2-19-1.9
-
16910113-5616 BoltBolt
-
17369-64231-1 Thrust Holder, PropellerThrust Holder, Propeller
-
18369-64514-1 Propeller ( 7) , 3 x 7.9 x 7.0
4C Std for Transom "S", "L"Propeller ( 7) , 3 x 7.9 x 7.0
4C Std for Transom "S", "L" -
18369-64516-2 Propeller (8) , 3 X 7.9 X 7.3
5B/5BS Std for Transom "s","L", "UL"Propeller (8) , 3 X 7.9 X 7.3
5B/5BS Std for Transom "s","L", "UL" -
18369-64518-1 Propeller ( 9) , 3 x 7.9 x 9.0Propeller ( 9) , 3 x 7.9 x 9.0
-
19369-64124-0 Washer, 10.5-28-2Washer, 10.5-28-2
-
20369-64121-0 Nut, PropellerNut, Propeller
-
21951503-0318 Split Pin, 3-18Split Pin, 3-18
-
223H6-60218-0 Anode
5B # 16748- 4C # 80467-Anode
5B # 16748- 4C # 80467- -
23910103-0616 BoltBolt
