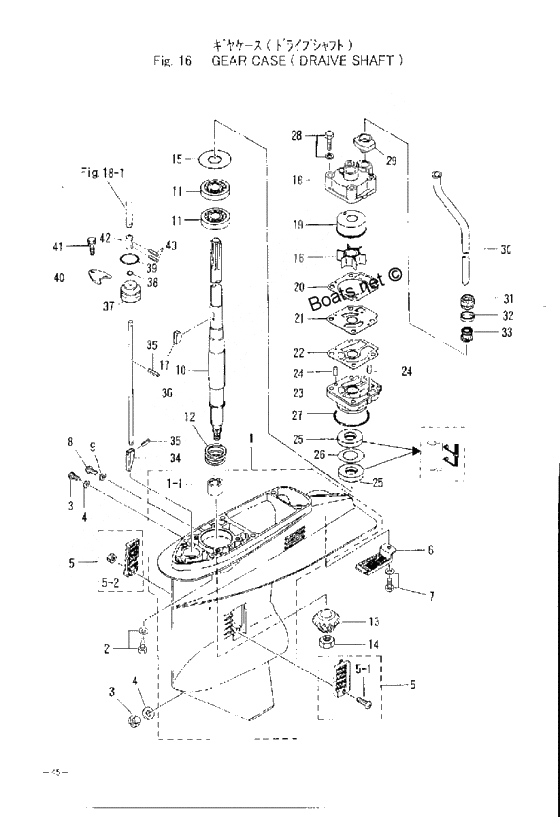

Gear case (drive shaft) для Tohatsu M40D2 - 2004 года выпуска`

№

Артикул

Название
1

3C8S60000-0 Gear case ass'y
for transom S", "L""

Gear case ass'y
for transom S", "L""

41 170 ₽
1

3C8S60090-0 Gear case ass'y
for transom UL""

Gear case ass'y
for transom UL""

42 640 ₽
1-1

345-60211-0 Needle Bearing 22-30-30

Needle Bearing 22-30-30

4 020 ₽
3

332-60005-2 Oil Plug Water Plug

Oil Plug Water Plug

1 050 ₽
4

332-60006-0 Gasket (8.1x15.1)

Gasket (8.1x15.1)

200 ₽
5

3C8-60235-1 Water Strainer Set

Water Strainer Set

910 ₽
5-1

921503-0438 Stud Bolt

Stud Bolt

110 ₽
6

3C8-60204-0 Sub Water Strainer

Sub Water Strainer

550 ₽
8

3B7-60015-1 Water Plug

Water Plug

420 ₽
9

3B7-60016-0 O-Ring

O-Ring

100 ₽
10

3C8-64304-0 Drive shaft ll
for transom LL""

Drive shaft ll
for transom LL""

21 140 ₽
10

3C8-64302-0 Drive shaft l

Drive shaft l

20 680 ₽
10

3C8-64303-0 Drive Shaft UL
for transom UL""

Drive Shaft UL
for transom UL""

21 770 ₽
10

3C8-64301-0 Drive Shaft S
for transom S""

Drive Shaft S
for transom S""

20 200 ₽
11

3C8-60213-0 Ball Bearing 6304

Ball Bearing 6304

1 530 ₽
12

3C8-64327-0 Spring Drive Shaft

Spring Drive Shaft

220 ₽
13

3C8-64020-1 Bevel Gear B

Bevel Gear B

5 170 ₽
13

3C8-64020-2 New part
#037940XC-

New part
#037940XC-

10 710 ₽
14

3C8-64027-0 Nut Bevel Gear B

Nut Bevel Gear B

1 460 ₽
15

345-64084-0 Shim,41-51.5-0.5

Shim,41-51.5-0.5

780 ₽
15

345-64082-0 Shim,41-51.5-0.15

Shim,41-51.5-0.15

270 ₽
15

345-64083-0 Shim,41-51.5-0.3

Shim,41-51.5-0.3

680 ₽
15

345-64081-0 Shim, 41-51.5-0.1

Shim, 41-51.5-0.1

750 ₽
16

3C8-65021-2 Impeller water pump
40D2#47226-

Impeller water pump
40D2#47226-

4 690 ₽
17

332-65022-0 Key, pump impeller

Key, pump impeller

1 430 ₽
18

3C8-65016-1 Pump?case
50D2#59260-

Pump?case
50D2#59260-

2 700 ₽
19

3C8-65011-1 Liner,pump?case
40D2#43540-

Liner,pump?case
40D2#43540-

1 470 ₽
20

3C8-65018-1 Прокладка насоса
40D2#43540-

Прокладка насоса
40D2#43540-

140 ₽
21

3C8-65025-0 GUIDE PLATE,PUMP

GUIDE PLATE,PUMP

840 ₽
22

3C8-65029-0 Gasket, pump guide plate

Gasket, pump guide plate

150 ₽
23

3C8-65017-1 Lower Water Pump Case

Lower Water Pump Case

3 930 ₽
24

334-65012-0 Стопор

Стопор

720 ₽
25

3C8-60223-0 Packing 17-33-6

Packing 17-33-6

1 140 ₽
26

3C8-64084-0 Shim,32.9-26-0.5

Shim,32.9-26-0.5

360 ₽
27

345-65015-0 O-Ring

O-Ring

360 ₽
29

3C8-65014-0 Lower Seal Rubber Water Pipe

Lower Seal Rubber Water Pipe

890 ₽
30

3C8-65120-0 Water Pipe UL
for transom UL""

Water Pipe UL
for transom UL""

2 120 ₽
30

3C8-65100-0 Water pipe s
for transom S""

Water pipe s
for transom S""

1 650 ₽
30

3C8-65110-0 Water Pipe L
for transom L""

Water Pipe L
for transom L""

1 800 ₽
30

3C8-65130-0 Water pipe ll
for transom LL""

Water pipe ll
for transom LL""

1 960 ₽
31

345-65206-0 Upper Seal Rubber Water Pipe

Upper Seal Rubber Water Pipe

360 ₽
32

345-65205-0 Collar, 18-20-4.5

Collar, 18-20-4.5

400 ₽
33

346-65204-0 Lock Rubber Water Pipe

Lock Rubber Water Pipe

480 ₽
34

3C8-66011-0 Clutch Cam

Clutch Cam

4 110 ₽
35

951407-0312 Spring Washer

Spring Washer

210 ₽
36

3C8-66012-0 Cam rod s
for transom S""

Cam rod s
for transom S""

2 030 ₽
36

3C8-66013-0 Cam Rod L
for transom L""

Cam Rod L
for transom L""

2 220 ₽
36

3C8-66015-0 Cam rod ll
for transom LL""

Cam rod ll
for transom LL""

2 410 ₽
36

3C8-66014-0 Cam Rod UL
for transom UL""

Cam Rod UL
for transom UL""

2 600 ₽
37

3C8-66031-1 Bushing Cam Rod

Bushing Cam Rod

1 530 ₽
38

332-66021-0 O-Ring

O-Ring

360 ₽
39

3C8-66032-0 O-Ring

O-Ring

680 ₽
40

353-66024-0 Stopper

Stopper

420 ₽
41

910103-6612 Bolt

Bolt

290 ₽
42

3C8-66241-0 Joint Shift Rod

Joint Shift Rod

630 ₽
43

951403-0312 Spring Washer

Spring Washer

300 ₽
