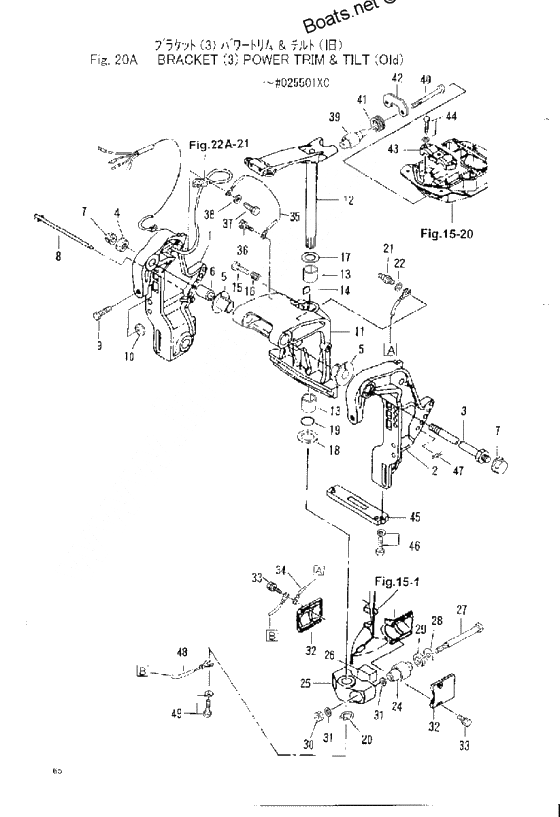

Bracket (3) power trim & tilt (old) для Tohatsu M40D2 - 2004 года выпуска`
-
№АртикулНазвание
-
13C8S77211-0 Stern bracket r
StarboardStern bracket r
Starboard -
23C8S77212-0 Stern bracket l
PortStern bracket l
Port -
33B7-62191-0 Bracket Bolt Ass'yBracket Bolt Ass'y
-
4346-62124-0 Bracket Nut(Nylon)Bracket Nut(Nylon)
-
53C8-77213-0 Bushing Bracket BoltBushing Bracket Bolt
-
63C8-62132-0 BushingBushing
-
7346-62127-0 Cap,Bracket Bolt
for F" type"Cap,Bracket Bolt
for F" type" -
83R0-77118-0 Thrust RodThrust Rod
-
93C8-77214-0 Винт струбциныВинт струбцины
-
10332-62101-0 Pad clamp screwPad clamp screw
-
113C8S77215-2 Поворотный кронштейн
40D2#46567-Поворотный кронштейн
40D2#46567- -
123C8S62010-2 Steering shaft ass'y
40D2#48962-Steering shaft ass'y
40D2#48962- -
13345-62417-0 Bushing Steering Shaft
40D#38314-Bushing Steering Shaft
40D#38314- -
14345-62441-0 Friction PlateFriction Plate
-
16346-62421-1 Spring Friction PlateSpring Friction Plate
-
173A0-62423-2 Upper Thrust Plate
40D2#46567-Upper Thrust Plate
40D2#46567- -
18346-62424-1 Trust Plate LowerTrust Plate Lower
-
19345-62415-0 O-Ring
50D#54211-O-Ring
50D#54211- -
20945103-2500 ClipClip
-
21344-67177-0 МасленкаМасленка
-
22940103-0600 Washer
or 940113-0600Washer
or 940113-0600 -
243C8-61302-0 Lower Mount RubberLower Mount Rubber
-
253C8S61411-2 Mount bracket
50D2#62427-Mount bracket
50D2#62427- -
263C8-61336-0 Damper RubberDamper Rubber
-
273C8-61321-1 Bolt Lower Mount RubberBolt Lower Mount Rubber
-
28353-61334-0 WasherWasher
-
293C7-61338-0 Damper RubberDamper Rubber
-
30930403-1200 Nylon NutNylon Nut
-
323C8S61342-0 Cap lower mount rubberCap lower mount rubber
-
343C8-62396-0 Ground Wire
L=210Ground Wire
L=210 -
353C8-62158-0 Ground Wire
L=130Ground Wire
L=130 -
36910113-5612 BoltBolt
-
383C8-66308-0 New part
PTT P" type"New part
PTT P" type" -
393E3-61301-1 Upper Mount RobberUpper Mount Robber
-
40353-61307-0 Bolt mount rubber upperBolt mount rubber upper
-
413E3-61333-0 Upper Damper RubberUpper Damper Rubber
-
423E3-61335-0 Upper Lock PlateUpper Lock Plate
-
433C8S61341-0 Cap upper mount rubberCap upper mount rubber
-
453C7-60218-2 Anode, Stern BracketAnode, Stern Bracket
-
46910103-6630 BoltBolt
-
47951603-1000 R-PinR-Pin
-
483A3-62396-0 New part
L=110New part
L=110
