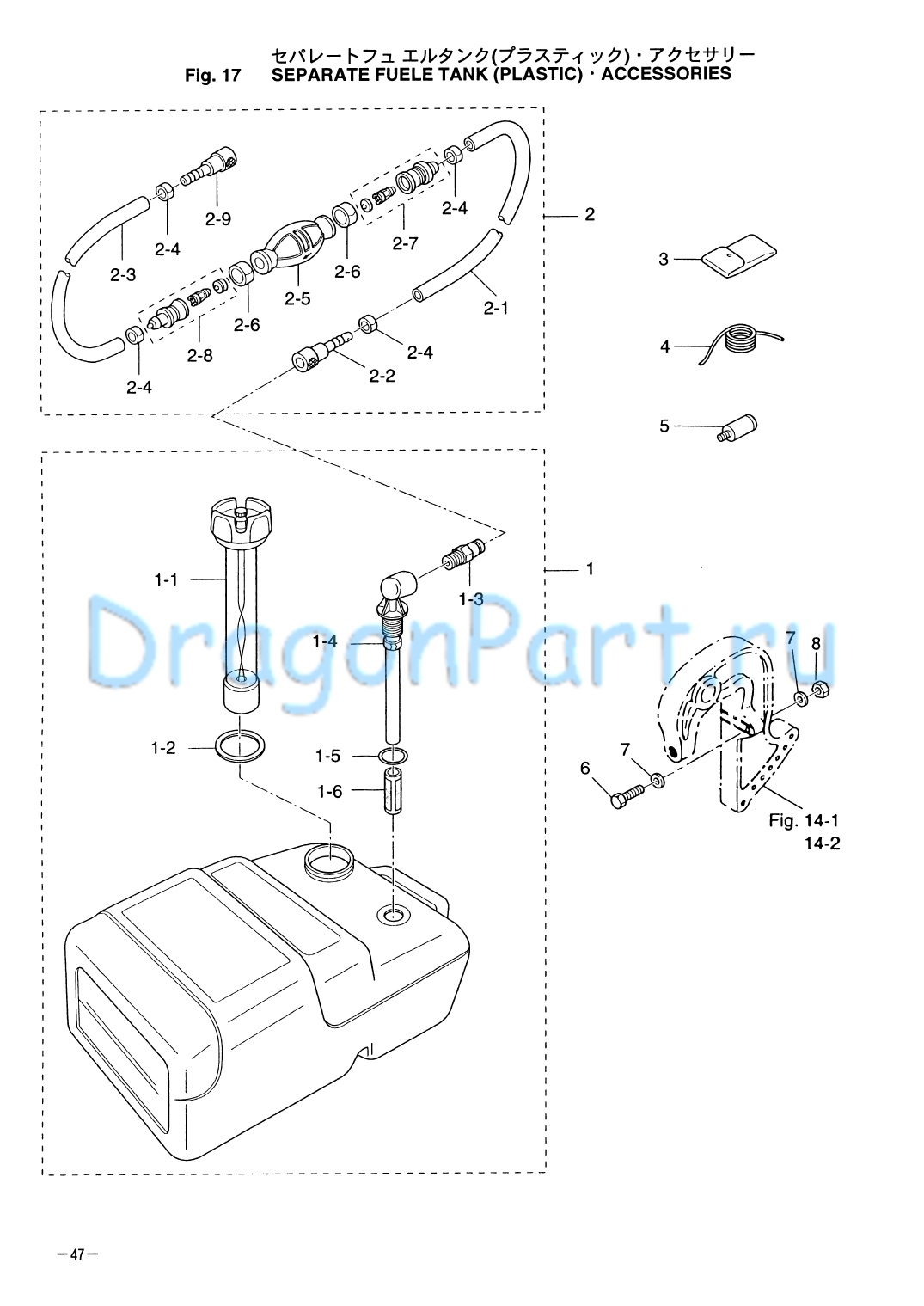

SEPARATE FUELE TANK (PLASTIC) ACCESSORIES для Tohatsu M25C3 - 2004 года выпуска`
-
№АртикулНазвание
-
13C7-70177-0 Fuel Tank (25L)
UNIQUEFuel Tank (25L)
UNIQUE -
1-13C7-70050-0 * Fuel Gauge Vented Cap* Fuel Gauge Vented Cap
-
1-23C7-70021-0 * Cap Gasket* Cap Gasket
-
1-33E0-70270-0 * Male Quick Connector* Male Quick Connector
-
1-43C7-70155-0 * Elbow Tubing and Clamp Assy* Elbow Tubing and Clamp Assy
-
1-53C7-70199-0 * O-Ring* O-Ring
-
1-63C7-70113-0 * Filter* Filter
-
23B7-70200-3 Primer Bulb AssyPrimer Bulb Assy
-
2-198AB-7-1600 * Fuel Pipe* Fuel Pipe
-
2-23B2-70281-0 * Fuel Connector (Tank side, Female)* Fuel Connector (Tank side, Female)
-
2-398AB-7-0700 * Fuel Pipe* Fuel Pipe
-
2-4332-70201-0 * Clamp* Clamp
-
2-53C7-70211-0 * Primer Bulb* Primer Bulb
-
2-63C7-70217-0 * Clamp* Clamp
-
2-73C7-70220-1 * Joint “A” Ass y IN* Joint “A” Ass y IN
-
2-83C7-70224-1 * Joint “A” Assy OUT* Joint “A” Assy OUT
-
2-93B2-70250-1 * Fuel Connector (Engine side, Female)* Fuel Connector (Engine side, Female)
-
33C8-72100-1 ToolTool
-
43B7-72201-0 Rope
Ø6-1600Rope
Ø6-1600 -
5336-60007-0 Flushing Attachment
OptionFlushing Attachment
Option -
6916113-0885 Bolt
EP Type StandardBolt
EP Type Standard -
7940113-0800 Washer
EP Type StandardWasher
EP Type Standard -
8930113-0800 Nut
EP Type StandardNut
EP Type Standard
