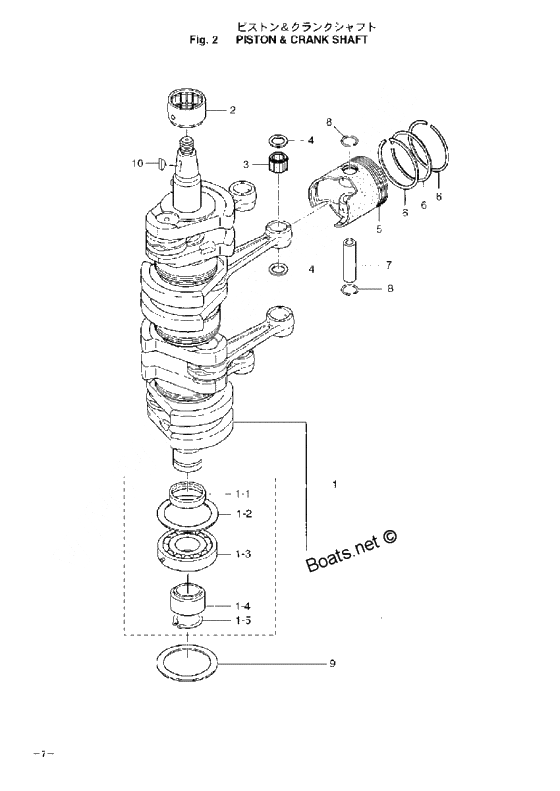

Piston & crank shaft для Tohatsu M115A2 - 2004 года выпуска`
-
№АртикулНазвание
-
13T1-00030-0 Crankshaft assyCrankshaft assy
-
1-13B7-00116-0 Spacer, 40-52-7Spacer, 40-52-7
-
1-23B7-00115-0 WasherWasher
-
1-33C7-00118-0 Bearing, 6208Bearing, 6208
-
1-43T7-00119-0 Spacer, 35-48.6-16Spacer, 35-48.6-16
-
1-5945107-3500 C-RingC-Ring
-
23C7-00113-0 Main Bearing, UpperMain Bearing, Upper
-
33T1-00042-0 Needle bearing 23-28-28Needle bearing 23-28-28
-
43T1-00046-0 Washer small end bearingWasher small end bearing
-
53T1-00001-0 Piston (standard)Piston (standard)
-
53T1-00004-0 Piston (.5mm o/z)
OptionPiston (.5mm o/z)
Option -
63C7-00014-0 Поршневые кольца
OptionПоршневые кольца
Option -
63C7-00011-0 Piston ring 1st(std)Piston ring 1st(std)
-
73T1-00021-0 Piston PinPiston Pin
-
83T1-00024-0 Clip piston pinClip piston pin
-
10334-00131-0 Key MagnetoKey Magneto
