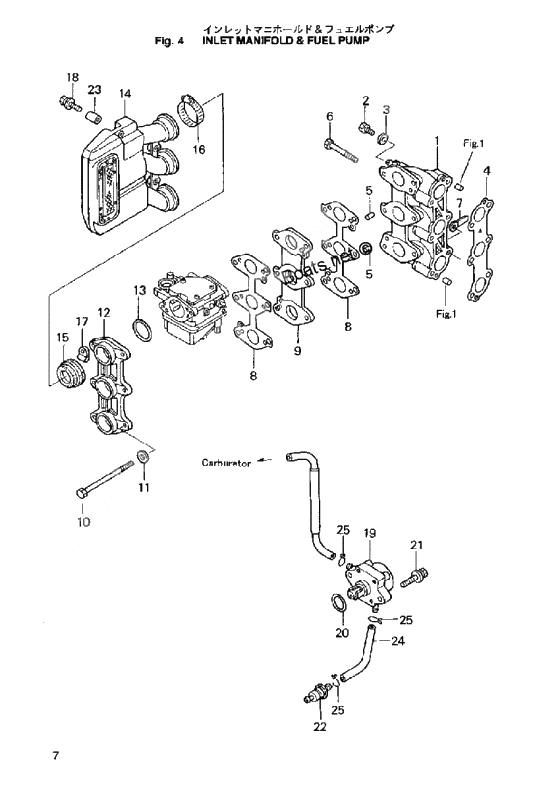

Intake manifold & fuel body для Tohatsu MFS30A - 2003 года выпуска`
-
№АртикулНазвание
-
13R0-02010-0 Inlet manifold ass'yInlet manifold ass'y
-
23R0-02095-0 Bolt,5-10Bolt,5-10
-
33R0-02112-0 WasherWasher
-
43R0-02104-0 Gasket,Inlet ManifoldGasket,Inlet Manifold
-
5345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
7309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
83S8-02011-0 Gasket,caburetorGasket,caburetor
-
93S8-03952-0 InsulatorInsulator
-
103R0-03215-0 Bolt,6-100Bolt,6-100
-
11940113-0600 Washer
or 940103-0600Washer
or 940103-0600 -
123R0-02416-0 Frange,air silencerFrange,air silencer
-
133F3-02012-0 O-RingO-Ring
-
143R0-02412-0 Air SilencerAir Silencer
-
153R0-02418-0 Seal rubber,air silencerSeal rubber,air silencer
-
163R0-02426-0 Clamp,60Clamp,60
-
17345-06915-0 Clamp 6.5-14Clamp 6.5-14
-
193H8-04000-1 Fuel Pump Ass'yFuel Pump Ass'y
-
20345-62415-0 O-RingO-Ring
-
22369-02230-0 Фильтр топливныйФильтр топливный
-
233A0-76079-0 Collar, 6.2-9-7.5Collar, 6.2-9-7.5
-
25338-02215-0 ClipClip
