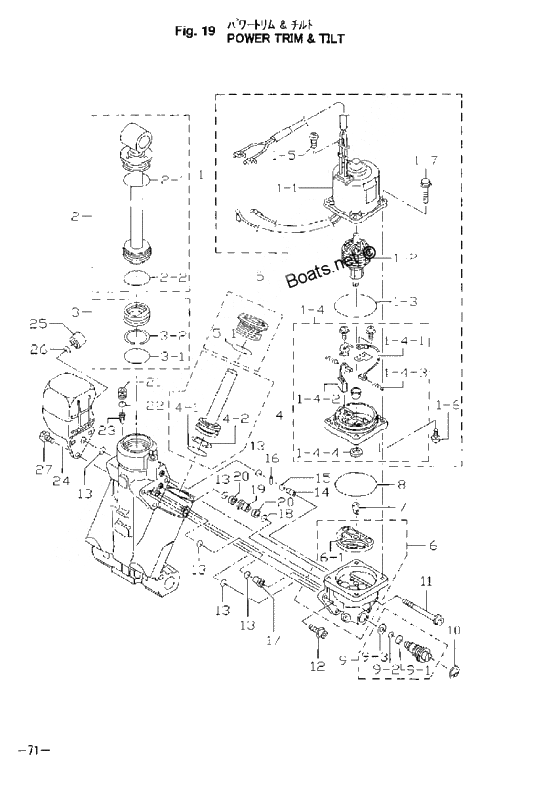

Power trim & tilt для Tohatsu MD90B - 2003 года выпуска
-
№АртикулНазвание
-
13T9-77180-0 Motor Ass'yMotor Ass'y
-
1-13T9-77195-0 Yoke Ass'yYoke Ass'y
-
1-23E0-77190-0 Armature assy - not for sale
, Not for SaleArmature assy - not for sale
, Not for Sale -
1-3353-77182-1 O-RingO-Ring
-
1-43E0-77192-0 Bracket Ass'yBracket Ass'y
-
1-4-13E0-77183-0 Brush - not for sale
, Not for SaleBrush - not for sale
, Not for Sale -
1-4-23E0-77191-0 Circuit breaker- - no longer available
, Not for SaleCircuit breaker- - no longer available
, Not for Sale -
1-4-33E0-77184-0 Spring brush - not for sale
, Not for SaleSpring brush - not for sale
, Not for Sale -
1-4-43E0-77193-0 Oil seal - not for sale
, Not for SaleOil seal - not for sale
, Not for Sale -
1-53E0-77189-0 Screw - not for sale
, Not for SaleScrew - not for sale
, Not for Sale -
1-63E0-77194-0 Screw - not for sale
, Not for SaleScrew - not for sale
, Not for Sale -
1-73E0-77199-0 BoltBolt
-
23E0-77365-1 Piston Rod A'ssy TiltPiston Rod A'ssy Tilt
-
2-13E0-77383-0 O-RingO-Ring
-
2-23B7-77375-0 O-RingO-Ring
-
33B7-77377-1 Free PistonFree Piston
-
3-23B7-77376-0 Back-up RingBack-up Ring
-
43E0-77390-0 Piston,trim Ass'yPiston,trim Ass'y
-
4-13B7-77392-0 O-RingO-Ring
-
4-23B7-77393-0 Back-up RingBack-up Ring
-
53E0-77395-0 Rod Guide Sub-ass'y TrimRod Guide Sub-ass'y Trim
-
5-13E0-77398-0 O-RingO-Ring
-
63E0-77430-0 PumpPump
-
6-13E0-77434-0 Filter BFilter B
-
73E0-77163-0 Coupling PumpCoupling Pump
-
83B7-77167-0 O????O????
-
93E0-77176-1 Manual ValveManual Valve
-
9-13B7-77411-0 O-RingO-Ring
-
9-23E0-77407-0 PackingPacking
-
9-33E0-77408-0 Back Up RingBack Up Ring
-
10945003-1800 C-RingC-Ring
-
113E0-77431-0 BoltBolt
-
123E0-77432-0 BoltBolt
-
133E0-77167-0 O-RingO-Ring
-
143E0-77557-0 OrificeOrifice
-
153E0-77558-0 BallBall
-
163E0-77559-0 PinPin
-
173E0-77479-0 OrificeOrifice
-
183B7-77169-0 O-RingO-Ring
-
193E0-77453-0 Valve SeatValve Seat
-
203E0-77456-0 FilterFilter
-
213E0-77472-0 PlugPlug
-
223B7-77179-0 O-RingO-Ring
-
233E0-77475-0 FilterFilter
-
243E0-77165-0 Reservoir TankReservoir Tank
-
253E0-77168-0 CapCap
-
263E0-77169-0 O-RingO-Ring
-
273E0-77159-0 Bolt
Not for SaleBolt
Not for Sale
