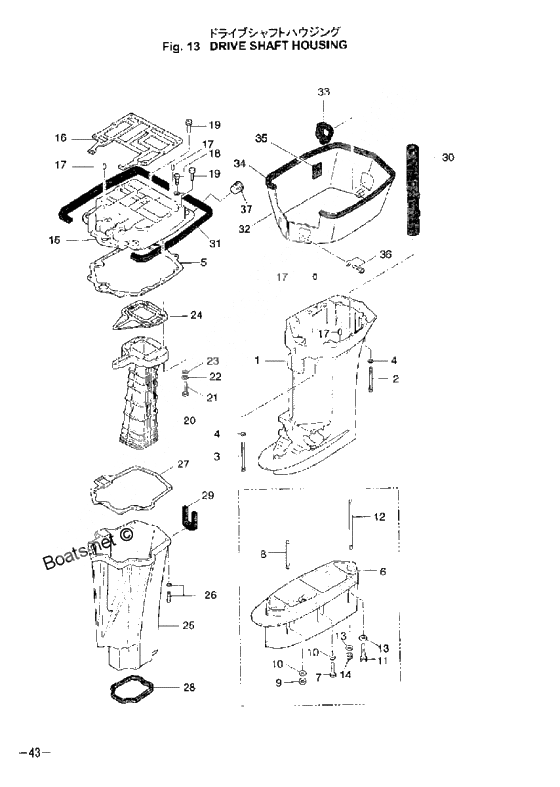

Drive shaft housing для Tohatsu MD70B - 2003 года выпуска`
-
№АртикулНазвание
-
13T9S61030-0 Кожух приводного валаКожух приводного вала
-
23B7-61017-2 Bolt, 8-105Bolt, 8-105
-
33B7-61018-1 Bolt, 8-115Bolt, 8-115
-
53B7-61012-0 New partNew part
-
63B7S61110-0 Extension housing ul
for Transom UL""Extension housing ul
for Transom UL"" -
113B7-60001-2 Bolt, 10-40
for Transom UL""Bolt, 10-40
for Transom UL"" -
123B7-61112-0 Stud Bolt
for Transom UL""Stud Bolt
for Transom UL"" -
143B7-61114-0 Nut
for Transom UL""Nut
for Transom UL"" -
153T9S01301-0 Engine baseEngine base
-
163B7-01303-0 New partNew part
-
17345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
193B7-67179-0 Drain Plug, Engine BaseDrain Plug, Engine Base
-
203B7-02311-0 Exhaust PipeExhaust Pipe
-
21910114-0635 New partNew part
-
22941303-0600 New partNew part
-
23940103-0600 Washer
or 940113-0600Washer
or 940113-0600 -
243B7-02312-0 New partNew part
-
253D8-61180-0 Exhaust HousingExhaust Housing
-
26910103-5830 Bolt
or 910113-5830Bolt
or 910113-5830 -
273B7-61181-0 New partNew part
-
283B7-61182-0 Grommet, exhaust housingGrommet, exhaust housing
-
293B7-61207-0 Grommet, Idle PortGrommet, Idle Port
-
303B7-61186-0 Reverse Gas PassageReverse Gas Passage
-
313B7-67116-0 Seal Rubber, Lower CoverSeal Rubber, Lower Cover
-
323C7S61210-1 Splash panSplash pan
-
333C7-61212-0 Grommet,splash panGrommet,splash pan
-
343E0-61213-0 Seal Rubber Splash PanSeal Rubber Splash Pan
-
353C7-61216-0 Set rubber,splash panSet rubber,splash pan
-
36910113-5612 BoltBolt
-
373H6-07257-0 Exhaust PlugExhaust Plug
