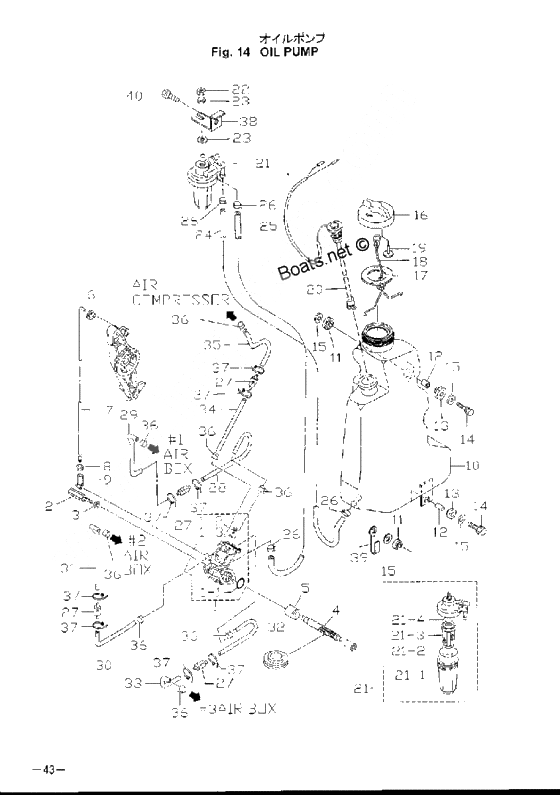

Oil pump для Tohatsu MD40A - 2003 года выпуска`
-
№АртикулНазвание
-
13T5-09000-0 Oil Pump Ass'yOil Pump Ass'y
-
1-13B7-09002-0 O-RingO-Ring
-
1-23B7-09004-0 Bolt, Air VentBolt, Air Vent
-
1-33B7-09006-0 WasherWasher
-
23C8-09050-0 Bolt oil pumpBolt oil pump
-
3941303-0600 New partNew part
-
43C8-09065-0 Driven Gear Oil PumpDriven Gear Oil Pump
-
53C8-09069-0 BushingBushing
-
63C8-63733-0 Rod Snap 5-3Rod Snap 5-3
-
73C8-09053-0 Link rod oil pumpLink rod oil pump
-
93B7-05243-0 New partNew part
-
103T5-71010-0 Oil TankOil Tank
-
113B7-06920-0 Mount Rubber, 8.5-14-2.5Mount Rubber, 8.5-14-2.5
-
12346-67114-0 Spacer 6.2-9-15.7Spacer 6.2-9-15.7
-
13346-67113-0 Mount RubberMount Rubber
-
14910103-6630 BoltBolt
-
15346-67115-0 WasherWasher
-
163C8-71015-0 Cap Oil TankCap Oil Tank
-
173C8-71016-0 Gasket 36-52-2Gasket 36-52-2
-
183C8-71017-0 Hook Tank CapHook Tank Cap
-
193C8-71018-0 Check Valve Oil TankCheck Valve Oil Tank
-
203T5-71020-0 Oil Level SensorOil Level Sensor
-
213C7-71030-0 Filter Ass'yFilter Ass'y
-
21-13B7-02237-0 CupCup
-
21-23B7-02235-0 O-Ring AO-Ring A
-
21-33C7-71033-0 FilterFilter
-
21-43B7-02236-0 O???? bO???? b
-
23940103-0800 Washer -> 940113-0800
or 940113-0800Washer -> 940113-0800
or 940113-0800 -
26121-35143-0 ClipClip
-
273B7-09075-1 Check Valve CompleteCheck Valve Complete
-
363B7-09052-0 Clip 6.8Clip 6.8
-
369-70098-2 Clip 6.8Clip 6.8
-
373T5-84398-0 Band Lead Wire 104Band Lead Wire 104
-
383T5-02239-0 Plate, FilterPlate, Filter
-
393T4-06972-0 Плата струбциныПлата струбцины
-
40910103-6614 BoltBolt
