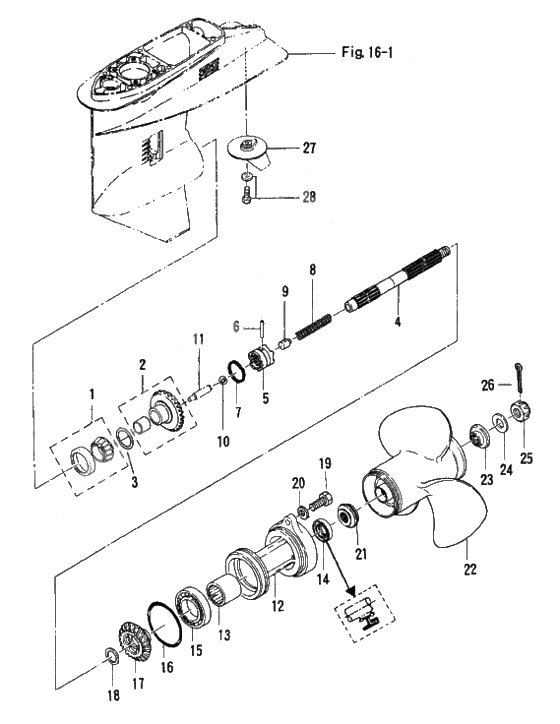

Gear case (propeller shaft) для Tohatsu M50D2 - 2003 года выпуска`
-
№АртикулНазвание
-
1345-60215-0 Taper roller bearing, 32007Taper roller bearing, 32007
-
23C8-64010-1 Bevel Gear ABevel Gear A
-
3353-64036-0 Shim, 36-44-0.3Shim, 36-44-0.3
-
3353-64037-0 Shim,36-44-0.15Shim,36-44-0.15
-
3353-64038-0 Shim,36-44-0.1Shim,36-44-0.1
-
43C8-64211-0 Propeller ShaftPropeller Shaft
-
53C8-64215-2 New part
#037940XC~New part
#037940XC~ -
63C8-64217-0 Clutch PinClutch Pin
-
73C8-64219-1 Snap, Clutch PinSnap, Clutch Pin
-
83C8-64221-0 Spring Washer
50D # 52260~ / 40D # 35242~Spring Washer
50D # 52260~ / 40D # 35242~ -
93C8-64222-0 Spring holder clutch
50D # 52260~ / 40D # 35242~Spring holder clutch
50D # 52260~ / 40D # 35242~ -
10965002-0803 Steel ball, 3/8
50D # 52260~ / 40D # 35242~Steel ball, 3/8
50D # 52260~ / 40D # 35242~ -
113C8-64223-1 Push rod, clutch
50D # 52260~ / 40D # 35242~Push rod, clutch
50D # 52260~ / 40D # 35242~ -
123C8S60101-0 Обойма гребного валаОбойма гребного вала
-
13345-60211-0 Needle Bearing 22-30-30Needle Bearing 22-30-30
-
14334-60223-0 Oil seal, 22-36-10Oil seal, 22-36-10
-
159601-0-6007 Ball bearing, 6007Ball bearing, 6007
-
16345-60103-0 O-RingO-Ring
-
173C8-64030-0 Bevel Gear CBevel Gear C
-
18345-64032-0 WasherWasher
-
193C8-60108-0 Bolt 6-25
50D # 52569~ / 40D # 35343~Bolt 6-25
50D # 52569~ / 40D # 35343~ -
20940113-0600 Washer
50D # 52569~ / 40D # 35343~Washer
50D # 52569~ / 40D # 35343~ -
213C8-64231-0 Thrust holder propellerThrust holder propeller
-
22348-64108-0 Prop 40c d-50d (11.4 dia. x 7.1 pitch) 4 bladeProp 40c d-50d (11.4 dia. x 7.1 pitch) 4 blade
-
348B64108-1 Prop 40c d-50d (11.4 dia. x 7.1 pitch) 4 bladeProp 40c d-50d (11.4 dia. x 7.1 pitch) 4 blade
-
223T5-64518-0 Propeller cs9Propeller cs9
-
223T5-64523-0 Propeller cs11Propeller cs11
-
223T5-64525-0 Proprller cs 12Proprller cs 12
-
223T5-64527-0 Propeller cs 13Propeller cs 13
-
223T5-64529-0 Propeller cs14Propeller cs14
-
223T5-64532-0 Propeller cs15Propeller cs15
-
23348-64232-0 Stopper PropellerStopper Propeller
-
24345-64124-0 WasherWasher
-
25353-64121-0 Nut PropellerNut Propeller
-
26951503-0325 Split PinSplit Pin
-
273C8-60217-1 Trim TabTrim Tab
-
28910103-5620 Bolt
OR 910113-5620Bolt
OR 910113-5620
