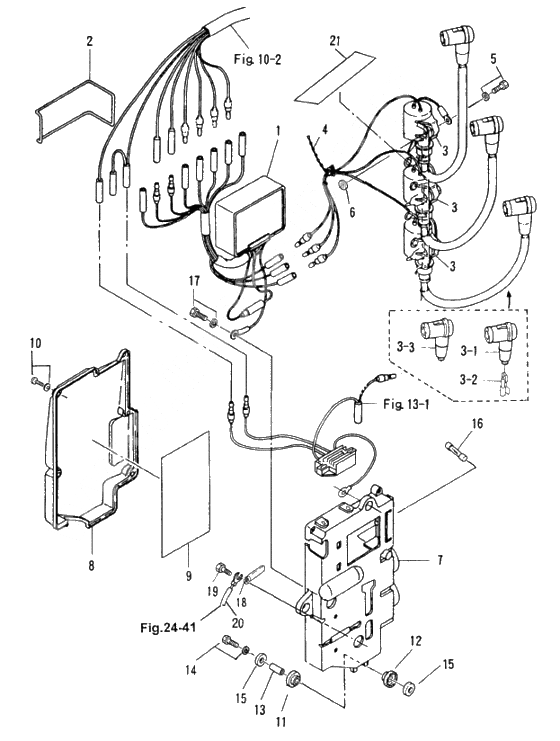

Electric parts (c.d. unit) для Tohatsu M50D2 - 2003 года выпуска`
-
№АртикулНазвание
-
13C8-06160-0 C.D. UnitC.D. Unit
-
23B7-60103-0 O-RingO-Ring
-
33C7-06040-0 Ignition CoilIgnition Coil
-
3-13M2-06921-0 Plug capPlug cap
-
3-23M2-06926-0 Terminal plug capTerminal plug cap
-
3-33C7-06921-0 Prug cap (with waterproof registance)Prug cap (with waterproof registance)
-
4336-76091-0 Band Battery CordBand Battery Cord
-
5910103-5620 Bolt
OR 910113-5620Bolt
OR 910113-5620 -
6151-33159-0 Gasket,combination gaugeGasket,combination gauge
-
73C8B06901-0 Electric bracket
50D # 50696~ / 40D # 32886~Electric bracket
50D # 50696~ / 40D # 32886~ -
83C8-06902-0 Cover electric bracketCover electric bracket
-
93C8-72028-0 Label wiring diagramLabel wiring diagram
-
10921503-5514 Stud BoltStud Bolt
-
11346-67113-0 Mount RubberMount Rubber
-
123B7-06920-0 Mount Rubber, 8.5-14-2.5Mount Rubber, 8.5-14-2.5
-
13346-67114-0 Spacer 6.2-9-15.7Spacer 6.2-9-15.7
-
14910103-6630 BoltBolt
-
15346-67115-0 WasherWasher
-
16353-76213-0 Fuse(20ah)
20AFuse(20ah)
20A -
17910403-5612 BoltBolt
-
18309-06972-0 Clamp,6.5-47.5P
E TYPEClamp,6.5-47.5P
E TYPE -
19910403-0612 Bolt
E TYPEBolt
E TYPE -
203N4-76142-0 Ground cordGround cord
-
213C8-72181-0 Caution labelCaution label
