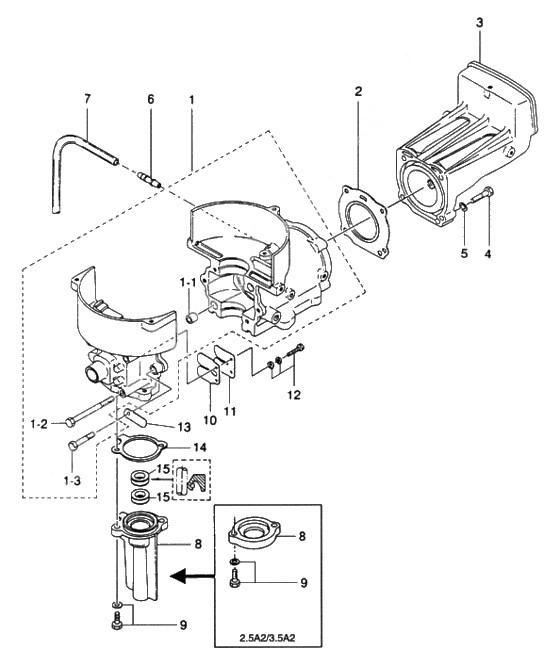

Cylinder - crank case assy. для Tohatsu M3.5B2 - 2003 года выпуска
-
№АртикулНазвание
-
13F0B01100-1 Cylinder?crank case ass'yCylinder?crank case ass'y
-
1-1345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
1-2916124-0665 BoltBolt
-
1-3910124-0630 BoltBolt
-
2309-01005-1 Gasket, Cyl. HeadGasket, Cyl. Head
-
309-01005-2 Gasket, Cyl. HeadGasket, Cyl. Head
-
3309B01001-2 Головка цилиндров
2.5A2 # 90713~Головка цилиндров
2.5A2 # 90713~ -
4916114-0630 BoltBolt
-
5940121-0600 WasherWasher
-
6393-01131-0 Drain nippleDrain nipple
-
79807-3-0150 Drain pipeDrain pipe
-
98AB-301000 Drain pipeDrain pipe
-
83F0-01210-1 Head,crank caseHead,crank case
-
9910103-5618 BoltBolt
-
10309-02111-0 Floato Valve AssyFloato Valve Assy
-
11309-02113-0 Стопорный клапанСтопорный клапан
-
12921521-7412 Stud BoltStud Bolt
-
13309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
143F0-01214-0 Gasket Crank Case HeadGasket Crank Case Head
-
153F0-01215-0 Oil seal 10.1-20-7Oil seal 10.1-20-7
