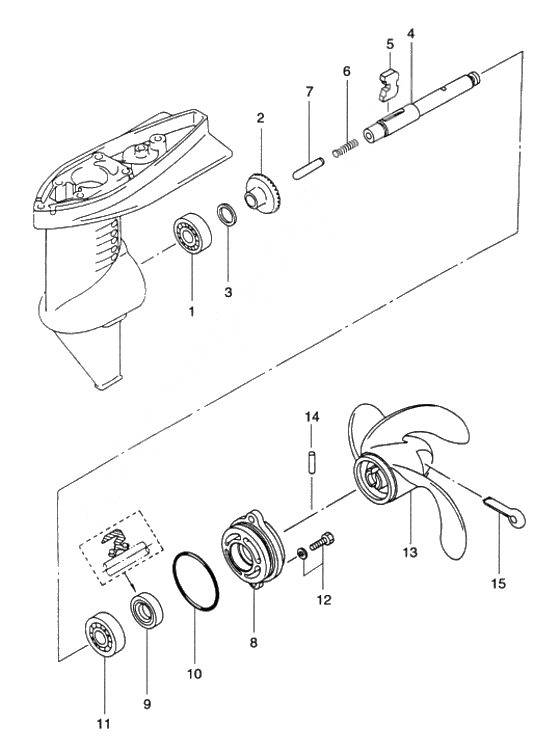

3.5b2 model only - gear case (propeller shaft) для Tohatsu M3.5A2 - 2003 года выпуска`
-
№АртикулНазвание
-
19601-0-6004 Ball Bearing
NOT FOR 2.5A2/3.5A2 MODELSBall Bearing
NOT FOR 2.5A2/3.5A2 MODELS -
2369-64010-2 Bevel Gear A Ass'y (with Bushing)
NOT FOR 2.5A2/3.5A2 MODELSBevel Gear A Ass'y (with Bushing)
NOT FOR 2.5A2/3.5A2 MODELS -
3369-64014-0 Shim 21-28-0.1
NOT FOR 2.5A2/3.5A2 MODELSShim 21-28-0.1
NOT FOR 2.5A2/3.5A2 MODELS -
3369-64015-0 Shim 21-28-0.15
NOT FOR 2.5A2/3.5A2 MODELSShim 21-28-0.15
NOT FOR 2.5A2/3.5A2 MODELS -
43F0-64211-0 Propeller Shaft
NOT FOR 2.5A2/3.5A2 MODELSPropeller Shaft
NOT FOR 2.5A2/3.5A2 MODELS -
53F0-64215-0 Clutch
NOT FOR 2.5A2/3.5A2 MODELSClutch
NOT FOR 2.5A2/3.5A2 MODELS -
63F0-64221-0 Spring Clutch
NOT FOR 2.5A2/3.5A2 MODELSSpring Clutch
NOT FOR 2.5A2/3.5A2 MODELS -
73F0-64223-0 Push Rod Clutch
NOT FOR 2.5A2/3.5A2 MODELSPush Rod Clutch
NOT FOR 2.5A2/3.5A2 MODELS -
83F0S60101-1 Housing,propeller shaft
NOT FOR 2.5A2/3.5A2 MODELSHousing,propeller shaft
NOT FOR 2.5A2/3.5A2 MODELS -
9309-60111-0 Oil Seal 12-24-8
NOT FOR 2.5A2/3.5A2 MODELSOil Seal 12-24-8
NOT FOR 2.5A2/3.5A2 MODELS -
10345-65015-0 O-Ring
NOT FOR 2.5A2/3.5A2 MODELSO-Ring
NOT FOR 2.5A2/3.5A2 MODELS -
119601-0-6001 Ball Bearing
NOT FOR 2.5A2/3.5A2 MODELSBall Bearing
NOT FOR 2.5A2/3.5A2 MODELS -
12910113-5620 Bolt
NOT FOR 2.5A2/3.5A2 MODELSBolt
NOT FOR 2.5A2/3.5A2 MODELS -
133F0-64101-0 Prop 3 blade resin (7.4 dia. x 7 pitch) plastic
NOT FOR 2.5A2/3.5A2 MODELSProp 3 blade resin (7.4 dia. x 7 pitch) plastic
NOT FOR 2.5A2/3.5A2 MODELS -
133F0-64102-0 Propeller 6 p alum-2.5a/3.5a/3.5b
NOT FOR 2.5A2/3.5A2 MODELSPropeller 6 p alum-2.5a/3.5a/3.5b
NOT FOR 2.5A2/3.5A2 MODELS -
3F0B64512-0 Propeller 6 p alum-2.5a/3.5a/3.5bPropeller 6 p alum-2.5a/3.5a/3.5b
-
13309-64106-0 Prop 3 blade resin (7.4 dia. x 5.7 pitch)
NOT FOR 2.5A2/3.5A2 MODELSProp 3 blade resin (7.4 dia. x 5.7 pitch)
NOT FOR 2.5A2/3.5A2 MODELS -
14309-64122-2 New part
NOT FOR 2.5A2/3.5A2 MODELSNew part
NOT FOR 2.5A2/3.5A2 MODELS -
14309-64126-0 Shear pin b, 4-24 (for aluminium
NOT FOR 2.5A2/3.5A2 MODELSShear pin b, 4-24 (for aluminium
NOT FOR 2.5A2/3.5A2 MODELS -
15951503-0435 New part
NOT FOR 2.5A2/3.5A2 MODELSNew part
NOT FOR 2.5A2/3.5A2 MODELS
