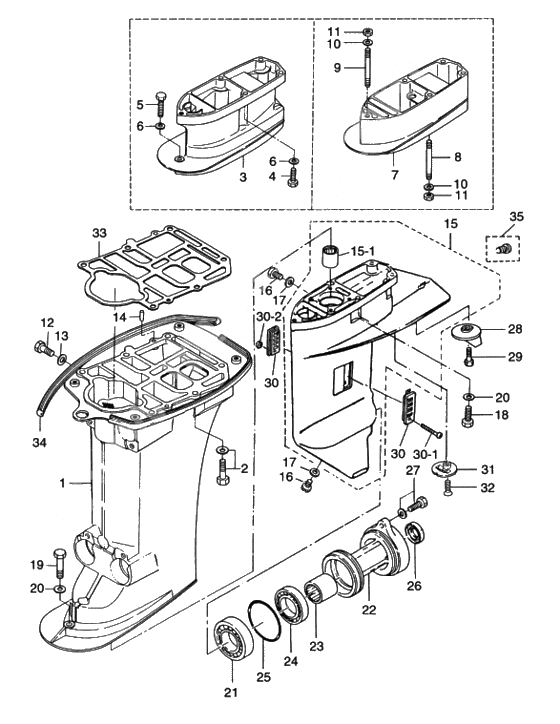

Drive shaft housing - gear case для Tohatsu M25C3 - 2003 года выпуска`
-
№АртикулНазвание
-
1346S61020-3 Drive shaft housing s
FOR TRANSOM SDrive shaft housing s
FOR TRANSOM S -
1346S61030-3 Drive shaft housing l
FOR TRANSOM L ULDrive shaft housing l
FOR TRANSOM L UL -
2910113-5840 BoltBolt
-
3346S61110-5 Extension housing ul
FOR TRANSOM ULExtension housing ul
FOR TRANSOM UL -
4916113-0835 Bolt
FOR TRANSOM ULBolt
FOR TRANSOM UL -
5916113-0845 Bolt
FOR TRANSOM ULBolt
FOR TRANSOM UL -
63P0-66233-0 New part
FOR TRANSOM ULNew part
FOR TRANSOM UL -
7346S61120-0 Extension housing ll
FOR TRANSOM LLExtension housing ll
FOR TRANSOM LL -
83A1-61111-1 Stud Bolt
FOR TRANSOM LLStud Bolt
FOR TRANSOM LL -
9346-61112-0 Stud bolt b
FOR TRANSOM LLStud bolt b
FOR TRANSOM LL -
103P0-66233-0 New part
FOR TRANSOM LLNew part
FOR TRANSOM LL -
11930113-0800 Nut
FOR TRANSOM LLNut
FOR TRANSOM LL -
12910613-0808 BoltBolt
-
13332-60006-0 Gasket (8.1x15.1)Gasket (8.1x15.1)
-
14345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
15346S60000-6 New part
30A3 # 30720~ / 25C2 # 40911~New part
30A3 # 30720~ / 25C2 # 40911~ -
15-1346-60211-0 Needle bearing, 20-27-30Needle bearing, 20-27-30
-
16332-60005-2 Oil Plug Water PlugOil Plug Water Plug
-
17332-60006-0 Gasket (8.1x15.1)Gasket (8.1x15.1)
-
18916113-0840 BoltBolt
-
19916113-0840 Bolt
FOR TRANSOM SBolt
FOR TRANSOM S -
19916113-0845 Bolt
FOR TRANSOM L ULBolt
FOR TRANSOM L UL -
203P0-66233-0 New partNew part
-
21346-60215-0 Подшипник (30205) 25x52x16,25Подшипник (30205) 25x52x16,25
-
22346S60101-5 Housing propeller shaftHousing propeller shaft
-
346Q60101-8 Housing propeller shaftHousing propeller shaft
-
23346-60102-0 Needle BearingNeedle Bearing
-
249601-0-6205 Подшипник 25x52x15Подшипник 25x52x15
-
25332-60103-0 O-RingO-Ring
-
26346-60111-0 Oil seal, 18-28-8Oil seal, 18-28-8
-
27910113-5830 BoltBolt
-
283C8-60217-1 Trim Tab
30A3 # 30720~ 25C2 # 40911~Trim Tab
30A3 # 30720~ 25C2 # 40911~ -
29910103-5620 BoltBolt
-
303A1-60235-0 Water Strainer SetWater Strainer Set
-
30-1921513-0430 Stud BoltStud Bolt
-
30-2930406-0400 Nylon NutNylon Nut
-
31369-60206-0 Water StrainerWater Strainer
-
32920813-0620 Stud Bolt
OR 921803-0620Stud Bolt
OR 921803-0620 -
33346-01303-0 Gasket engine baseGasket engine base
-
34346-67116-0 Seal rubber motor cover lowerSeal rubber motor cover lower
-
35346-60984-0 Plug Sub Water Pipe
OPTIONPlug Sub Water Pipe
OPTION
