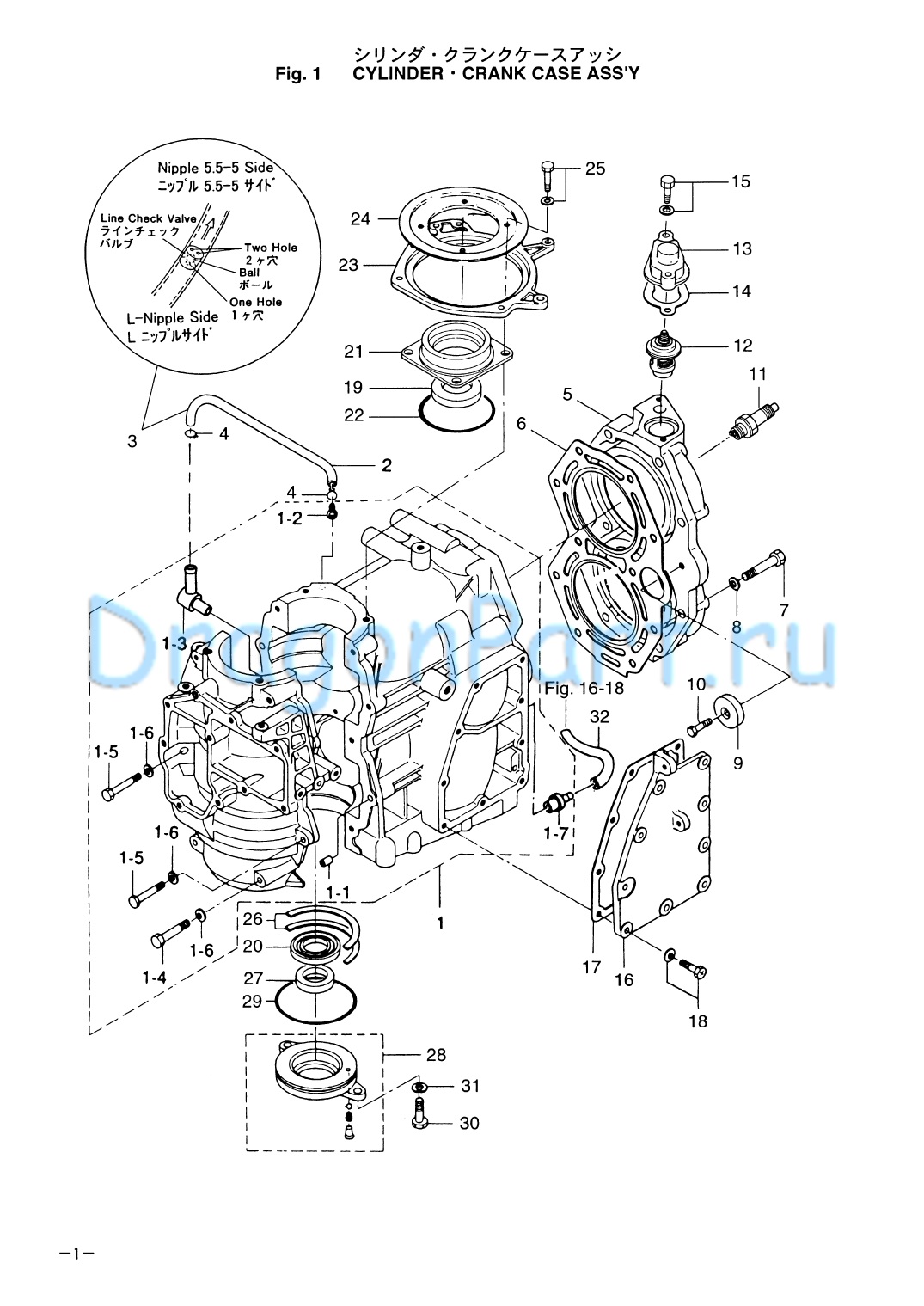

CYLINDER CRANK CASE ASS`Y для Tohatsu M25C3 - 2003 года выпуска`
-
№АртикулНазвание
-
1346B01100-4 Cylinder, Crank Case
30A4 # 38568〜 25C3 # 57329〜Cylinder, Crank Case
30A4 # 38568〜 25C3 # 57329〜 -
1-1336-01111-0 * Knock, 8.65-11.5-12.7* Knock, 8.65-11.5-12.7
-
1-2393-01131-0 * Nipple, 5.5-5
30A4 # 38568〜 2503 # 57329〜* Nipple, 5.5-5
30A4 # 38568〜 2503 # 57329〜 -
1-3393-01137-0 * L-Nipple (New)
30A4 # 38568〜 2503 # 57329〜* L-Nipple (New)
30A4 # 38568〜 2503 # 57329〜 -
1-33B2-01160-0 * Check Valve Nipple (Old)
30A4 38567 25C3 -# 57328* Check Valve Nipple (Old)
30A4 38567 25C3 -# 57328 -
1-4916124-0845 * Bolt* Bolt
-
1-5916124-0840 * Bolt* Bolt
-
1-6940121-0800 * Washer* Washer
-
1-7346-01137-0 * Nipple, 7~7* Nipple, 7~7
-
298AL-4-0220 Lubrication Pipe
30A4 # 38568〜 25C3 # 57329〜Lubrication Pipe
30A4 # 38568〜 25C3 # 57329〜 -
3393-01160-0 Line Check Valve
30A4 # 38568〜 25C3 # 57329〜Line Check Valve
30A4 # 38568〜 25C3 # 57329〜 -
43T5-01133-0 Clip, ¢8Clip, ¢8
-
53A1B01001-0 Cylinder Head
30A3# 21031-25C2 # 27906〜Cylinder Head
30A3# 21031-25C2 # 27906〜 -
6346-01005-0 Gasket, Cylinder HeadGasket, Cylinder Head
-
7916119-0845 BoltBolt
-
8345-01015-0 Washer, 8.5-19.5-3.2Washer, 8.5-19.5-3.2
-
9338-60218-2 AnodeAnode
-
10910103-0616 Bolt
or 910113-0616Bolt
or 910113-0616 -
119701-1-1005 Spark Plug
NGK B7HS-10Spark Plug
NGK B7HS-10 -
119701-1-1015 Spark Plug (with Resistance)
NGK BR7HS-10Spark Plug (with Resistance)
NGK BR7HS-10 -
12345-01030-0 ThermostatThermostat
-
133H6B01031-0 Cap, ThermostatCap, Thermostat
-
14346-01032-0 Gasket, Thermostat CapGasket, Thermostat Cap
-
15910114-5630 BoltBolt
-
16346B02301-0 Exhaust CoverExhaust Cover
-
17346-02305-0 Gasket, Exhaust CoverGasket, Exhaust Cover
-
18910411-6518 BoltBolt
-
19126-00121-0 Oil Seal, 30-45-8Oil Seal, 30-45-8
-
20346-00122-0 Oil Seal, 24-40-8Oil Seal, 24-40-8
-
21345-01401-0 Magneto BaseMagneto Base
-
22338-01403-0 O-Ring, 2-55.5O-Ring, 2-55.5
-
23353-63723-1 Set RingSet Ring
-
24346-63722-2 Guide PlateGuide Plate
-
25910121-6620 BoltBolt
-
26346-00115-0 Thrust Plate, Crank ShaftThrust Plate, Crank Shaft
-
27346-01215-0 Oil Seal, 16-28-6Oil Seal, 16-28-6
-
28346-01210-0 Head, Crank CaseHead, Crank Case
-
29346-01216-0 O-Ring, 1.7-59O-Ring, 1.7-59
-
30910114-0616 BoltBolt
-
31941303-0600 Spring WasherSpring Washer
-
3298AB-5-0250 Pipe, Water NipplePipe, Water Nipple
