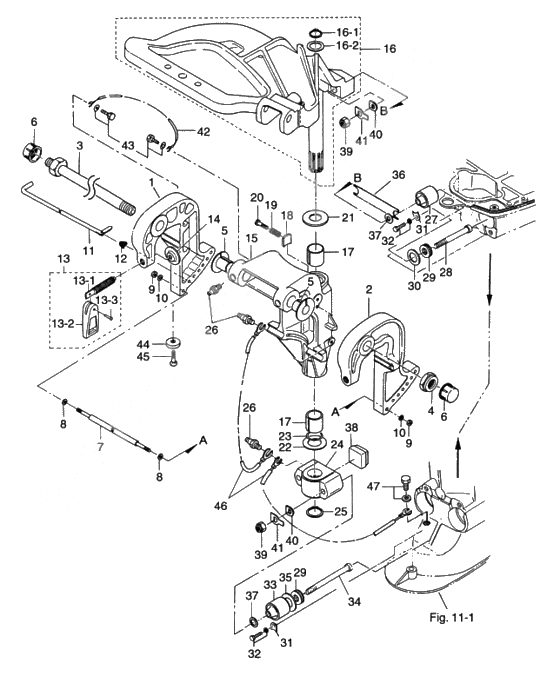

Bracket (for serial # : 25c2 #42833~ / 30a3 #31959~) для Tohatsu M25C3 - 2003 года выпуска`
-
№АртикулНазвание
-
1349S62112-0 Stern braket r
STARBOARDStern braket r
STARBOARD -
2349S62113-0 Stern braket l
PORTStern braket l
PORT -
3346-62191-0 Bracket Bolt Ass'y
30A3 # 29854~ / 25C2 # 38993~Bracket Bolt Ass'y
30A3 # 29854~ / 25C2 # 38993~ -
4346-62124-0 Bracket Nut(Nylon)Bracket Nut(Nylon)
-
5349-62126-0 Bushing, Bracket BoltBushing, Bracket Bolt
-
6346-62127-0 Cap,Bracket BoltCap,Bracket Bolt
-
7346-62117-1 Distance PieceDistance Piece
-
8940113-0600 WasherWasher
-
9930113-0600 NutNut
-
10940113-0600 WasherWasher
-
11345-62121-1 Thrust RodThrust Rod
-
12345-62122-2 Spring Thrust RodSpring Thrust Rod
-
133M3S62100-0 Clamp screw kitClamp screw kit
-
3V1Q62105-0 Clamp screw kitClamp screw kit
-
13-1398-62103-0 Винт струбциныВинт струбцины
-
13-2332S62102-1 Handle clamp screwHandle clamp screw
-
13-33C8-62104-1 Rivet3-22Rivet3-22
-
14332-62101-0 Pad clamp screwPad clamp screw
-
15349S62310-2 Поворотный кронштейн
30A3 # 34436~ / 25C2 # 48728~Поворотный кронштейн
30A3 # 34436~ / 25C2 # 48728~ -
16346S62010-0 Steering shaft ass'ySteering shaft ass'y
-
16-1945103-2200 ClipClip
-
16-2346-62412-1 WasherWasher
-
17345-62417-0 Bushing Steering ShaftBushing Steering Shaft
-
18345-62441-0 Friction PlateFriction Plate
-
19346-62421-1 Spring Friction PlateSpring Friction Plate
-
20910103-0830 New part
OR 910113-0830New part
OR 910113-0830 -
213A0-62423-2 Upper Thrust Plate
30A3 # 34436~ / 25C2 # 48728~Upper Thrust Plate
30A3 # 34436~ / 25C2 # 48728~ -
22346-62424-1 Trust Plate LowerTrust Plate Lower
-
24346S61411-2 Mount bracketMount bracket
-
25945103-2500 ClipClip
-
26344-67177-0 МасленкаМасленка
-
27346-61301-0 Mount rubber upperMount rubber upper
-
28346-61307-2 Bolt mount rubber upperBolt mount rubber upper
-
29346-61333-0 Damper plateDamper plate
-
30346-61335-0 Lock plate upperLock plate upper
-
31346-61312-1 Retainer mount rubberRetainer mount rubber
-
32910113-5820 BoltBolt
-
33346-61302-0 Lower Mount RubberLower Mount Rubber
-
34346-61321-2 Bolt rubber mount lowerBolt rubber mount lower
-
35346-61334-0 Lock plate lowerLock plate lower
-
36346-61337-0 Damper rubber upperDamper rubber upper
-
37940113-1000 WasherWasher
-
38346-61336-0 Damper rubber lowerDamper rubber lower
-
39930103-1000 NutNut
-
40345-61322-2 Washer Rubber Mount BWasher Rubber Mount B
-
41346-61323-0 Lock plate mount rubberLock plate mount rubber
-
423C8-62158-0 Ground WireGround Wire
-
43910113-5612 BoltBolt
-
44338-60218-2 New partNew part
-
45910113-5620 BoltBolt
-
463A3-62396-0 New partNew part
-
47910113-5610 BoltBolt
