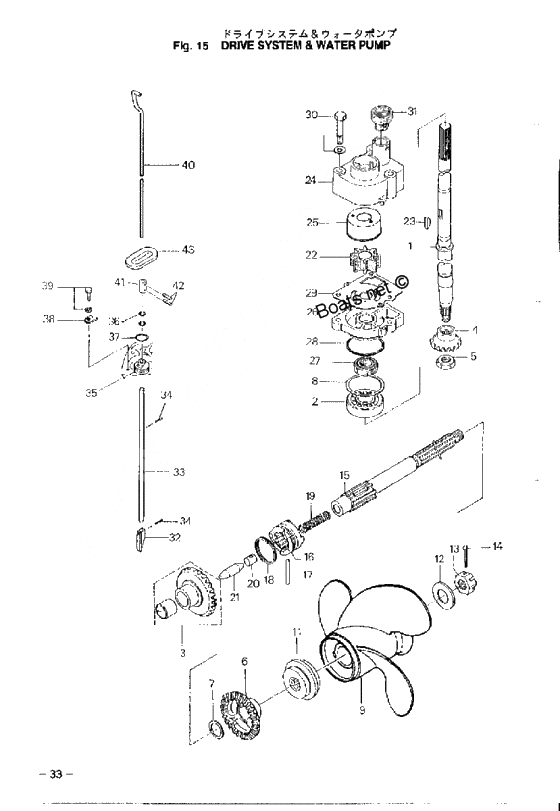

Drive system & water pump для Tohatsu MFS9.9B - 2002 года выпуска`

№

Артикул

Название
1

3H8-64301-0 Drive Shaft S
Short

Drive Shaft S
Short

32 610 ₽
1

3H8-64302-0 Drive shaft l
Long

Drive shaft l
Long

20 740 ₽
2

9601-0-6302 Ball Bearing

Ball Bearing

2 550 ₽
3

3H8-64010-0 Bevel Gear A

Bevel Gear A

20 130 ₽
4

3H8-64020-0 Bevel Gear B

Bevel Gear B

25 070 ₽
5

346-64027-1 Nut, Bevel Gear B

Nut, Bevel Gear B

1 850 ₽
6

3H8-64030-0 Bevel Gear C

Bevel Gear C

12 240 ₽
7

350-64032-0 Washer

Washer

960 ₽
8

346-64083-0 Shim, 35-41.9-0.3

Shim, 35-41.9-0.3

900 ₽
8

346-64084-0 Shim, 35-41.9-0.5

Shim, 35-41.9-0.5

950 ₽
8

346-64081-0 Shim, 35-41.9-0.1

Shim, 35-41.9-0.1

620 ₽
8

346-64082-0 Shim, 35-41.9-0.15

Shim, 35-41.9-0.15

950 ₽
9

362-64108-0 Prop 9.9 15 18 20 hp (9.25 dia. x 10.0 pitch)

Prop 9.9 15 18 20 hp (9.25 dia. x 10.0 pitch)

14 280 ₽
362B64108-0 Prop 9.9 15 18 20 hp (9.25 dia. x 10.0 pitch)

Prop 9.9 15 18 20 hp (9.25 dia. x 10.0 pitch)

28 180 ₽
9

362-64102-0 Prop 9.9 15 18 20 hp (9.2 dia. x 9.0 pitch)

Prop 9.9 15 18 20 hp (9.2 dia. x 9.0 pitch)

14 280 ₽
362B64101-0 Prop 9.9 15 18 20 hp (9.2 dia. x 9.0 pitch)

Prop 9.9 15 18 20 hp (9.2 dia. x 9.0 pitch)

16 430 ₽
9

362-64107-0 Prop 9.9 15 18 20 hp (9.2 dia. x 6.9 pitch) black

Prop 9.9 15 18 20 hp (9.2 dia. x 6.9 pitch) black

14 280 ₽
362B64105-0 Prop 9.9 15 18 20 hp (9.2 dia. x 6.9 pitch) black

Prop 9.9 15 18 20 hp (9.2 dia. x 6.9 pitch) black

56 680 ₽
9

362-64101-0 Prop 9.9 15 18 20 hp (9.2 dia. x 9.0 pitch)
STD, 15B L""

Prop 9.9 15 18 20 hp (9.2 dia. x 9.0 pitch)
STD, 15B L""

14 280 ₽
362B64101-0 Prop 9.9 15 18 20 hp (9.2 dia. x 9.0 pitch)

Prop 9.9 15 18 20 hp (9.2 dia. x 9.0 pitch)

16 430 ₽
9

362-64105-0 Prop 9.9 15 18 20 hp (9.2 dia. x 6.9 pitch) black

Prop 9.9 15 18 20 hp (9.2 dia. x 6.9 pitch) black

14 280 ₽
362B64105-0 Prop 9.9 15 18 20 hp (9.2 dia. x 6.9 pitch) black

Prop 9.9 15 18 20 hp (9.2 dia. x 6.9 pitch) black

56 680 ₽
9

362-64103-0 Prop 9.9 15 18 20 hp (9.2 dia. x 7.8 pitch)

Prop 9.9 15 18 20 hp (9.2 dia. x 7.8 pitch)

14 280 ₽
362B64103-0 Prop 9.9 15 18 20 hp (9.2 dia. x 7.8 pitch)

Prop 9.9 15 18 20 hp (9.2 dia. x 7.8 pitch)

28 180 ₽
11

362-64231-0 Thrust Holder

Thrust Holder

3 220 ₽
12

346-64124-5 Washer

Washer

670 ₽
13

346-64121-5 ナット、プロペラ

ナット、プロペラ

1 470 ₽
14

951503-0322 Split pin, 3-22

Split pin, 3-22

270 ₽
15

362-64211-0 Propeller Shaft

Propeller Shaft

13 830 ₽
16

362-64215-0 Clutch

Clutch

6 770 ₽
17

350-64218-0 Clutch Pin

Clutch Pin

540 ₽
18

350-64219-0 Snap Clutch

Snap Clutch

360 ₽
19

332-64221-0 New part

New part

630 ₽
20

350-64222-0 New part

New part

790 ₽
21

350-64223-1 Push Rod Clutch

Push Rod Clutch

1 880 ₽
22

334-65021-0 Крыльчатка водной помпы

Крыльчатка водной помпы

3 600 ₽
23

350-65022-0 New part

New part

490 ₽
24

350-65016-1 New part

New part

3 450 ₽
25

350-65011-1 New part

New part

1 070 ₽
26

350-65017-0 Water pump case lower

Water pump case lower

1 400 ₽
27

332-60223-0 Oil Seal

Oil Seal

930 ₽
28

336-62415-0 O-Ring

O-Ring

410 ₽
29

350-65025-0 New part

New part

620 ₽
31

350-65014-0 New part

New part

630 ₽
32

3C8-66011-0 Clutch Cam

Clutch Cam

4 110 ₽
33

3H8-66012-0 Cam rod s
Short

Cam rod s
Short

940 ₽
33

3H8-66013-0 Cam rod l""
Long

Cam rod l""
Long

1 380 ₽
34

951407-0312 Spring Washer

Spring Washer

210 ₽
35

398-66031-0 Bushing Cam Rod

Bushing Cam Rod

2 440 ₽
36

332-66021-0 O-Ring

O-Ring

360 ₽
38

332-66033-0 Retainer Cam Shift

Retainer Cam Shift

110 ₽
39

910103-6512 Bolt

Bolt

120 ₽
40

3H8-66215-0 Shift Rod

Shift Rod

1 560 ₽
41

3C8-66241-0 Joint Shift Rod

Joint Shift Rod

630 ₽
42

951403-0312 Spring Washer

Spring Washer

300 ₽
43

3R3-66226-0 Grommet, Shift Rod

Grommet, Shift Rod

280 ₽
